Description

  IS802F series are unmanaged full Gigabit PoE switch modules independently developed by HUASIFEI, with two full Gigabit adaptive electrical ports and two Gigabit adaptive electrical ports. The 3-4 ports support IEEE 802.3af/at standard PoE power supply, and the single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the powered devices that meet the standard, and supply power to them through the network cable. Through the network cable for wireless AP, network cameras, network telephone, visual intelligent building intercom and other POE terminal equipment power supply, to meet the demand for high-density PoE power supply network environment, suitable for hotels, campuses, parks, scenic spots, supermarkets, factories, dormitories and small and medium-sized enterprises to set up cost-effective network. Non-network management model, plug and play, no configuration, easy to use

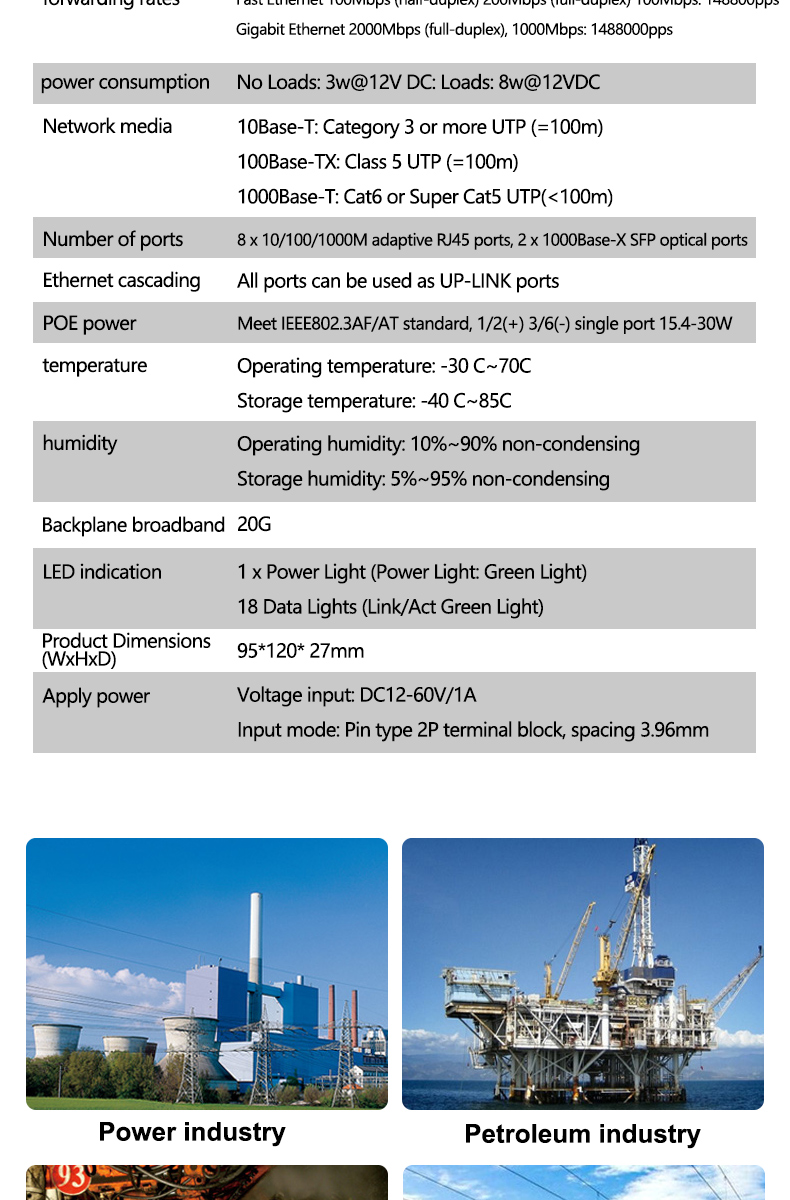

Key Features

• Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af/at standards.
• 8 10/100/1000 Base-T Ethernet ports (Data/Power), 2 100/1000Base-X SFP optical ports.
• 8K MAC address capacity with automatic MAC address learning.
• 20 Gbps non-blocking line-speed forwarding backplane bandwidth.

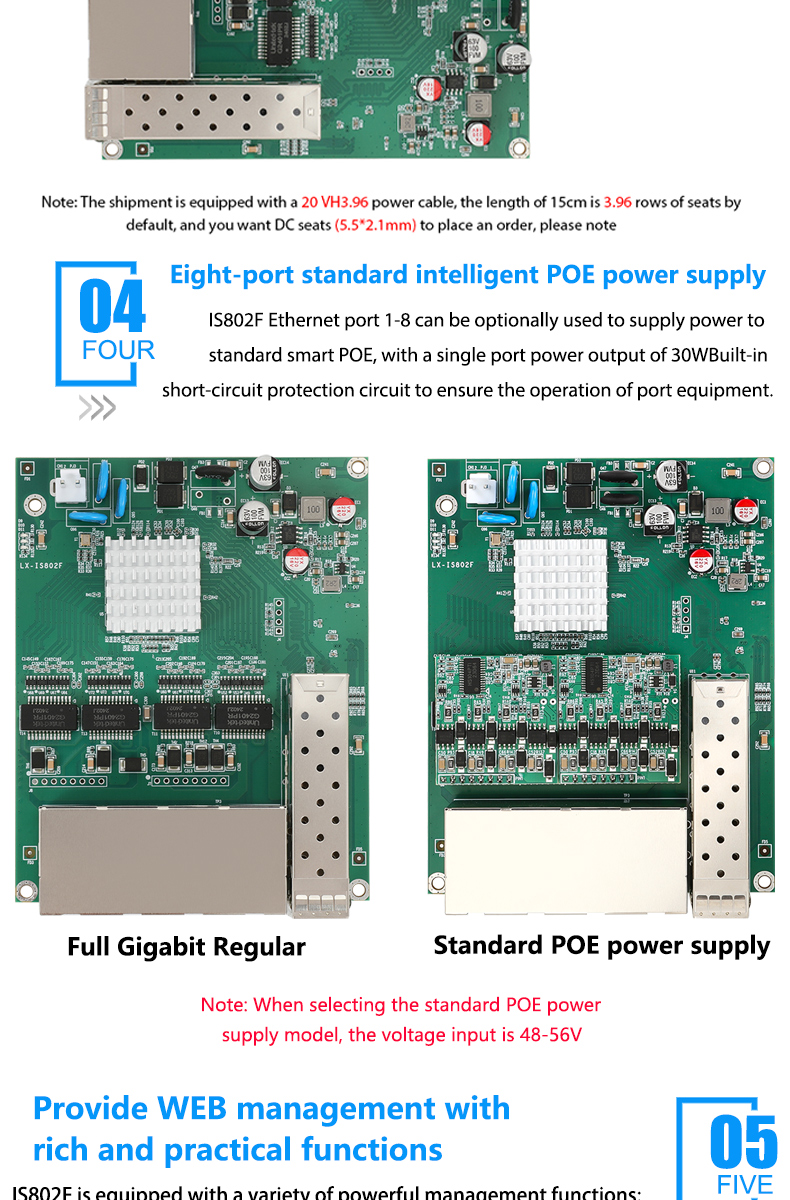

• Optional standard PoE power supply, with a maximum single PoE port output power of 30 W.

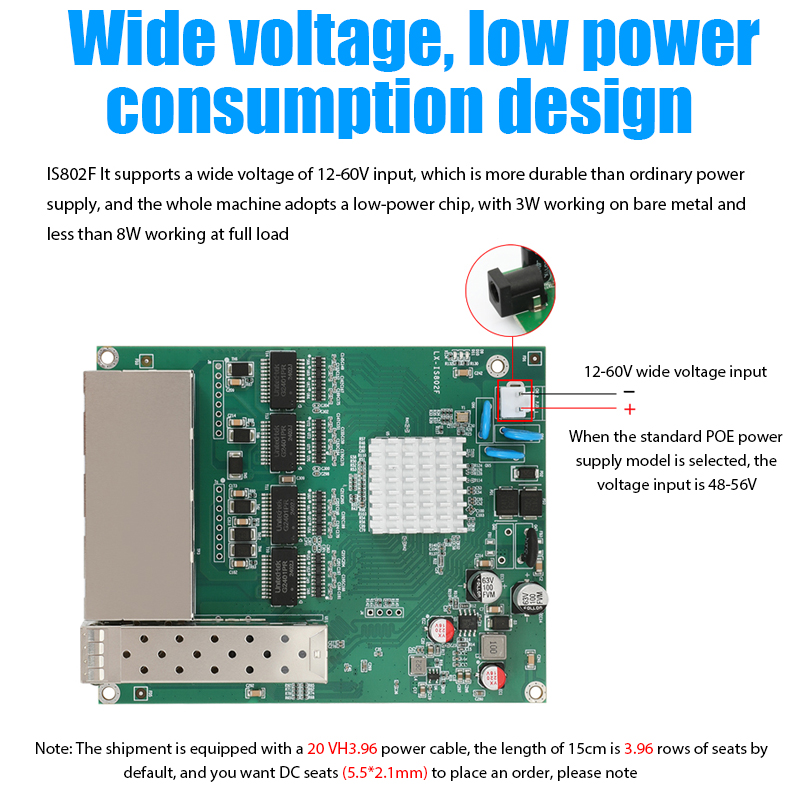

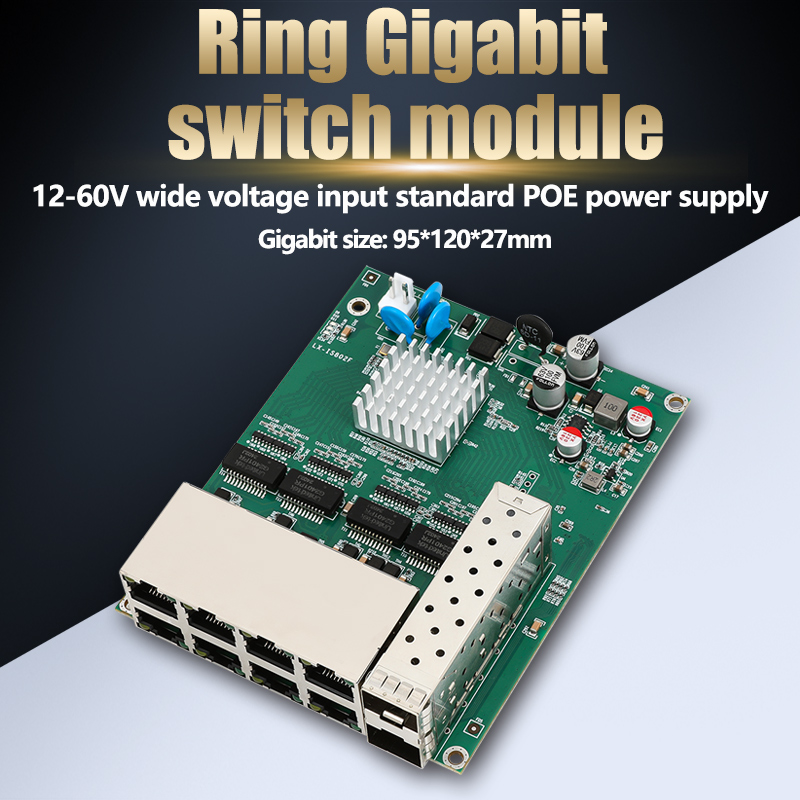

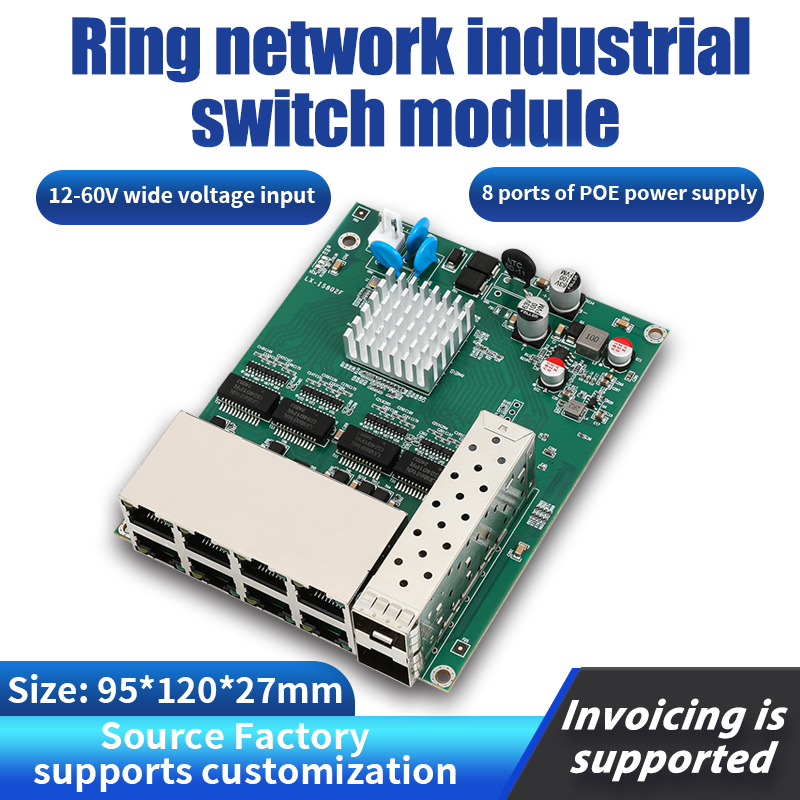

• External power supply DC 12-60V; standard PoE power supply requires 48-56V.

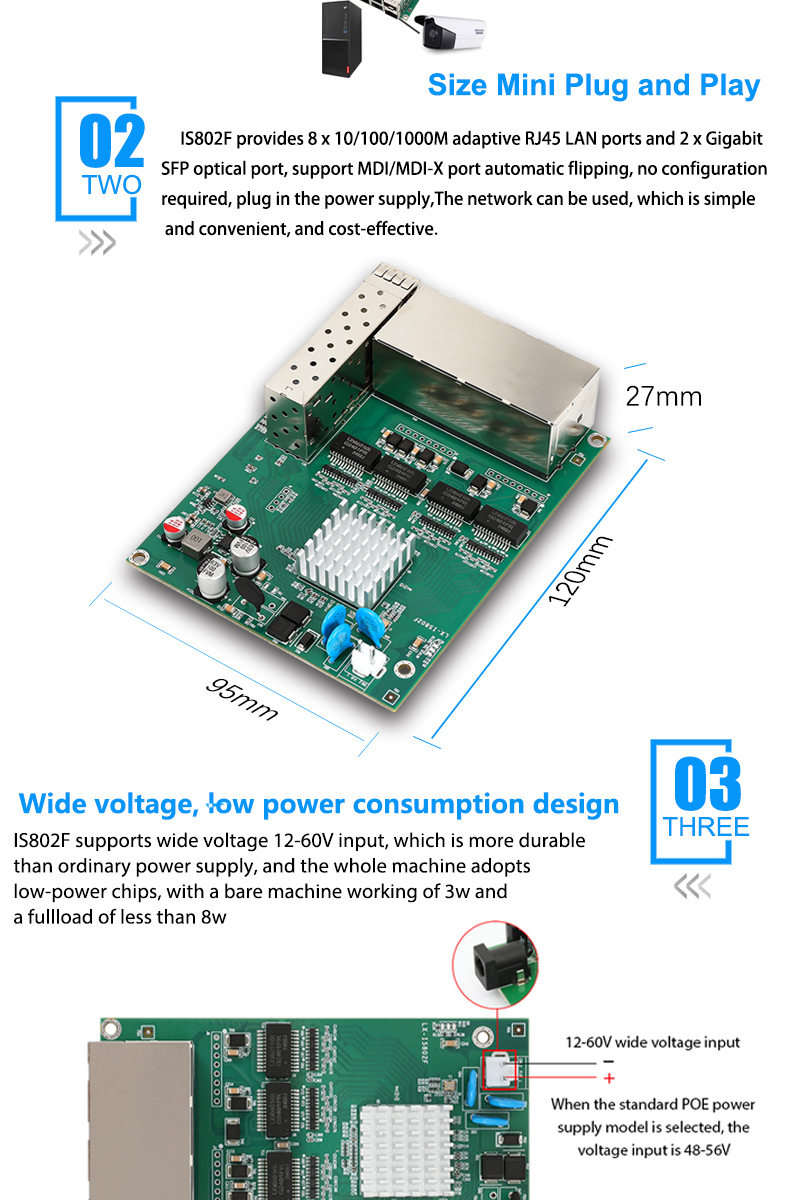

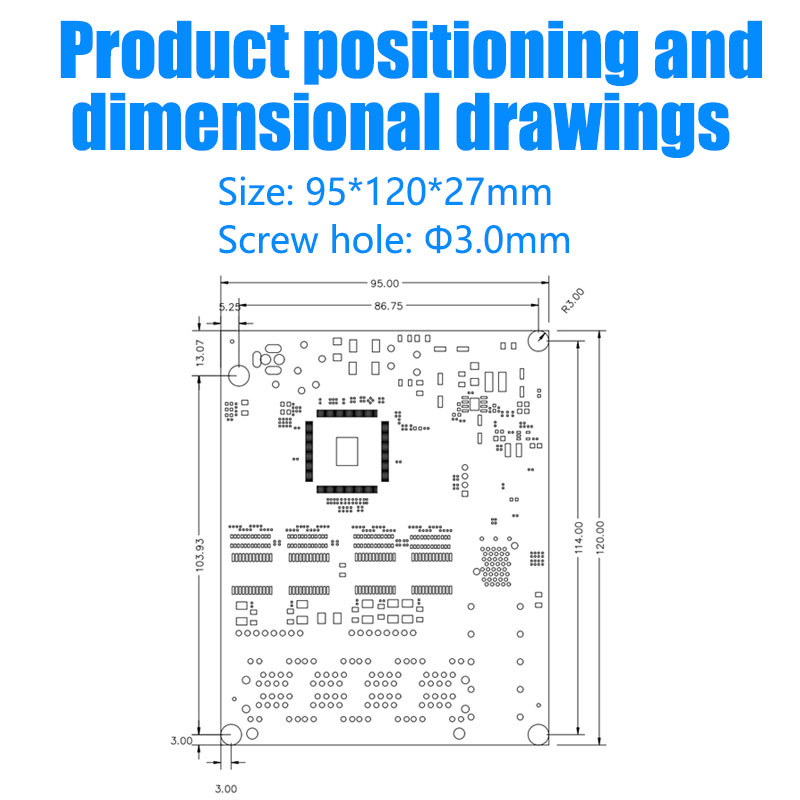

• Module PCBA dimensions: 95*120*27mm.
