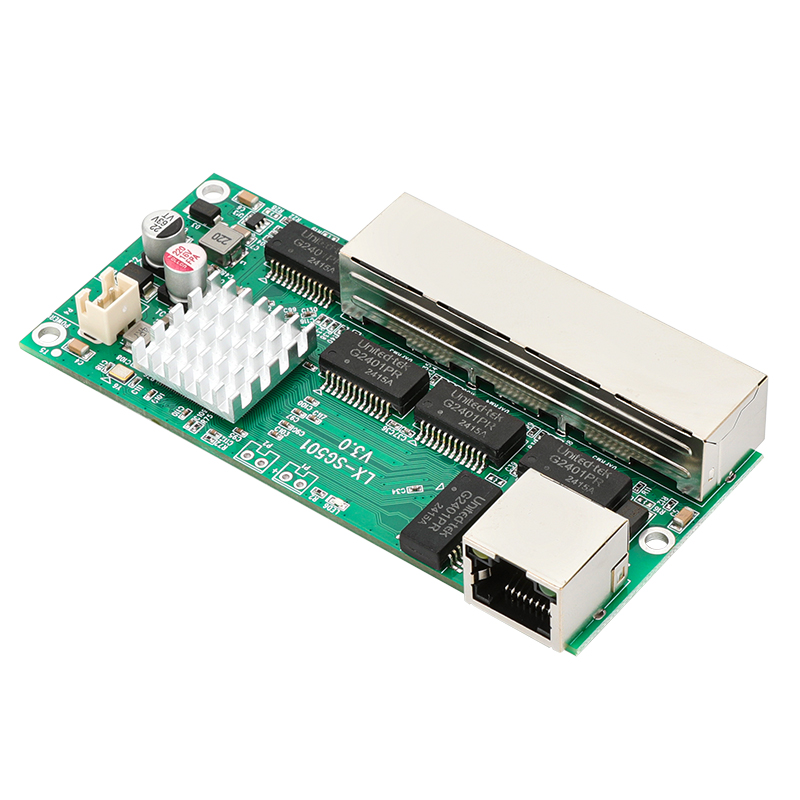

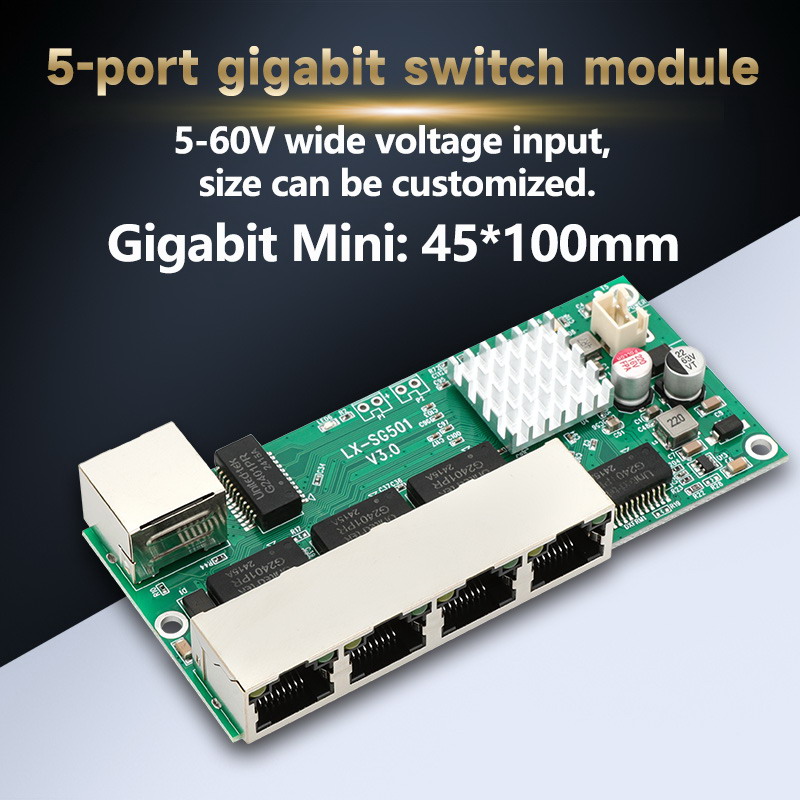

Description

SG501 series is the unmanaged full Gigabit switch module developed by HUASIFEI, with 5 full Gigabit adaptive ports. 1-4 ports can support non-standard 5-52V PoE power supply, single port PoE power up to 30W, the maximum PoE output power is 130W. The 1-4 ports can support non-standard 5-52V PoE power supply, single-port PoE power up to 30W, and the maximum PoE output power of the whole machine is 130W, which can meet the requirements of non-standard PoE power supply for building intercom system, teleconferencing system, and visualization indoor unit, etc. (45+78-) wire sequence power supply, saving initial cost.

(45+78-) wire sequence power supply, saving the initial project cost. Suitable for hotels, campuses, parks, scenic spots, supermarkets, factory dormitories and small and medium-sized enterprises to form a cost-effective network.

Key Features

Complies with IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3x standards.
5 10/100/1000 Base-T Ethernet ports (Data/Power).
4K MAC address and MAC address auto-learning.
10 Gbps non-blocking wire-speed forwarding backplane bandwidth.

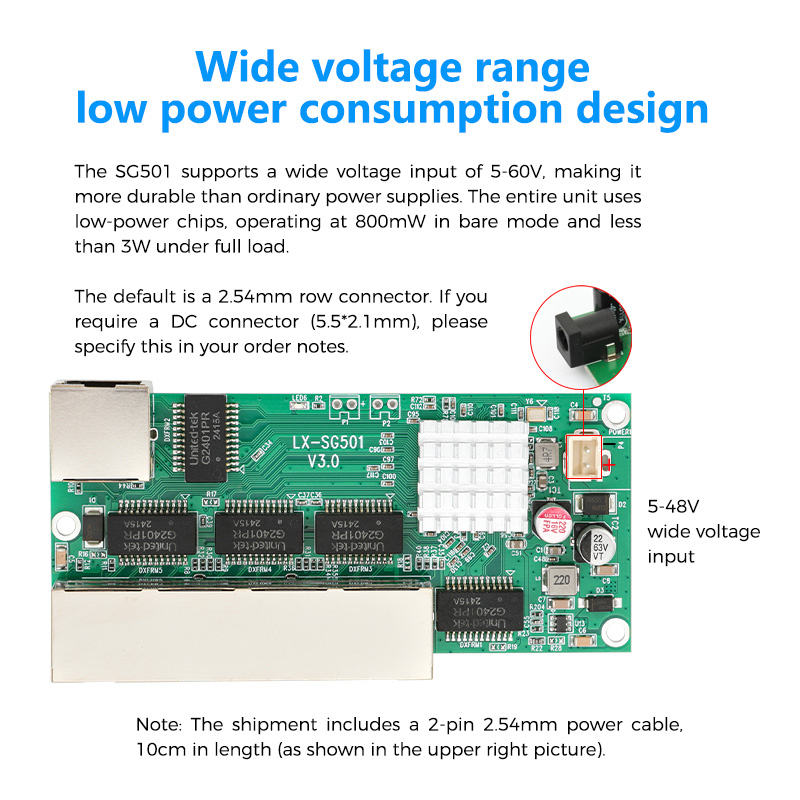

External power supply DC5-60V.

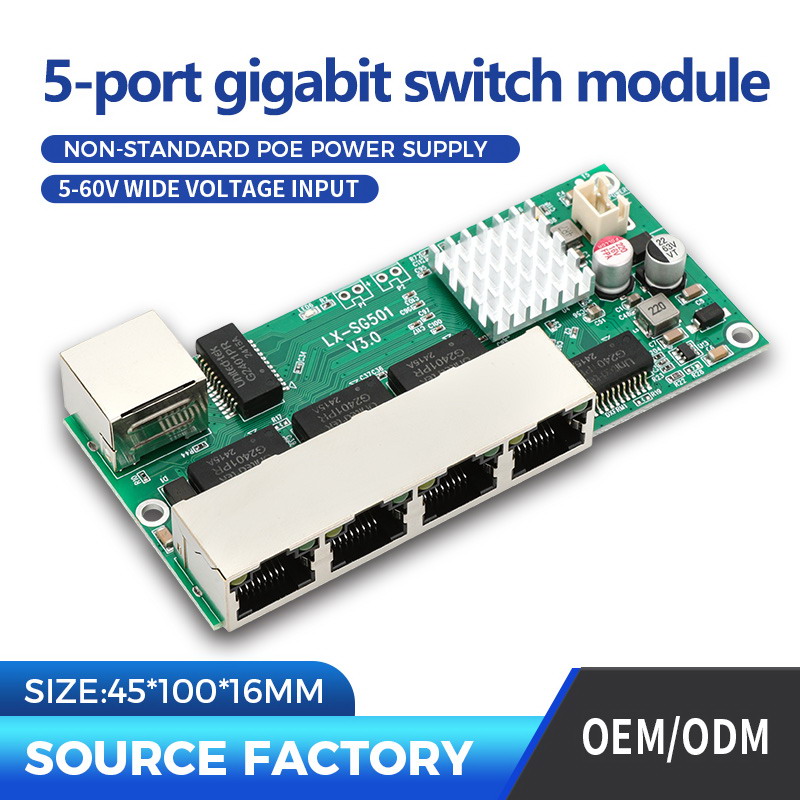

Module PCBA Size: 45*100*16mm.

Product Characteristics

Full Gigabit access, Gigabit uplink

Supports Gigabit Ethernet ports for flexible networking to meet various scenarios; all ports support non-blocking wire-speed forwarding for smoother transmission. Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

Optional intelligent PoE power supply function

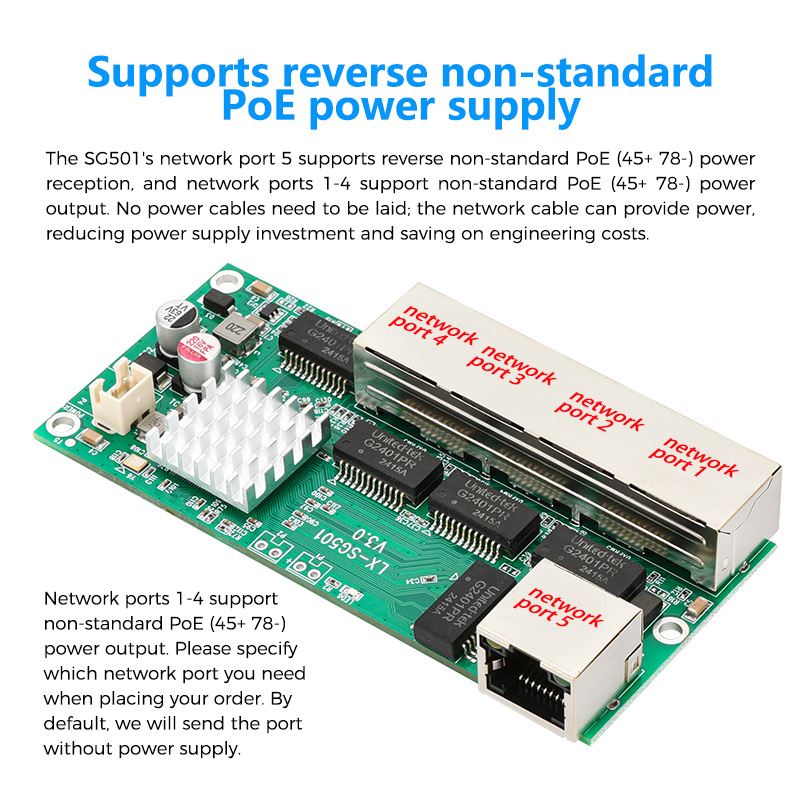

4*10/100/1000Base-T RJ45 ports support non-standard POE power supply, can output power supply 5-52V, to meet the building intercom systems, teleconferencing systems, visualization of indoor machines and other scenarios of non-standard PoE power needs. Single port Maximum PoE output power is 30W, (45+78-) wiring sequence power supply, saving the initial project cost.

Plug and play without configuration

Supports 10/100/1000M adaptive RJ45, each port supports MDI/MDIX adaptive function, full wire-speed Gigabit switching capability, plug-and-play, no management required to ensure that all ports are forwarded without blocking. Users can easily know the working status of the device through the power indicator (PWR), port status indicator (Link,L/A), PoE working indicator.

Cache data without loss

Adopts store-and-forward mode, provides 10Gbps backplane bandwidth, and high-capacity cache, which effectively reduces data forwarding delay and improves forwarding efficiency to avoid data loss.

Specification

Product Specification
Product Model	SG501 SG501-Non-Standard POE
Fixed Port	4 10/100/1000Base-T electrical ports (Data) 1 10/100/1000Base-T uplink electrical port (Data)
POE Port	Ports 1-4 support 45+78-non-standard PoE power supply
network protocol	IEEE802.310BASE-T;IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x
Port Characteristics	10/100/1000Base-T auto-detect, full/half duplex MDI/MDI-X adaptive
Forwarding Mode	Store-and-forward (full wire speed)
Backplane Bandwidth	10Gbps (non-blocking)
forwarding rate	10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or laterUTP(≤100 meter)
Packet Forwarding Rate @ 64byte	9.42Mpps
MAC Address Table	4K
twisted-pair transmission	10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or laterUTP(≤100 meter)
Maximum Single Port/Average Power	(DC5-60V) 15.4W-30W(DC5-60V)
Power Supply Pins	Support non-standard 4/5(+),7/8(-),4-cell power supply
Overall Power Consumption	Standby power consumption:< 1W; Full load power consumption:< 3W POE:Standby power consumption:< 10W; Full load power consumption:< 120W
LED Indicator	Power indicator light: PWR (green); Network indicator light: Link, Link/ACT (yellow); POE indicator light: PoE (green)

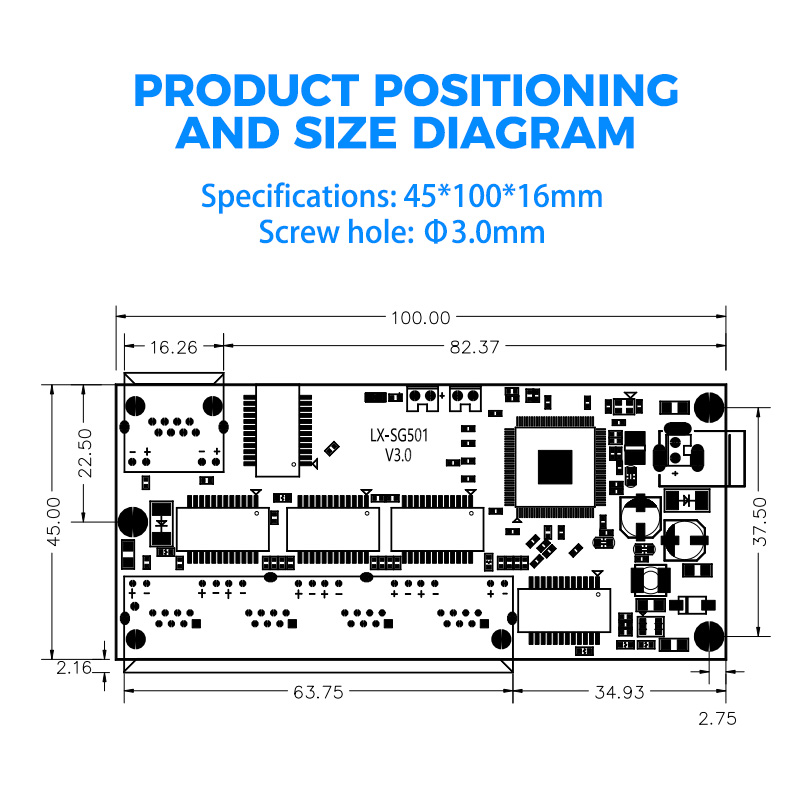

Appearance dimensions (L * W * H)	4510016mm
Net weight/Gross weight	<43g/<45g <43g/<45g
work environment
Working humidity	10% -90% RH (non condensing)
working temperature	-40℃-85℃
Storage humidity	10% -90% RH (non condensing)
Storage temperature	-40℃-85℃
