Description

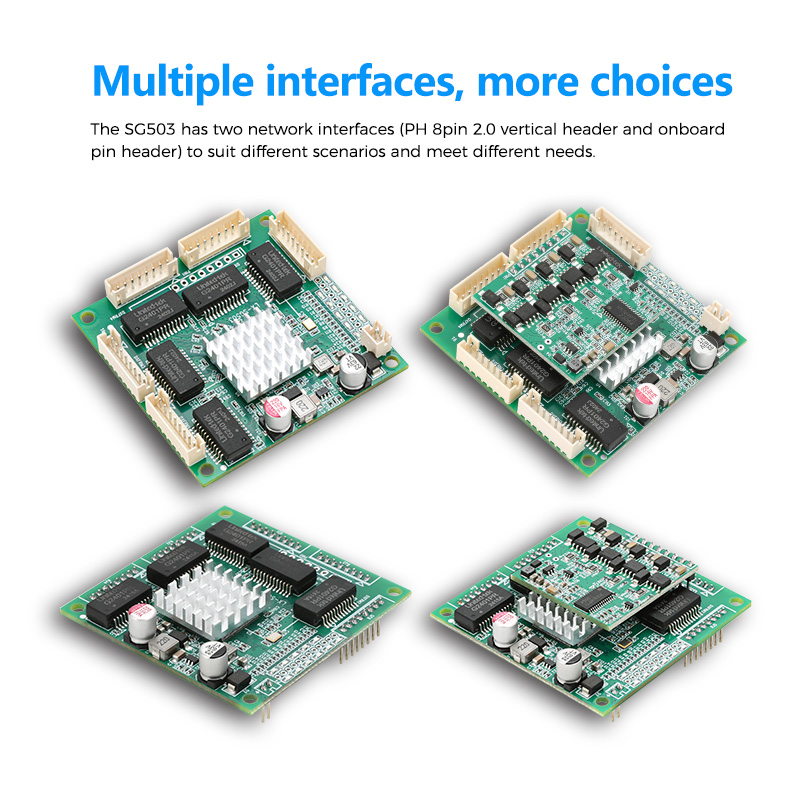

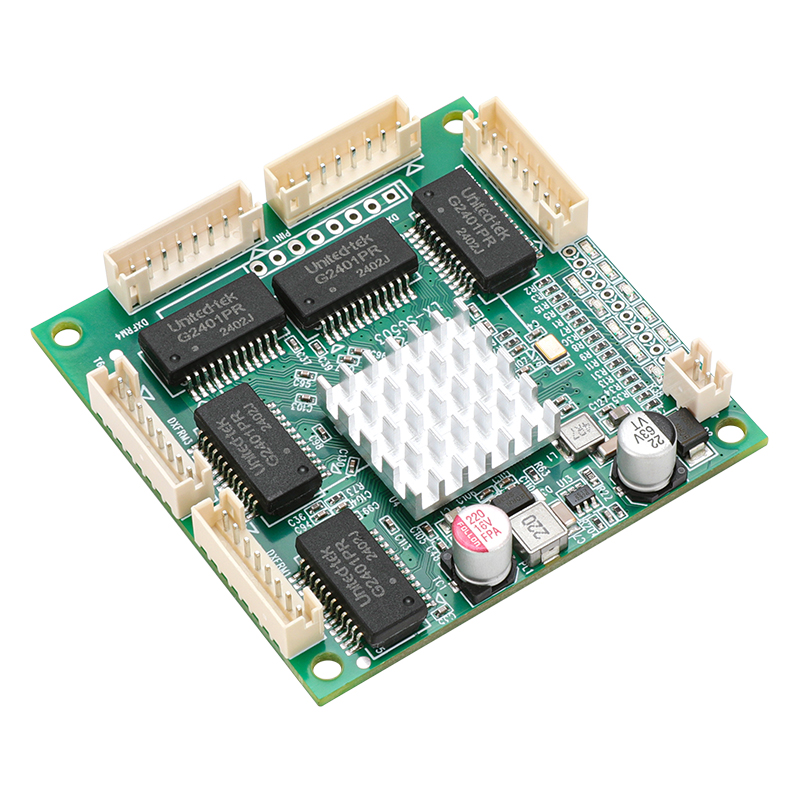

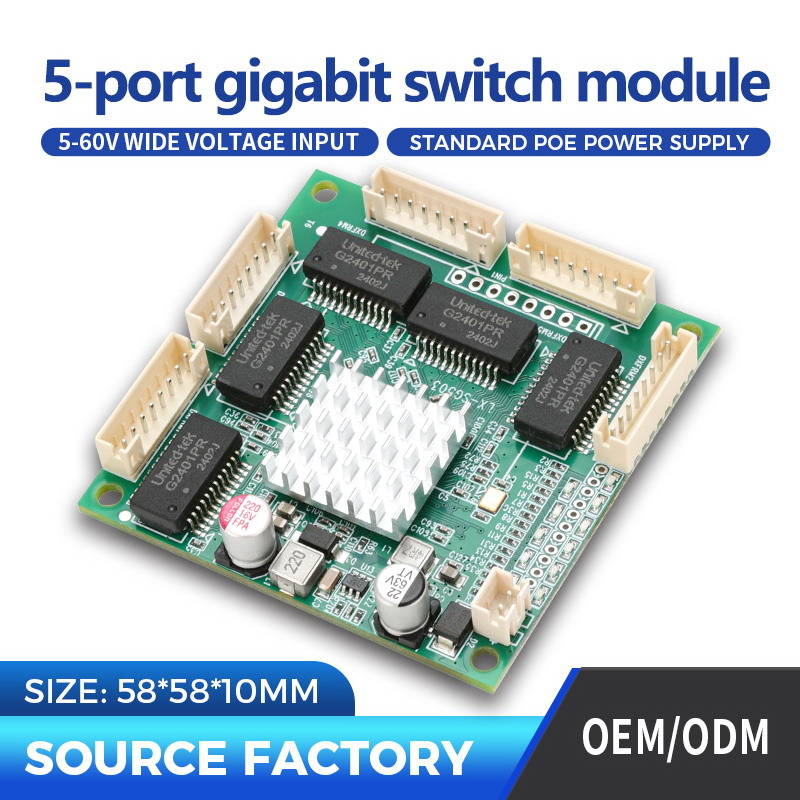

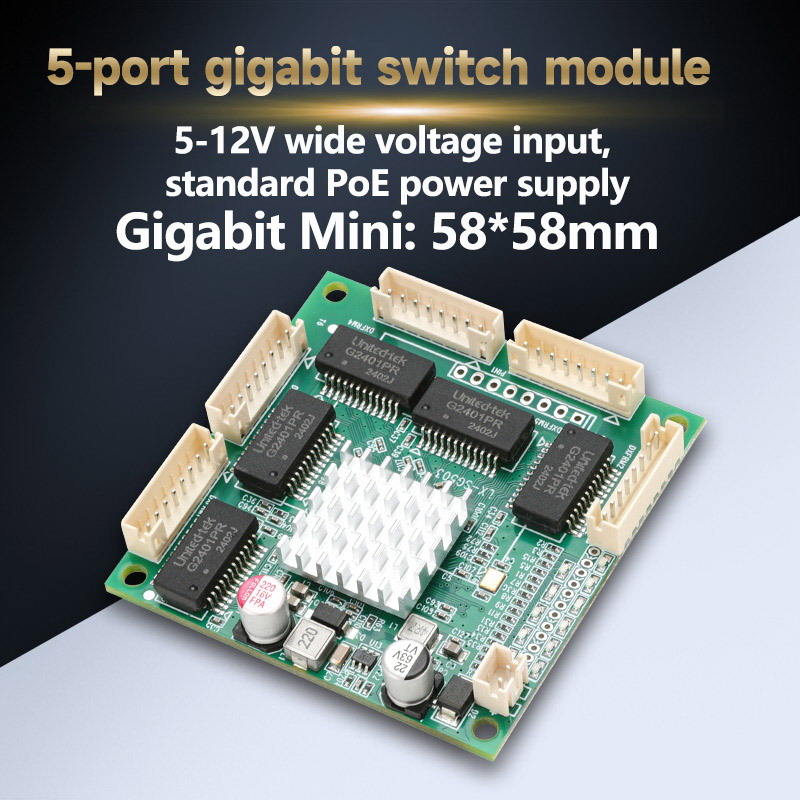

SG503 series are 5-port Gigabit switch modules. There are 2 models available in this series, namely PH2.54mm 8pin port and on-board 8pin pin model. They are characterized by high integration, compact size, rich functions, simplicity and convenience. With embedded installation, users can customize the PCB specification and choose the type of Ethernet interface through the module pins to meet the needs of different applications.

SG503 has 5 full Gigabit adaptive ports. Ports 1-4 support IEEE 802.3af/at standard PoE power supply, with single port PoE power up to 30W.

All ports of the switch support half-duplex flow control and full-duplex backpressure standards for increased bandwidth server and network protocol compatibility. In addition, LED indicators allow you to diagnose the operating status of individual ports and the entire system, making this product energy efficient and environmentally friendly.

Key Features

Compliant with IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3x standards.
5 10/100/1000 Base-T PH2.08PIN ports (Data/Power).
4K MAC address and MAC address auto-learning.
10 Gbps non-blocking wire-speed forwarding backplane bandwidth.
Optional standard POE power supply, PoE port single port maximum output power: 30W.
External power supply DC5-60V, standard POE power supply must be 48-56V.

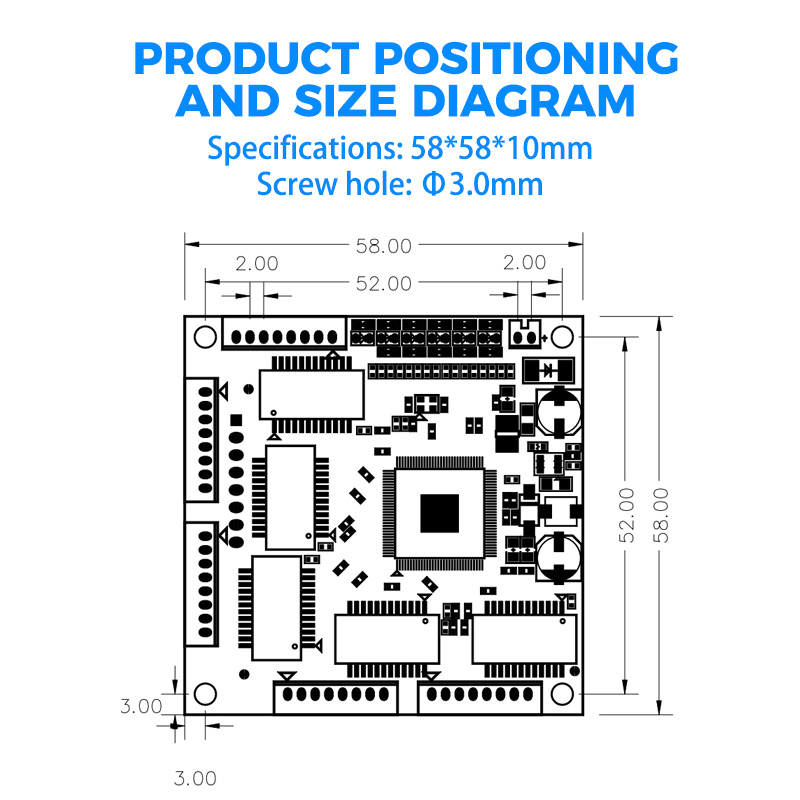

Module PCBA size: 58*58*10mm.

Product Characteristics

Full Gigabit access, Gigabit uplink

Supports Gigabit Ethernet ports for flexible networking to meet various scenarios; all ports support non-blocking wire-speed forwarding for smoother transmission. Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

Optional intelligent PoE power supply function

Four 10/100/1000Base-T socket ports support PoE power supply to meet the needs of PoE power supply for security monitoring, teleconferencing systems, wireless coverage and other scenarios. The optional standard POE complies with IEEE 802.3af/at PoE power supply standard and automatically recognizes PoE devices for power supply without damaging non-PoE devices. The maximum PoE output power of a single port is 30 W. PoE ports support the priority mechanism, when the remaining power is insufficient, the power supply of high priority ports will be given priority to avoid overloading of equipment.upply of high-priority ports will be given priority to avoid overloading of equipment.

Plug and play without configuration

Support 10/100/1000M adaptive PH2.08PIN port, each port supports MDI/MDIX adaptive function Full wire-speed Gigabit switching capability, plug-and-play, no need to manage to ensure that all ports are forwarded without blocking.

Users can easily know the working status of the device through the power indicator (PWR) and port status indicator (Link,L/A).

Cache data without loss

Adopts store-and-forward mode, provides 10Gbps backplane bandwidth, and high-capacity cache, which effectively reduces data forwarding delay and improves forwarding efficiency to avoid data loss.

Specification

Product Specification
Product Model	SG503-1 SG503-1POE
Fixed Port	510/100/1000Base-T electrical ports (Data/Power) 410/100/1000Base-T POE ports (Data/Power) 1*10/100/1000Base-T uplink electrical port (Data)
POE Port	2-5 ports support IEEE802.3af/at standard PoE power supply
network protocol	IEEE802.310BASE-T;IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x
Power supply standard	Conforms to IEEE802.3af/at international standards
Port Characteristics	10/100/1000Base-T auto-detect, full/half duplex MDI/MDI-X adaptive
Forwarding Mode	Store-and-forward (full wire speed)
Backplane Bandwidth	10Gbps (non-blocking)
forwarding rate	10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or laterUTP(≤100 meter)
Packet Forwarding Rate @ 64byte	9.42Mpps
MAC Address Table	2K
twisted-pair transmission	10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or laterUTP(≤100 meter)
Maximum Single Port/Average Power	(DC5-60V) 15.4W-30W(DC48-56V)
Power Supply Pins	Support 1/2(+),3/6(-).4-cell power supply
Overall Power Consumption	Standby power consumption:< 1W; Full load power consumption:< 3W POE:Standby power consumption:< 10W; Full load power consumption:< 120W
LED Indicator	Power indicator light: PWR (green); Network indicator light: Link, Link/ACT (yellow); POE indicator light: PoE (green)
Appearance dimensions (L * W * H)	585810mm
Net weight/Gross weight	<22g/<25g <35g/<37g
work environment
Working humidity	10% -90% RH (non condensing)
working temperature	-40℃-85℃
Storage humidity	10% -90% RH (non condensing)
Storage temperature	-40℃-85℃
Product Versions
SG503-1	Unmanaged 5 x 10/100/1000M PH2.0mm 8pin ports
SG503-1-POE	Unmanaged 5 10/100/1000MPH2.0mm8pin ports, of which ports 2-5 support IEEE 802.3af/at PoE international standard power supply

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
