Description

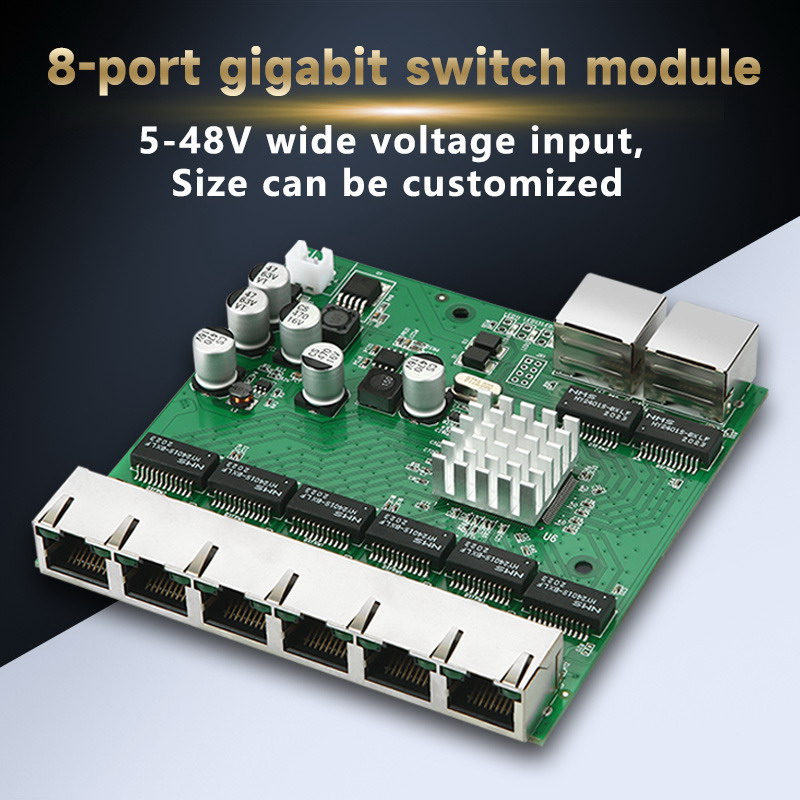

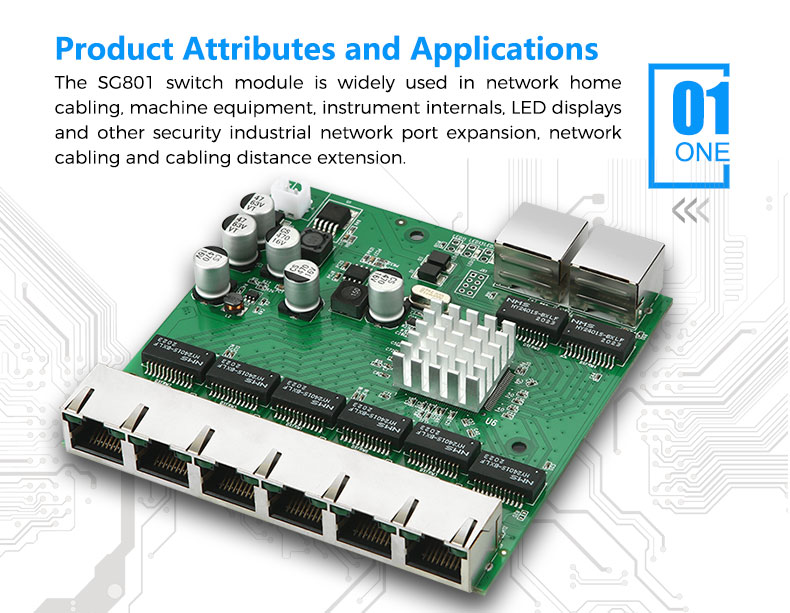

SG801 Series Non-Managed Gigabit PoE Switch Module Developed independently by Huasifei Technology, the SG801 series is a non-managed all-Gigabit PoE switch module equipped with 6 all-Gigabit auto-negotiation Ethernet ports and 2 additional Gigabit adaptive Ethernet ports. Ports 1–6 support both non-standard 5–52V and IEEE 802.3af/at standard PoE power supply, delivering up to 30W per port and a total PoE output power of 130W for the entire device.

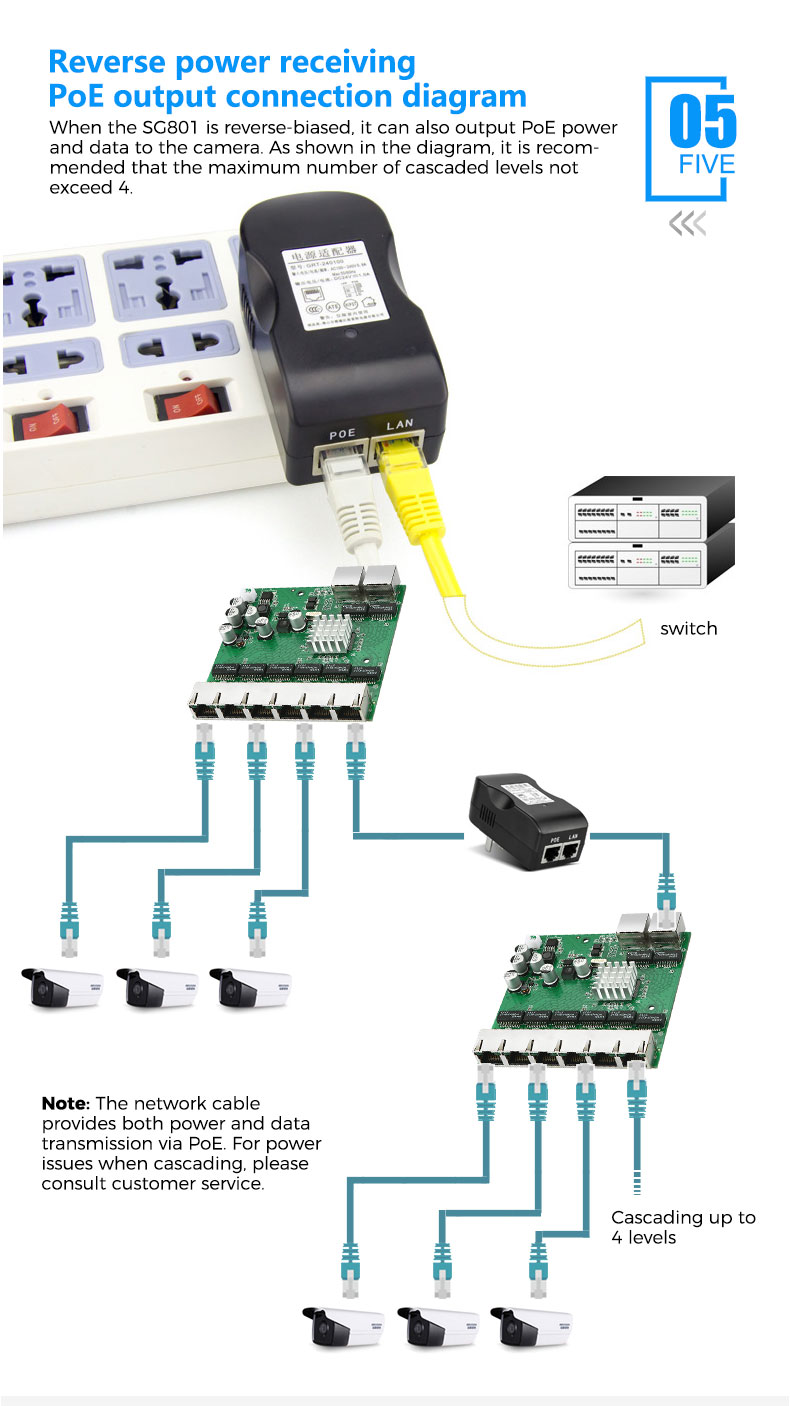

As a PoE power sourcing equipment (PSE), it automatically detects and identifies IEEE-compliant powered devices (PDs) and supplies power over Ethernet cables. It can provide power to a variety of PoE terminal devices such as wireless access points, network cameras, IP phones, and visual building intercom systems, meeting the requirements of high-density PoE applications. Ideal for cost-effective network deployment in hotels, campuses, parks, scenic spots, commercial complexes, factory dormitories, and small and medium-sized enterprises.

With its non-managed design, the switch supports plug-and-play operation—no configuration needed—for simple and convenient use.

Key Features

Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, and IEEE 802.3af/at standards.
8 10/100/1000 Base-T Ethernet ports (Data/Power).
8K MAC address capacity with automatic MAC address learning.
20 Gbps non-blocking line-speed forwarding backplane bandwidth.
Supports optional non-standard PoE or standard PoE power supply, with a maximum PoE port output power of 30W per port.

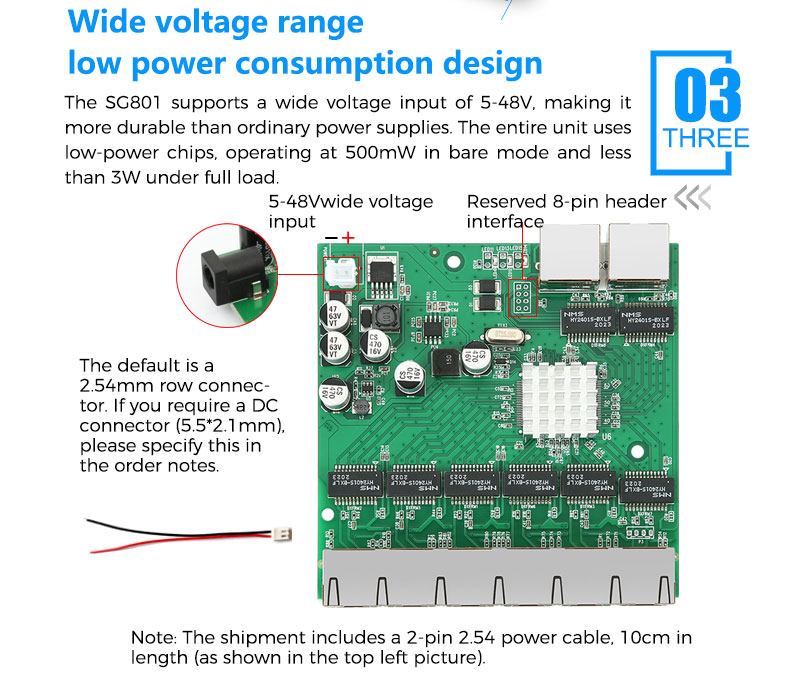

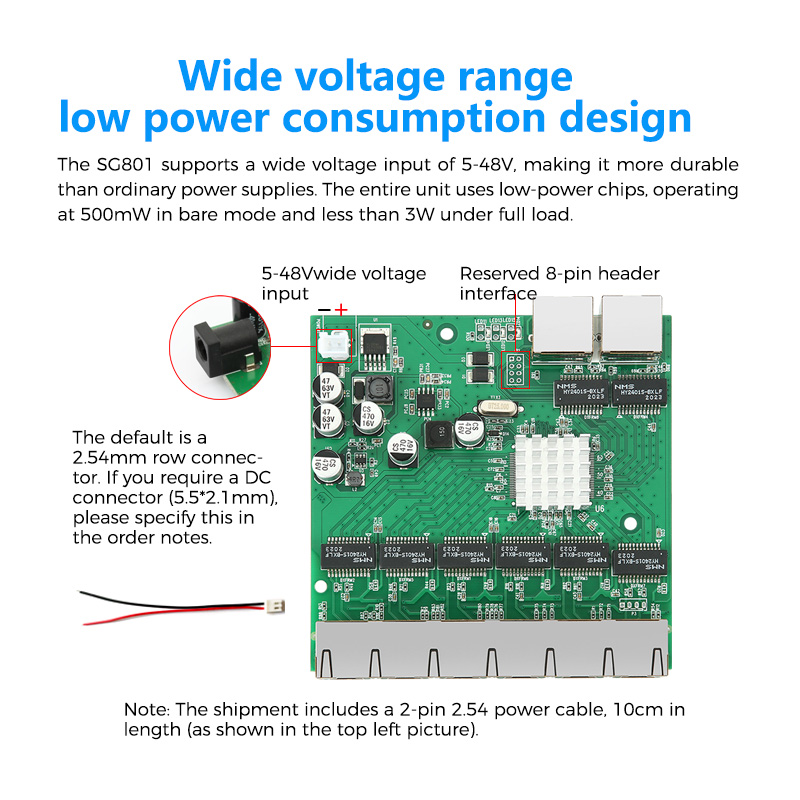

External power supply DC 5-52V; standard PoE power supply requires 48-52V.

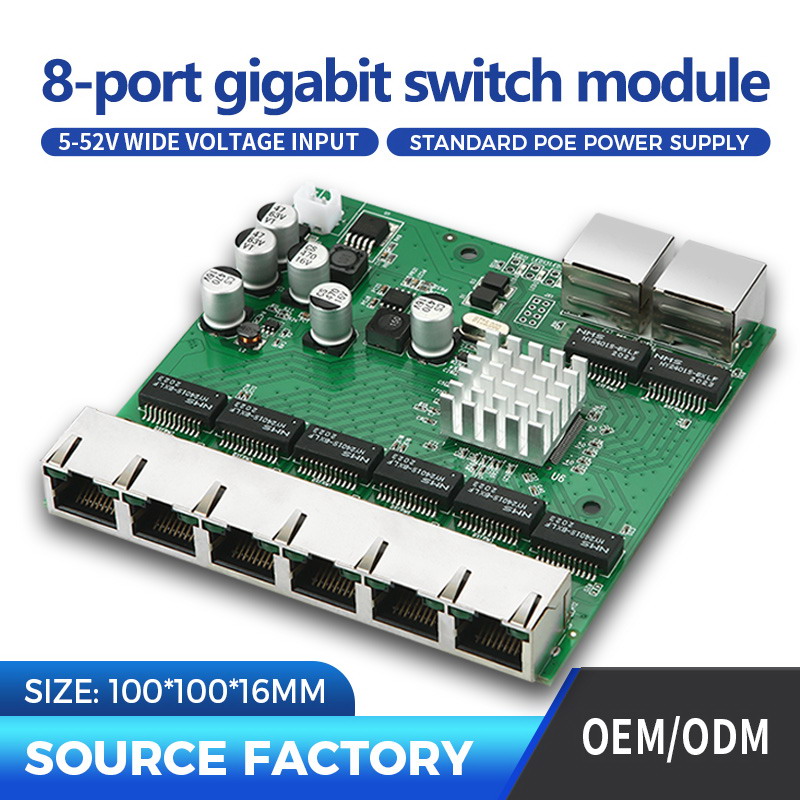

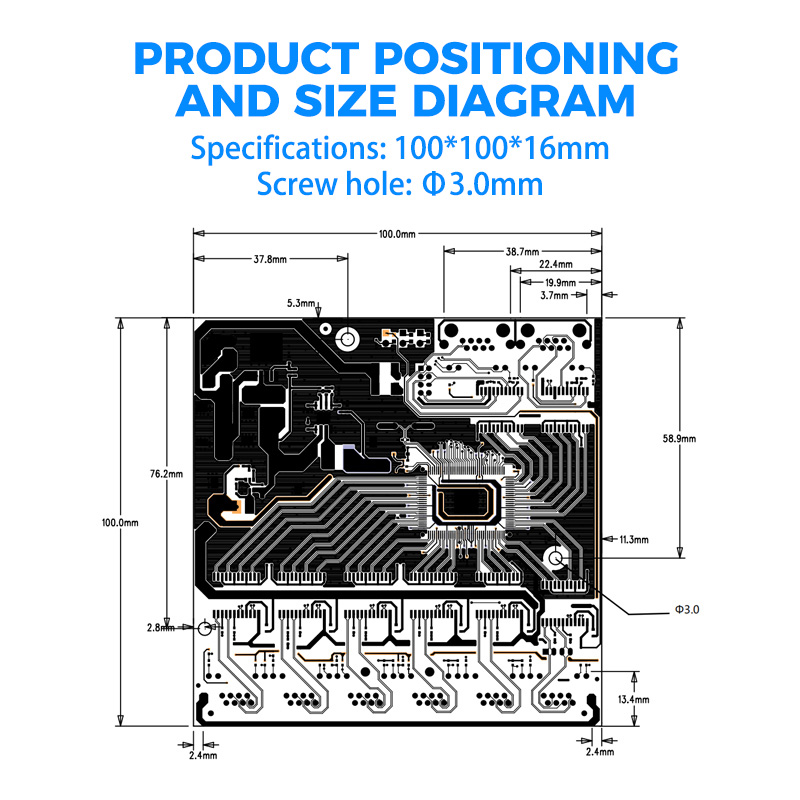

Module PCBA dimensions: 100*100*16mm.

Product Characteristics

Gigabit Ethernet access with fiber uplink capability

It supports Gigabit Ethernet ports, providing flexible networking options for users to meet the requirements of various scenarios. All ports support non-blocking wire-speed forwarding for smoother transmission. It also complies with IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

Optional Smart PoE Power Supply Function

Six 10/100/1000Base-T RJ45 ports support PoE power supply.

When using non-standard PoE, the output power can range from 5-52V, meeting the power requirements for scenarios such as security surveillance, teleconferencing systems, and wireless access point coverage.

When configured for standard PoE, it complies with the IEEE 802.3af/at standards. It automatically identifies and powers compatible PoE devices without damaging non-PoE equipment.

The maximum PoE output power per port is 30W.

PoE ports support a priority mechanism. When the remaining power budget is insufficient, power is guaranteed to higher-priority ports first, preventing system overload.

Plug-and-Play, No Configuration Required

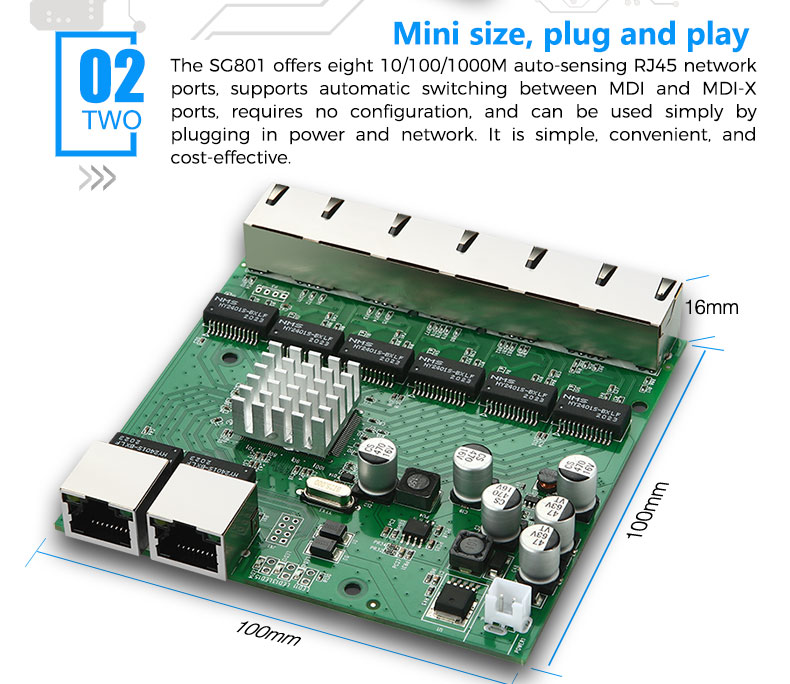

Supports 10/100/1000M auto-negotiation on RJ45 ports. Each port features auto MDI/MDIX crossover, eliminating the need for specific cable types.

Delivers full wire-speed Gigabit switching capacity. The true plug-and-play operation requires no management, ensuring non-blocking packet forwarding across all ports.

Users can easily monitor the device status via the Power (PWR) indicator, port status (Link/Act) indicators, and PoE activity indicators.

Lossless Data Transmission with High-Speed Buffering

Utilizing the store-and-forward switching mode, the switch provides a 20Gbps backplane bandwidth and incorporates large-capacity buffers.

This architecture effectively reduces data forwarding latency and improves transmission efficiency, preventing packet loss.

Specification

Product Specification
Product Model	SG801 SG801POE
Fixed Port	6 x 10/100/1000Base-T PoE ports (Data/Power) 2 x 10/100/1000Base-T uplink Ethernet ports (Data)
POE Port	Ports 1-6 support standard IEEE 802.3af/at PoE power supply.
network protocol	IEEE802.310BASE-T, IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x
Power supply standard	Conforms to IEEE802.3af/at international standards
Port Characteristics	10/100/1000Base-T auto-detect, full/half duplex MDI/MDI-X adaptive
Forwarding Mode	Store-and-forward (full wire speed)
Backplane Bandwidth	20Gbps (non-blocking)
Packet Forwarding Rate @ 64byte	17.86Mpps
MAC Address Table	8K
twisted-pair transmission	10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or laterUTP(≤100 meter)
Maximum Single Port/Average Power	(DC5-12V) POE: 15.4W-30W(DC48-52V)
Power Supply Pins	Supports both standard (Pairs 1/2+, 3/6-) and non-standard (Pairs 4/5+, 7/8-) 4-pair powering modes.
Overall Power Consumption	Standby power consumption:< 3W; Full load power consumption:< 8W POE:Standby power consumption:< 10W; Full load power consumption:< 240W
LED Indicator	Power indicator light: PWR (green); Network indicator light: Link, Link/ACT (yellow); POE indicator light: PoE (green)
Appearance dimensions (L * W * H)	10010016mm
Net weight/Gross weight	<85g/<90g <95g/<100g
work environment
Working humidity	10% -90% RH (non condensing)
working temperature	-40℃-85℃
Storage humidity	10% -90% RH (non condensing)
Storage temperature	-40℃-85℃
Product Versions

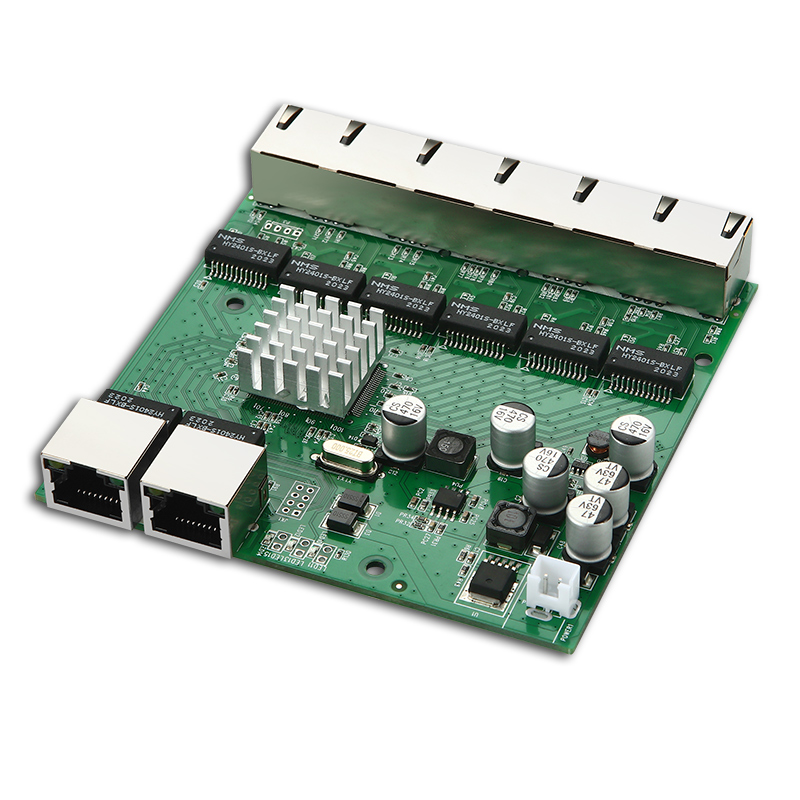

SG801	Non-managed switch with 6 front 10/100/1000M RJ45 ports + 2 rear 10/100/1000M RJ45 ports.
SG801-Standard PoE	Non-managed switch with 6 front 10/100/1000M RJ45 ports + 2 rear 10/100/1000M RJ45 ports. Ports 1-6 support IEEE 802.3af/at international standard PoE power supply.

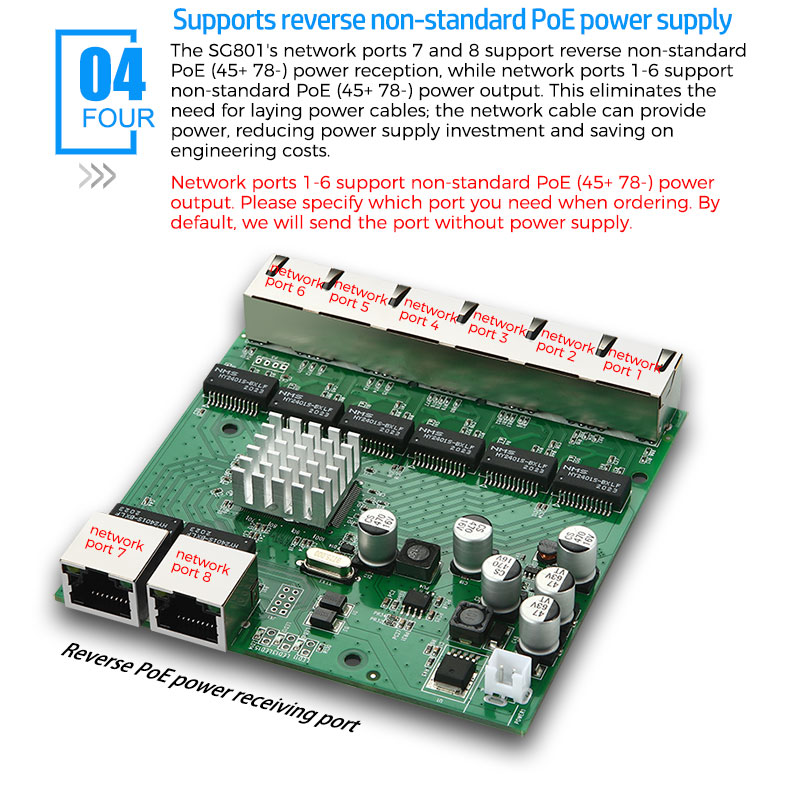

SG801-Non-standard PoE	Non-managed switch with 6 front 10/100/1000M RJ45 ports + 2 rear 10/100/1000M RJ45 ports. Ports 1-6 support non-standard PoE power supply (5-52V, Pairs 4/5+, 7/8-).
