Description

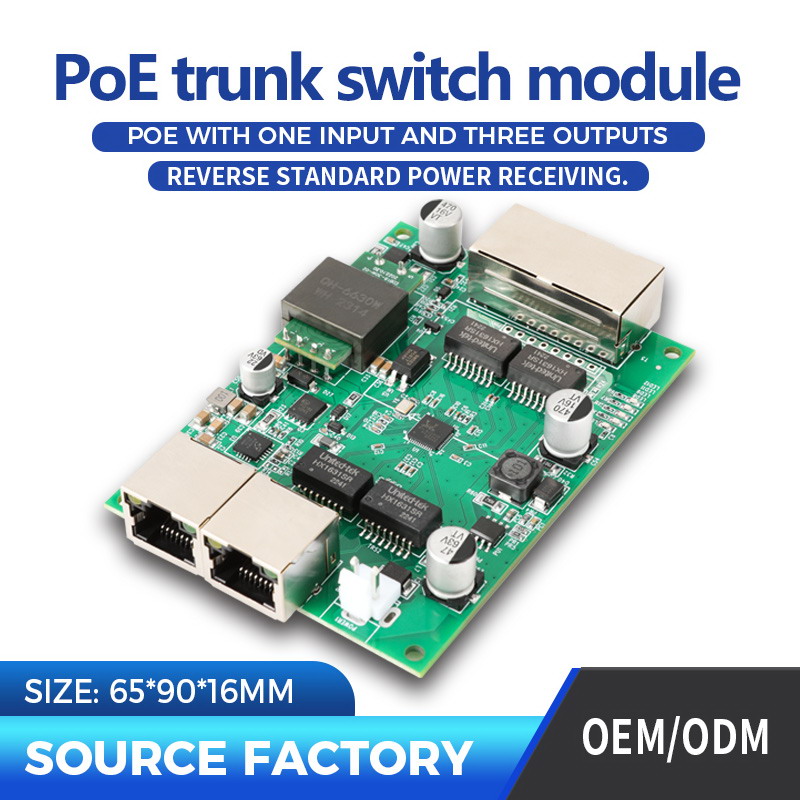

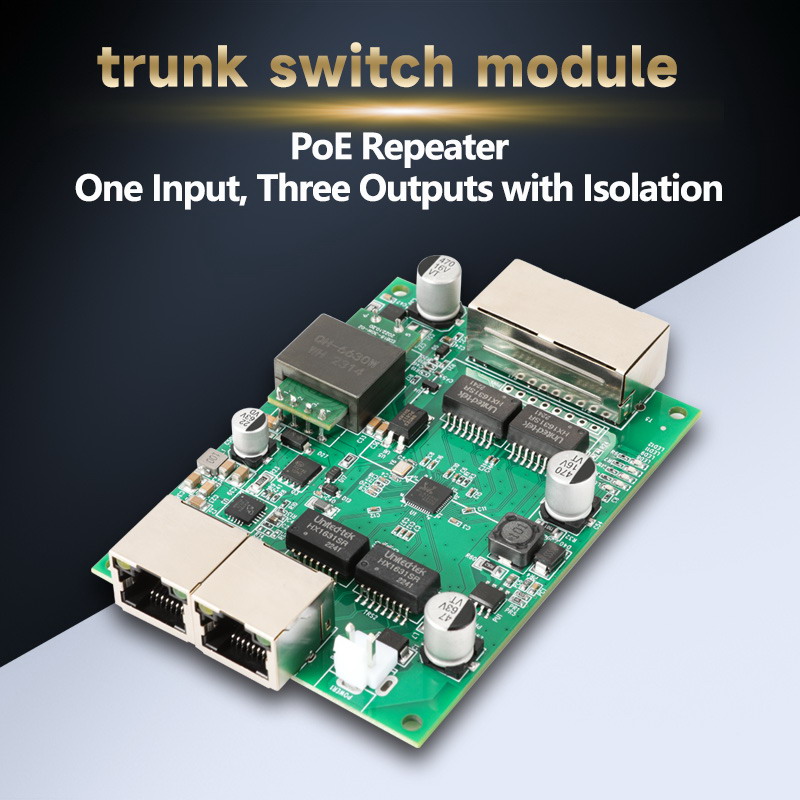

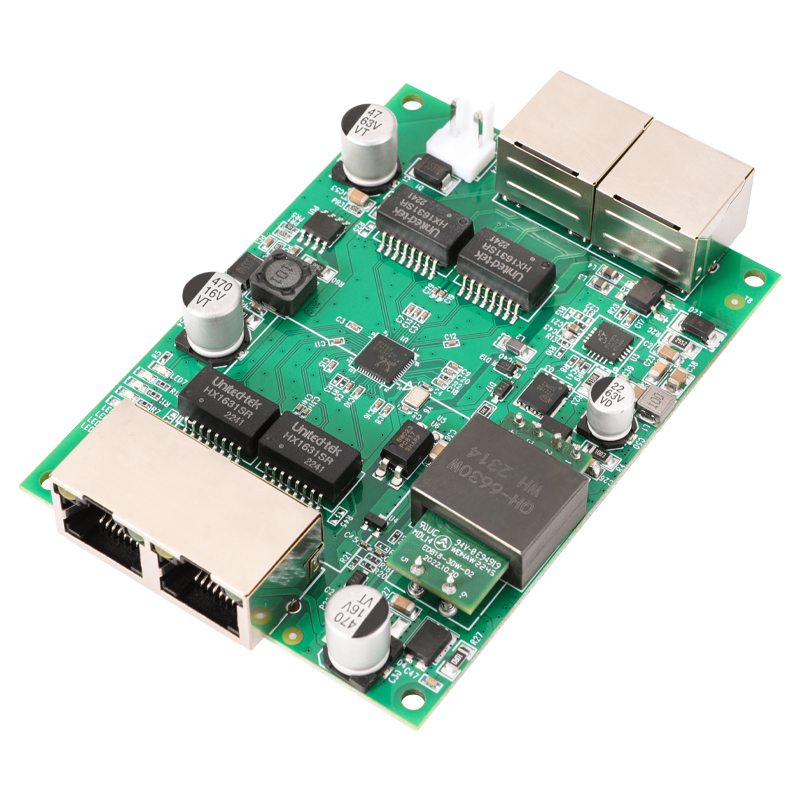

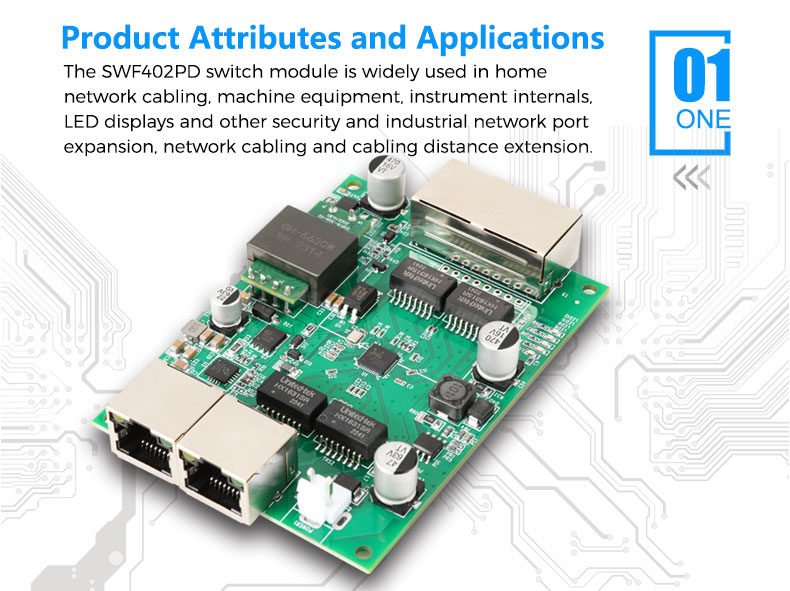

The SWF402PD series are 1-in 3-out Fast Ethernet repeater switch modules. This series offers two product variants for selection: a standard PoE Powered Device (PD) version and a standard PoE PD + Power Sourcing Equipment (PSE) version. It does not require a separate power supply. The PoE input port can receive power from an upstream PoE source to provide network data transmission. It also supports receiving PoE power and then supplying PoE power and network data simultaneously, addressing special scenarios in industrial applications where access to a power outlet is inconvenient.

Each switching port of this 4-port 10/100Mbps Ethernet switch module supports auto-negotiation. It provides an economical, practical, and cost-effective 10/100Mbps LAN hub for broadband local area networks, delivering stable performance and high-throughput data transmission for every end-user connected to the LAN. Each port employs the store-and-forward mode, effectively isolating broadcast storms, reducing error packets, and avoiding network congestion and collisions.

All ports of this switch support half-duplex flow control and full-duplex backpressure standards, enhancing compatibility with bandwidth servers and network protocols. Additionally, LED indicators facilitate the diagnosis of individual port and overall system operational status. The product is energy-efficient and environmentally friendly.

Key Features

IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX/FX Fast Ethernet, IEEE 802.1X, IEEE 802.3ab 100Base-T
4 x 10/100M RJ45 ports.
1K MAC Address Table with MAC Address Auto-Learning.
1Gbps Non-Blocking Wire-Speed Forwarding Backplane Bandwidth.
Standard PoE power input via network port or external DC 12-52V power supply.

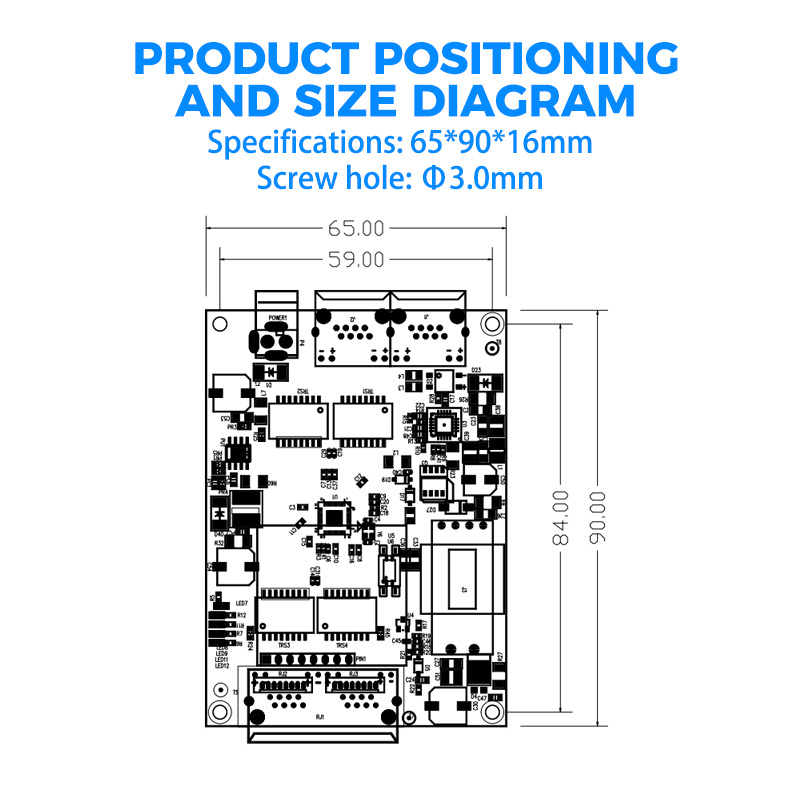

Module PCB Dimensions: 65*90*16mm.

Product Characteristics

Standard PoE PD with Optional PSE Output

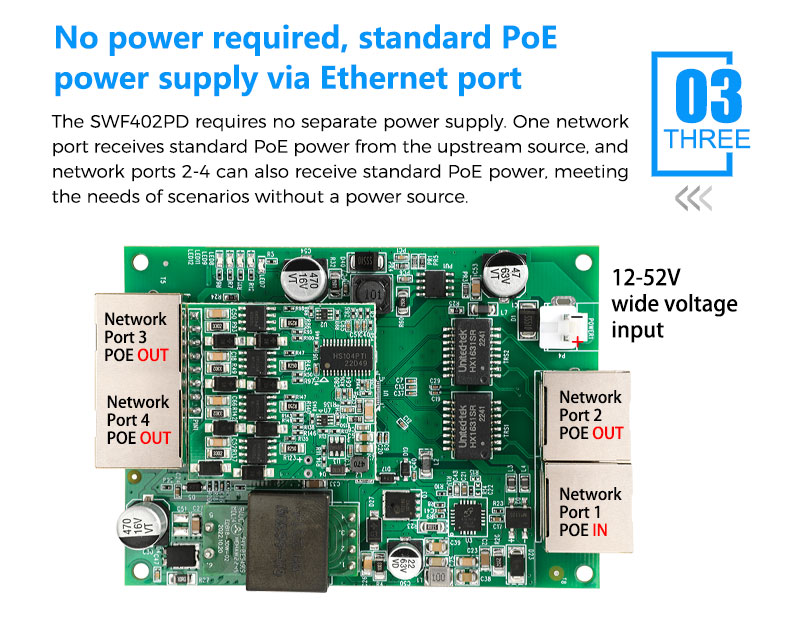

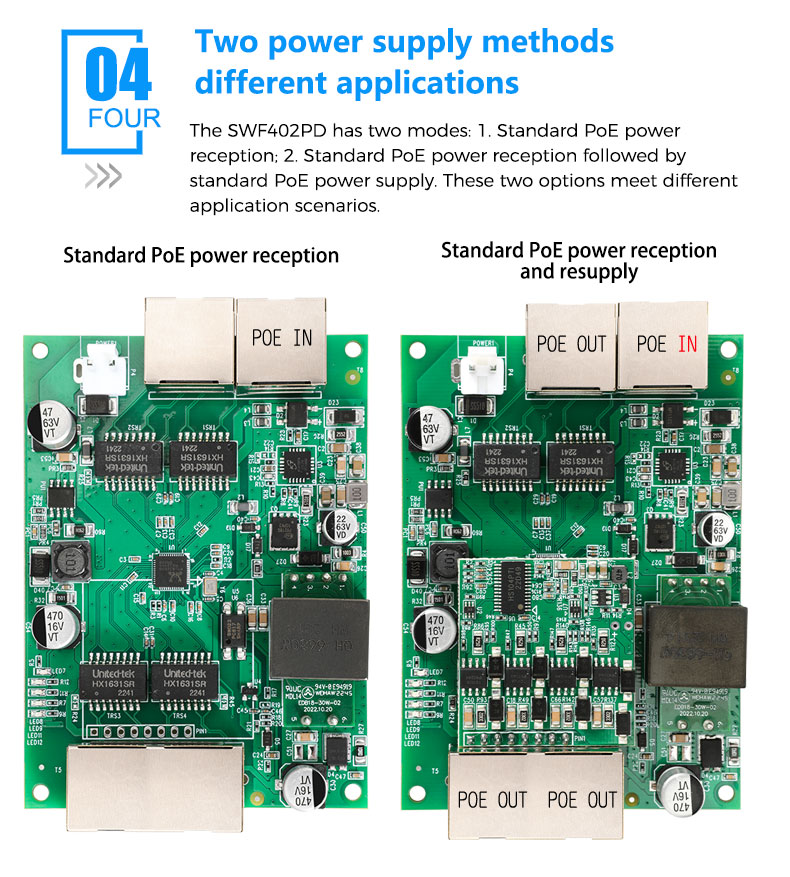

Does not require a separate power supply. The PoE input port receives power from an upstream PoE source to provide network data transmission. It also supports receiving PoE power and then supplying PoE power and network data, addressing special scenarios in industrial applications where access to a power outlet is inconvenient.

Plug-and-Play, No Configuration Required

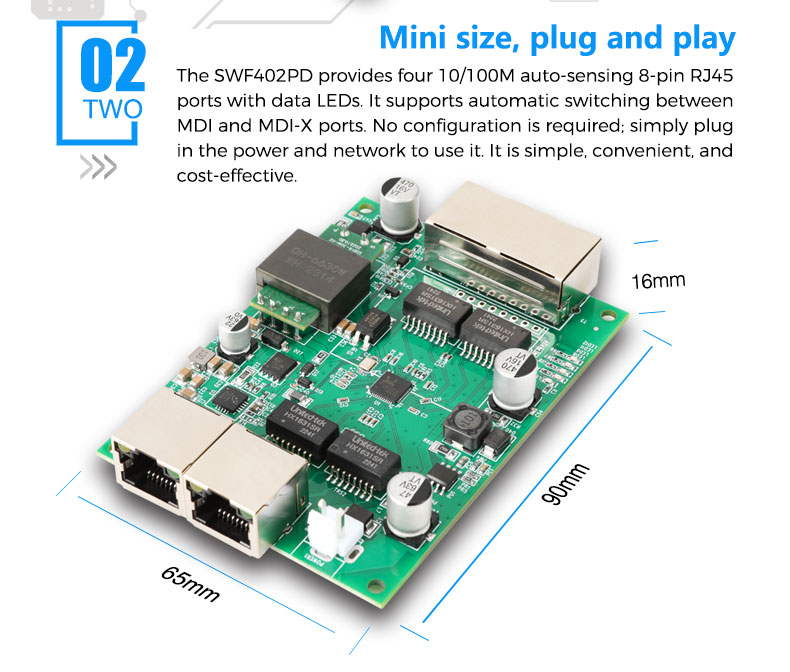

Plug-and-play with dynamic LED indicators. Ready to use out of the box, all ports feature wire-speed forwarding capability. Rich port types offer great flexibility for user networking setups, helping you establish a 100Mbps wired network within 1 second, significantly simplifying device management and maintenance. Supports desktop and wall-mount installation for simple and convenient deployment.

High-Speed Cache, Lossless Data

Utilizes store-and-forward mode with 1Gbps backplane bandwidth and large-capacity buffer, effectively reducing data forwarding latency, improving forwarding efficiency, and preventing packet loss.

Wide Voltage Input, Low Power Consumption Design

Supports wide voltage input from 12-52V, more durable than standard power supplies. The unit employs low-power-consumption chips; bare board operation is 500mW, full load operation is below 3W.

Specifications

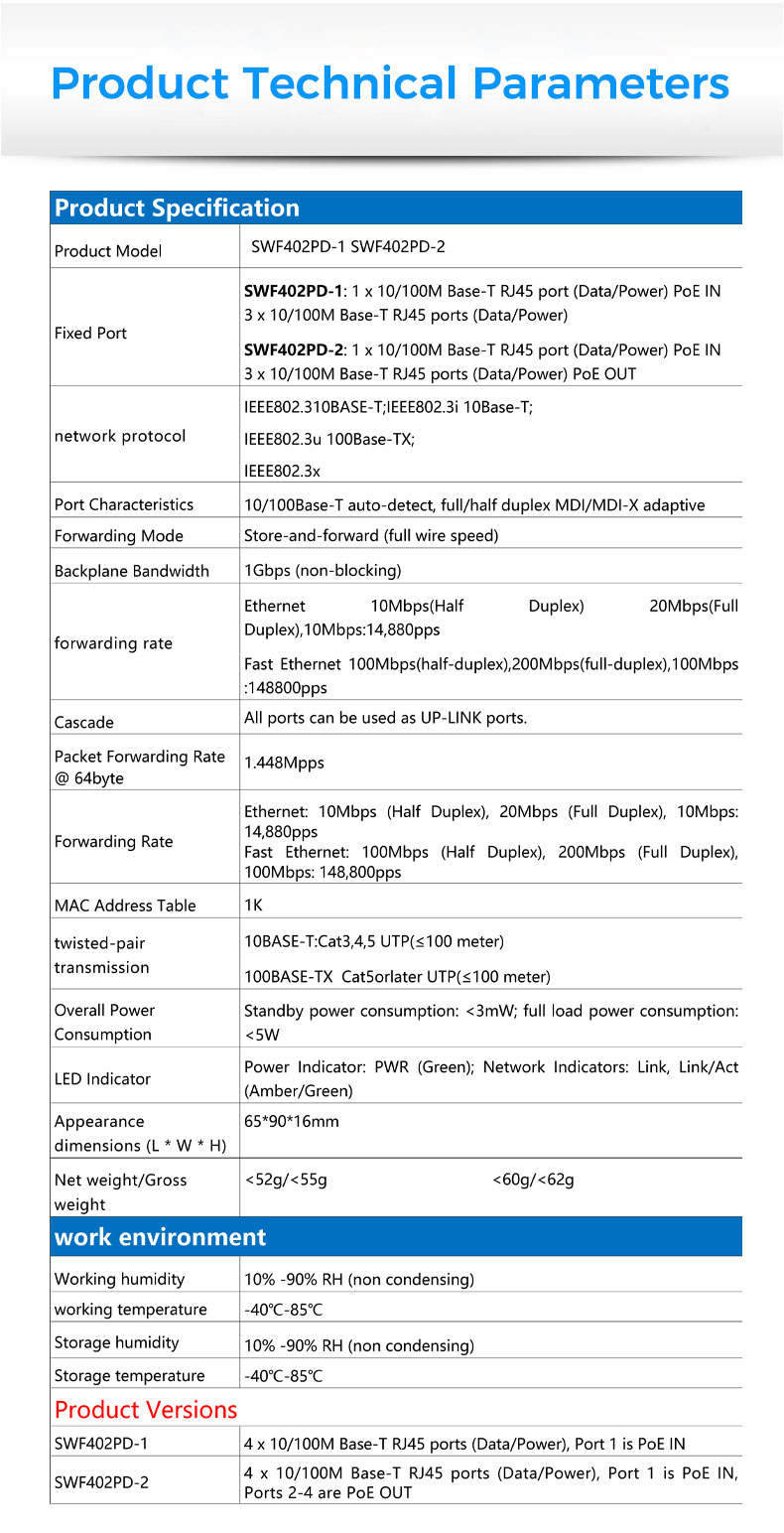

Product Specification
Product Model	SWF402PD-1 SWF402PD-2
Fixed Port	SWF402PD-1: 1 x 10/100M Base-T RJ45 port (Data/Power) PoE IN 3 x 10/100M Base-T RJ45 ports (Data/Power) SWF402PD-2: 1 x 10/100M Base-T RJ45 port (Data/Power) PoE IN 3 x 10/100M Base-T RJ45 ports (Data/Power) PoE OUT
network protocol	IEEE802.310BASE-T;IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x
Port Characteristics	10/100Base-T auto-detect, full/half duplex MDI/MDI-X adaptive
Forwarding Mode	Store-and-forward (full wire speed)
Backplane Bandwidth	1Gbps (non-blocking)
forwarding rate	Ethernet 10Mbps(Half Duplex) 20Mbps(Full Duplex ),10Mbps:14,880pps Fast Ethernet 100Mbps(half-duplex),200Mbps(full-duplex),100Mbps :148800pps
Cascade	All ports can be used as UP-LINK ports.
Packet Forwarding Rate @ 64byte	1.448Mpps
Forwarding Rate	Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex), 10Mbps: 14,880pps Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex), 100Mbps: 148,800pps
MAC Address Table	1K
twisted-pair transmission	10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX Cat5orlater UTP(≤100 meter)
Overall Power Consumption	Standby power consumption: <3mW; full load power consumption: <5W
LED Indicator	Power Indicator: PWR (Green); Network Indicators: Link, Link/Act (Amber/Green)
Appearance dimensions (L * W * H)	659016mm
Net weight/Gross weight	<52g/<55g <60g/<62g
work environment
Working humidity	10% -90% RH (non condensing)
working temperature	-40℃-85℃
Storage humidity	10% -90% RH (non condensing)
Storage temperature	-40℃-85℃
Product Versions
SWF402PD-1	4 x 10/100M Base-T RJ45 ports (Data/Power), Port 1 is PoE IN
SWF402PD-2	4 x 10/100M Base-T RJ45 ports (Data/Power), Port 1 is PoE IN, Ports 2-4 are PoE OUT
