Description

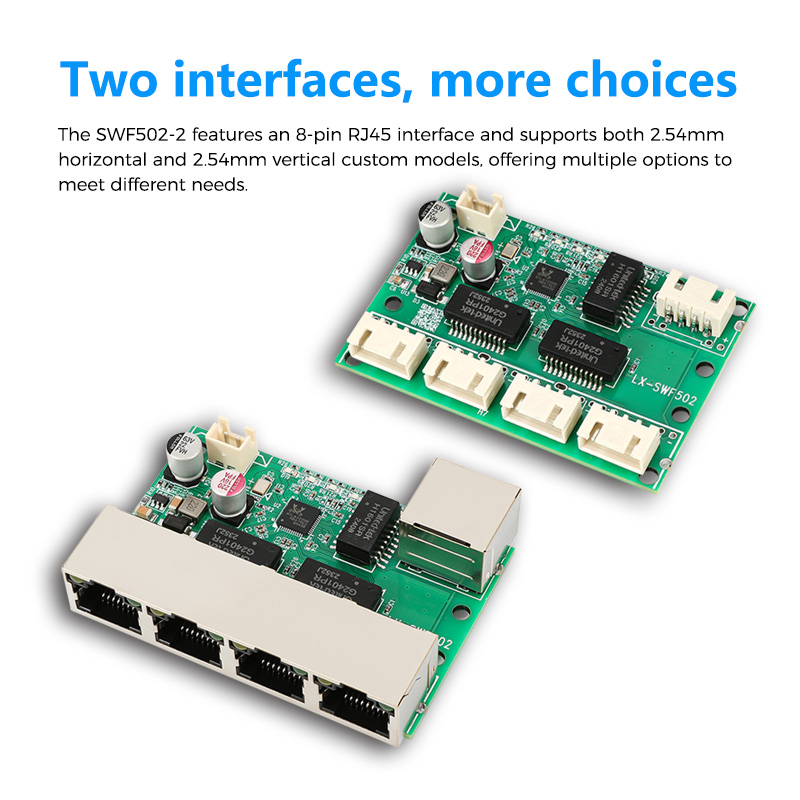

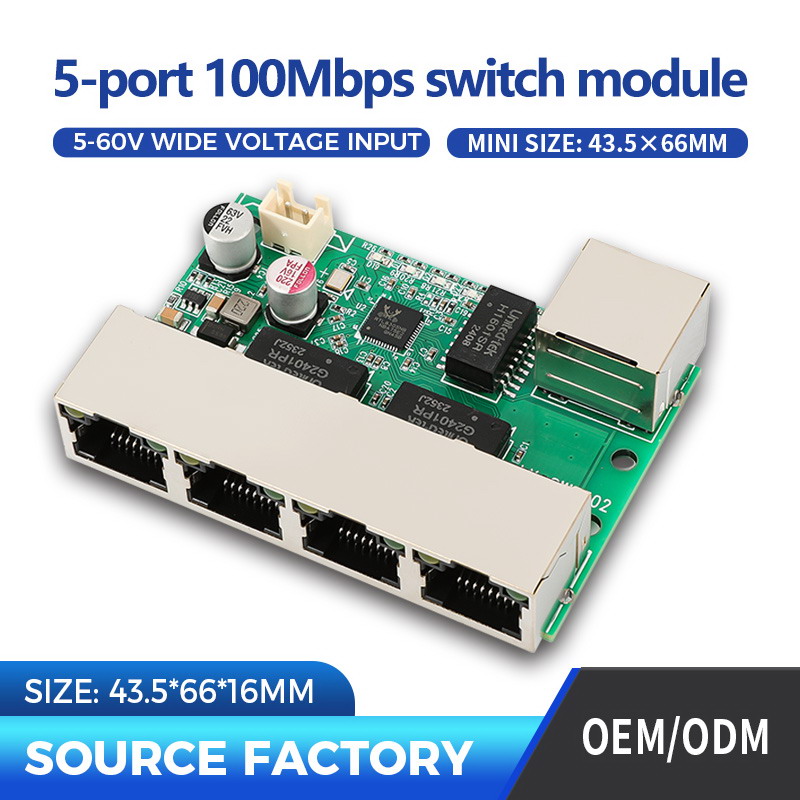

The SWF502 series are 5-port Fast Ethernet switch modules. This series offers two product variants for selection: an XH2.54mm 4-pin port version and an RJ45 port version. It provides a simple network connection for your workgroup or servers, offering convenient plug-and-play functionality. This flexible, non-blocking architecture allows users to operate without limitations from bandwidth or media networks.

Each switching port of this 5-port 10/100Mbps Ethernet switch module supports auto-negotiation. It provides an economical, practical, and cost-effective 10/100Mbps LAN hub for broadband local area networks, delivering stable performance and high-throughput data transmission for every end-user connected to the LAN. Each port employs the store-and-forward mode, effectively isolating broadcast storms, reducing error packets, and avoiding network congestion and collisions.

All ports of this switch support half-duplex flow control and full-duplex backpressure standards, enhancing compatibility with bandwidth servers and network protocols. Additionally, LED indicators facilitate the diagnosis of individual port and overall system operational status. The product is energy-efficient and environmentally friendly

Key Features

Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x.
5 x 10/100M RJ45 Ports.
2K MAC Address Table with MAC Address Auto-Learning.
1Gbps Non-Blocking Wire-Speed Forwarding Backplane Bandwidth.
External Power Supply DC 5-60V.

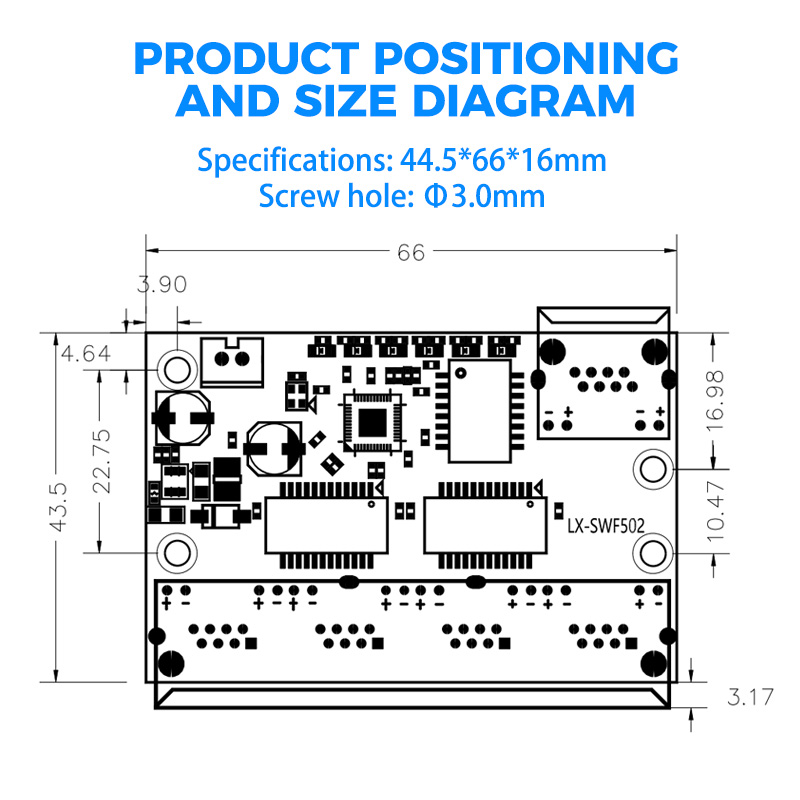

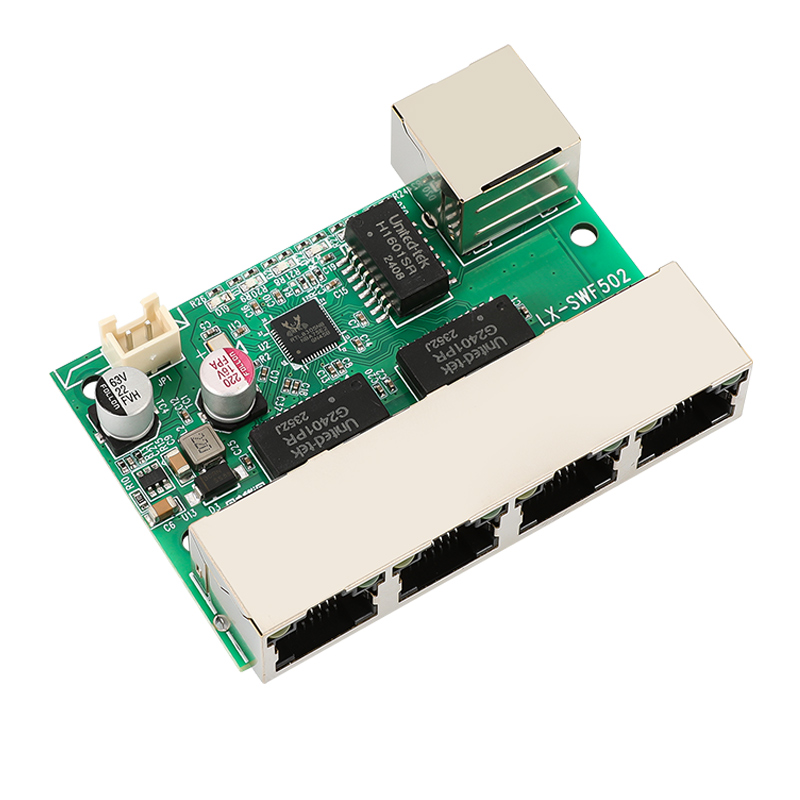

Module PCB Dimensions: 43.5*66*16mm (L*W*H).

Product Characteristics

High-Speed Transmission, Stable Connectivity

Provides 5 x 10/100M RJ45 ports, offering users flexible networking to meet various scenario requirements. All ports support non-blocking wire-speed forwarding for smoother transmission. Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control..

Plug-and-Play, No Configuration Required

Supports 10/100M RJ45 ports. Each port features Auto MDI/MDIX capability and delivers full wire-speed Fast Ethernet switching. Plug-and-play with no management needed, ensuring all ports forward data without blocking. Users can easily monitor device status via the Power indicator (PWR) and port status indicators (Link, L/A).

High-Speed Cache, Lossless Data

Utilizes store-and-forward mode with 1Gbps backplane bandwidth and a large-capacity buffer, effectively reducing data forwarding latency, improving forwarding efficiency, and preventing packet loss.

Wide Voltage Input, Low Power Consumption Design

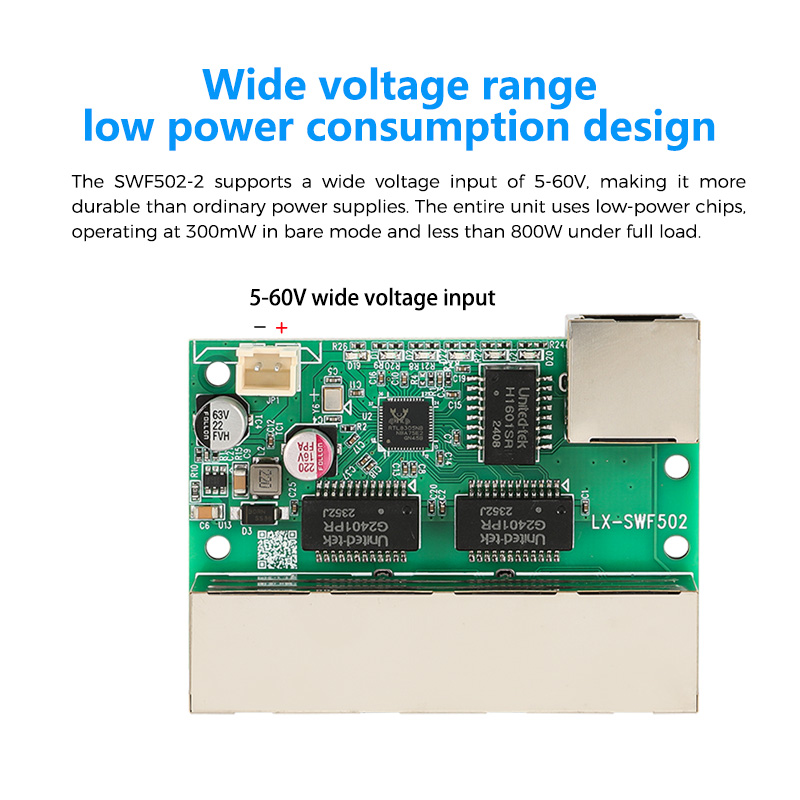

Supports wide voltage input from 5-60V, more durable than standard power supplies. The unit employs low-power-consumption chips; bare board operation is 300mW, full load operation is below 800mW.

Specifications

working environment
Product Model	SWF502-2
Fixed Port	5 x 10/100M Base-T RJ45 Ports (Data/Power)
Network Protocol	IEEE802.310BASE-T;IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x
Port Characteristics	10/100Base-T auto-detect, full/half duplex MDI/MDI-X adaptive
Forwarding Mode	Store-and-forward (full wire speed)
Backplane Bandwidth	1Gbps (non-blocking)
Forwarding Rate	Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex), 10Mbps: 14,880pps Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex), 100Mbps: 148,800pps
Packet Forwarding Rate@64byte	4Mpps
MAC Address Table	2K
Cascading	All ports can be used as uplink ports.
Twisted Pair Transmission	10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter)
Power Consumption	Standby power consumption: <3W; full load power consumption: <5W
LED Indicator	Power indicator: PWR (green); Network indicator: Link, Link/Act (green)
Dimension(LWH)	43.56616mm
Net/Gross Weight	<35g/<37g
Working Environment
Operating Humidity	10%-90%RH(non-condensing)
Operating Temperature	-40℃-85℃
Storage Humidity	10%-90%RH(non-condensing)
Storage Temperature	-40℃-85℃
Product Version
SWF502-2	5 x 10/100M Base-T RJ45 Ports (Data/Power)

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
