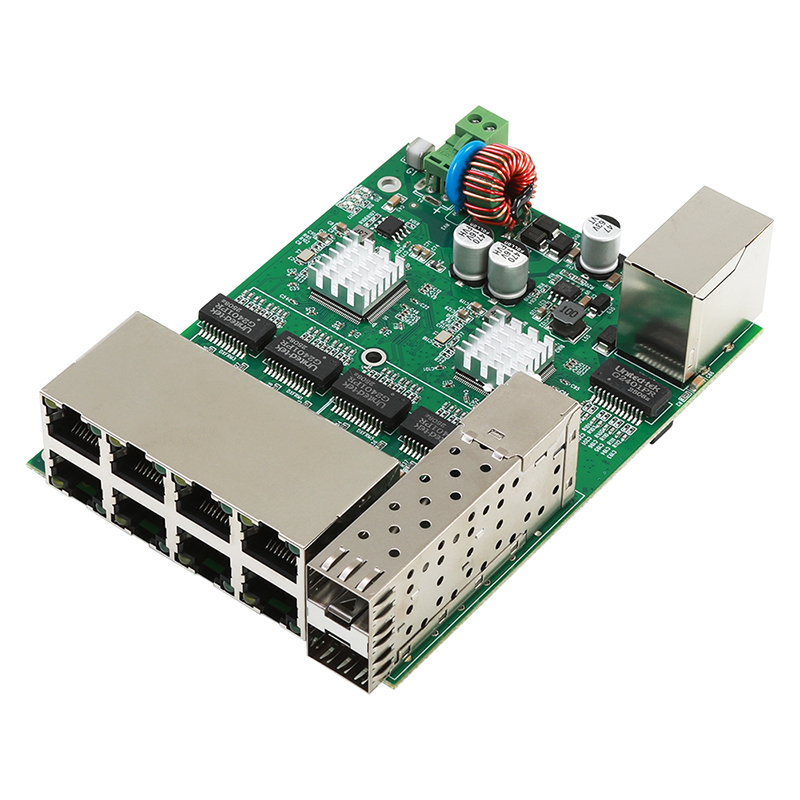

Description

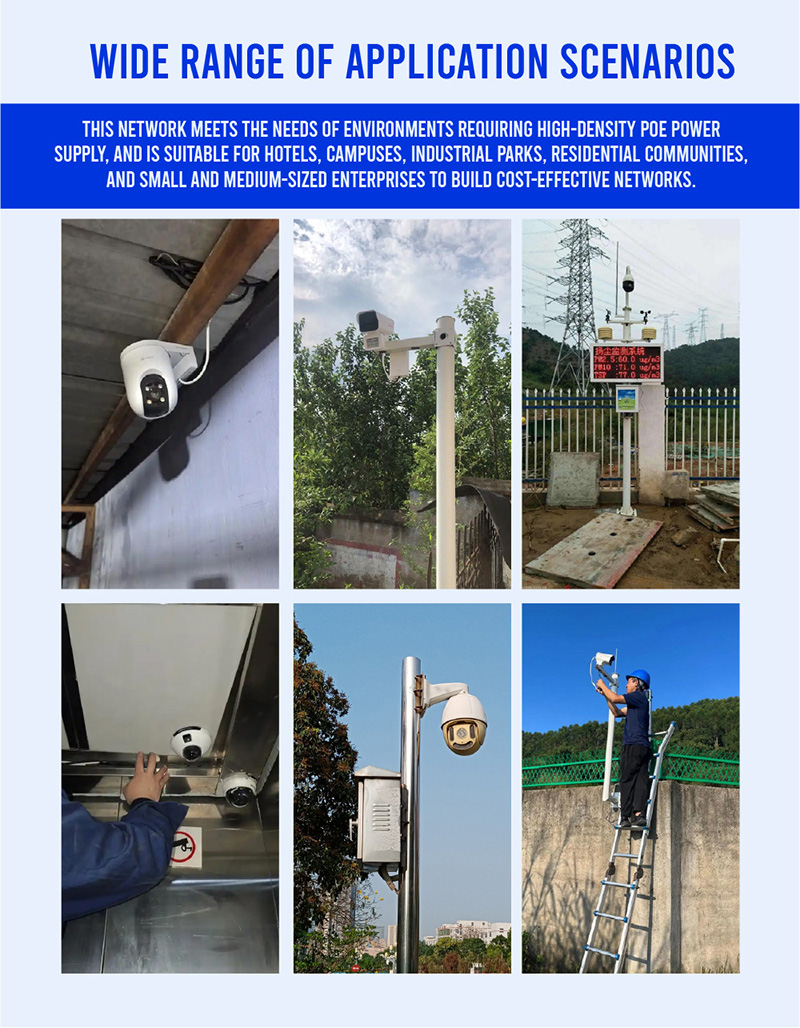

The SWG822F-POE series unmanaged PoE switch has 10 Gigabit Ethernet ports and 2 Gigabit uplink SFP optical port slot, among which ports 1-8 support IEEE 802.3af/at standard PoE power supply, with a single port PoE power of 30W. The SWG821F-POE business ports all support 4KV electrostatic lightning protection and have a one key long-distance transmission mode, with a transmission distance that can be extended to 250 meters; As a PoE powered device, it can automatically detect and identify power receiving devices that meet the standards and provide power to them through Ethernet cables. It can supply power to POE terminal devices such as wireless APs, network cameras, IP phones, and visual access control intercoms through Ethernet cables, meeting the demand for high-density PoE power supply in network environments. It is suitable for hotels, campuses, parks, residential areas, and small and medium-sized enterprises to build cost-effective networks.

Non network management models, plug and play, no need for configuration, easy and convenient to use;

Product Features

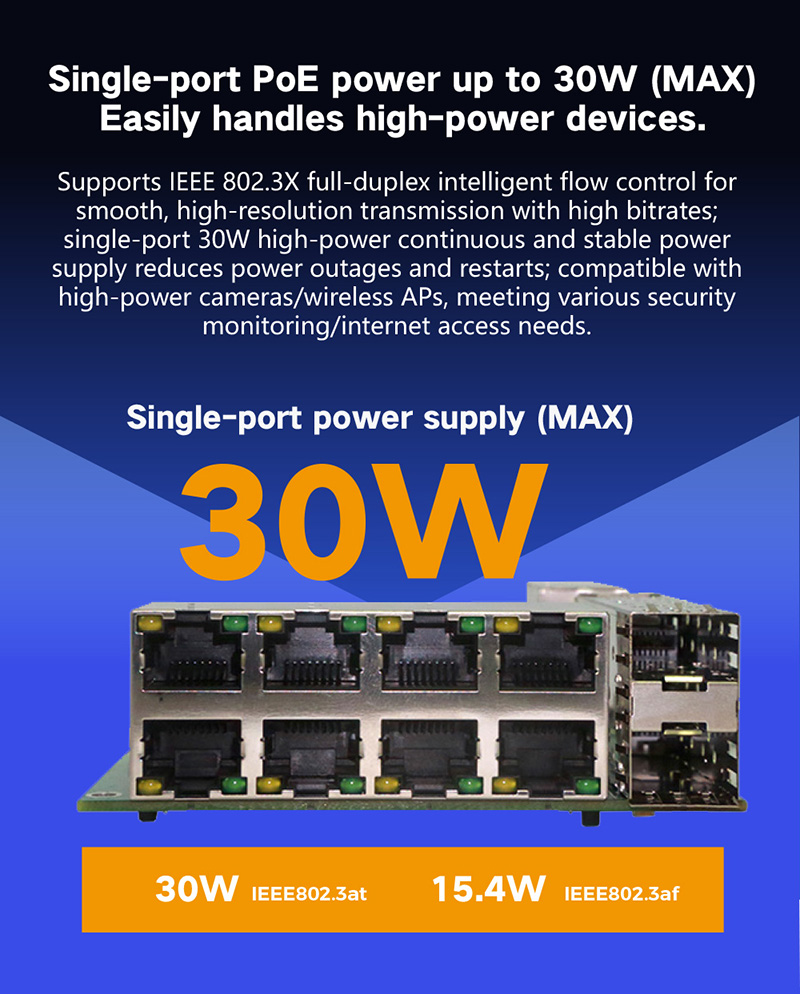

Single port PoE power up to 30W, af/at adaptive, widely compatible with various network terminals;
Optoelectronic hybrid uplink port, flexible adaptation to Ethernet and fiber optic connections, adaptable to various networking cascades and extensions, making networking simpler;

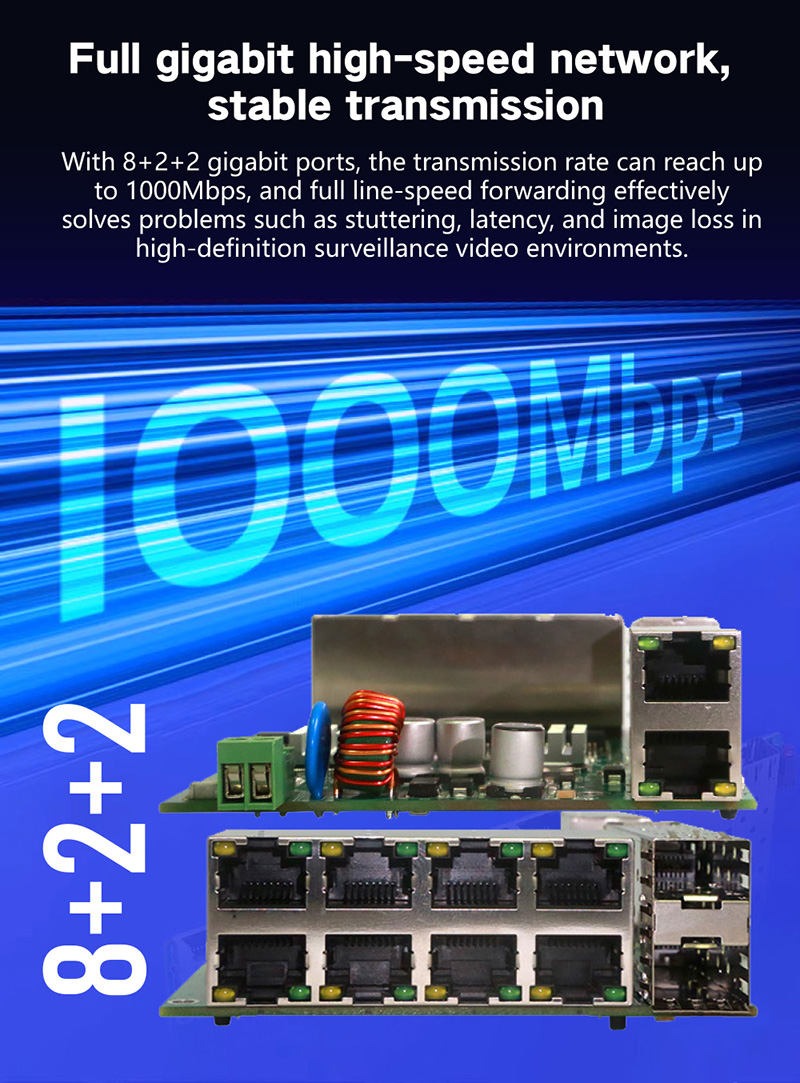

Full gigabit high-speed transmission, compatible with 10/100M, stable and guaranteed high bandwidth transmission, meeting the needs of different users;
Supports 10M/250 meter long-distance transmission, automatically optimizes the network, and easily solves long-distance communication and power supply problems;
Enterprise level high bandwidth switching chip, high backplane, large cache, reducing network congestion;
Support IEEE802.3X full duplex intelligent flow control, high bit rate high-definition transmission without buffering;
Support automatic learning and updating of MAC addresses, and support automatic port flipping (Auto MDI/MDI-X) function;

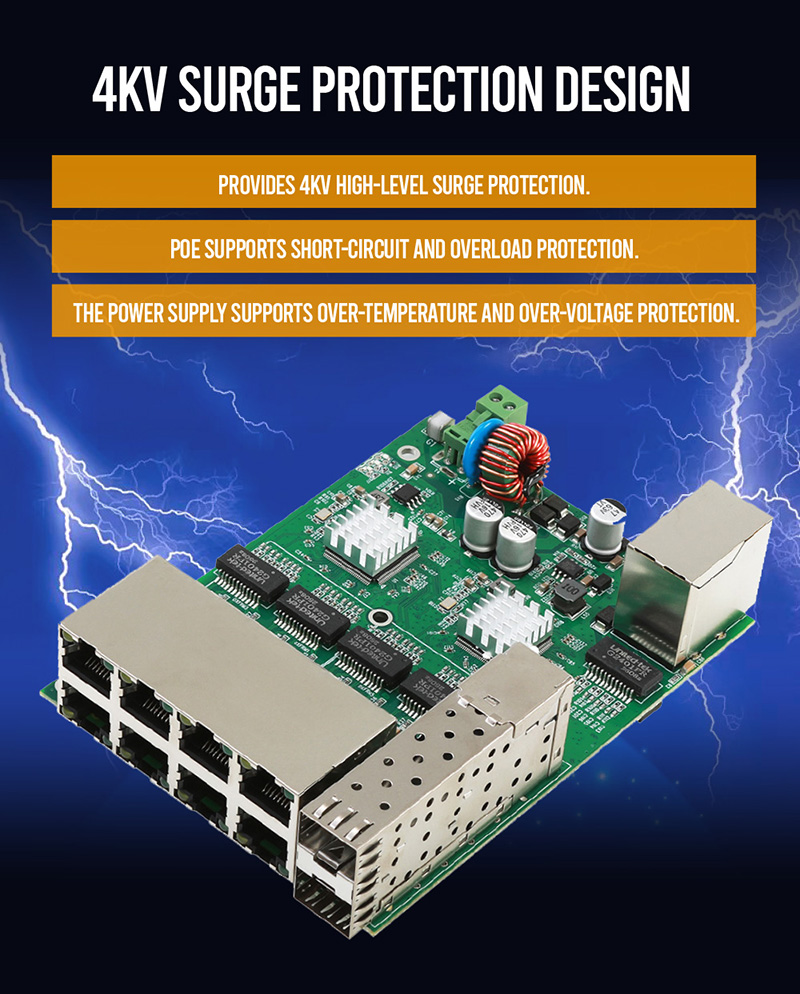

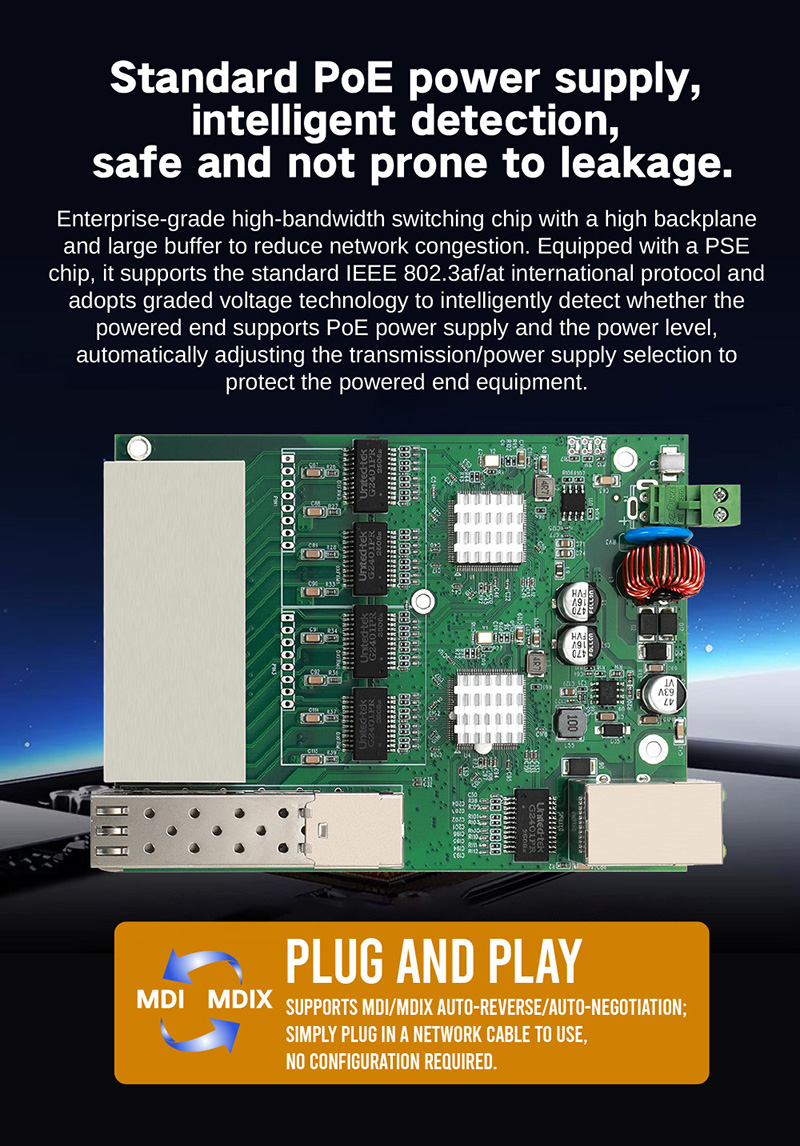

The business port supports 4KV surge protection (lightning protection), PoE short circuit and overload protection, making it safer and more reassuring to use;
Stainless steel forged metal shell, shielding interference, strong heat dissipation, sturdy, rust proof and more durable;
Plug and play, no need for configuration, easy and simple to use.

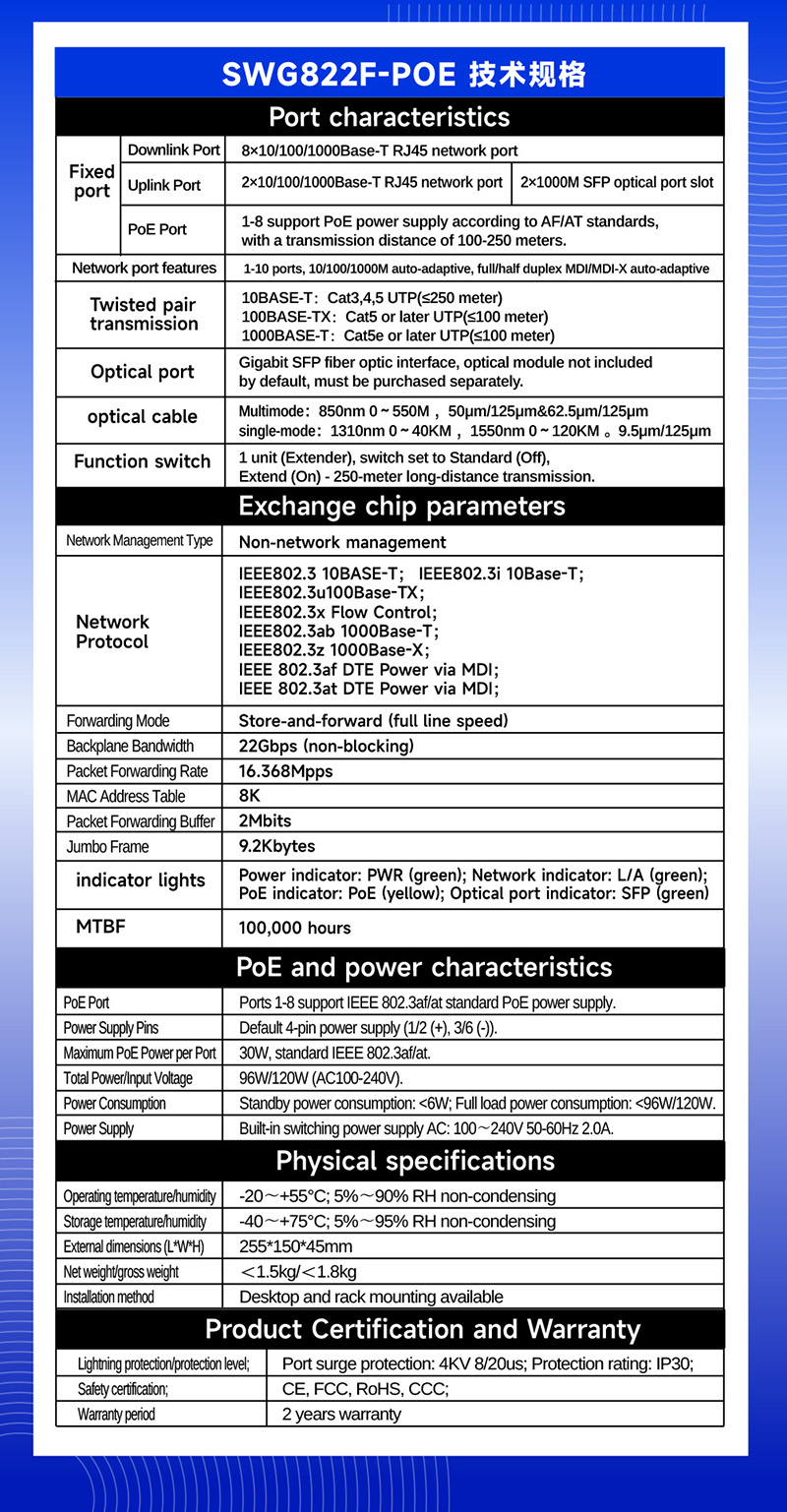

Specification

Model		SWG822F-POE
Port characteristics

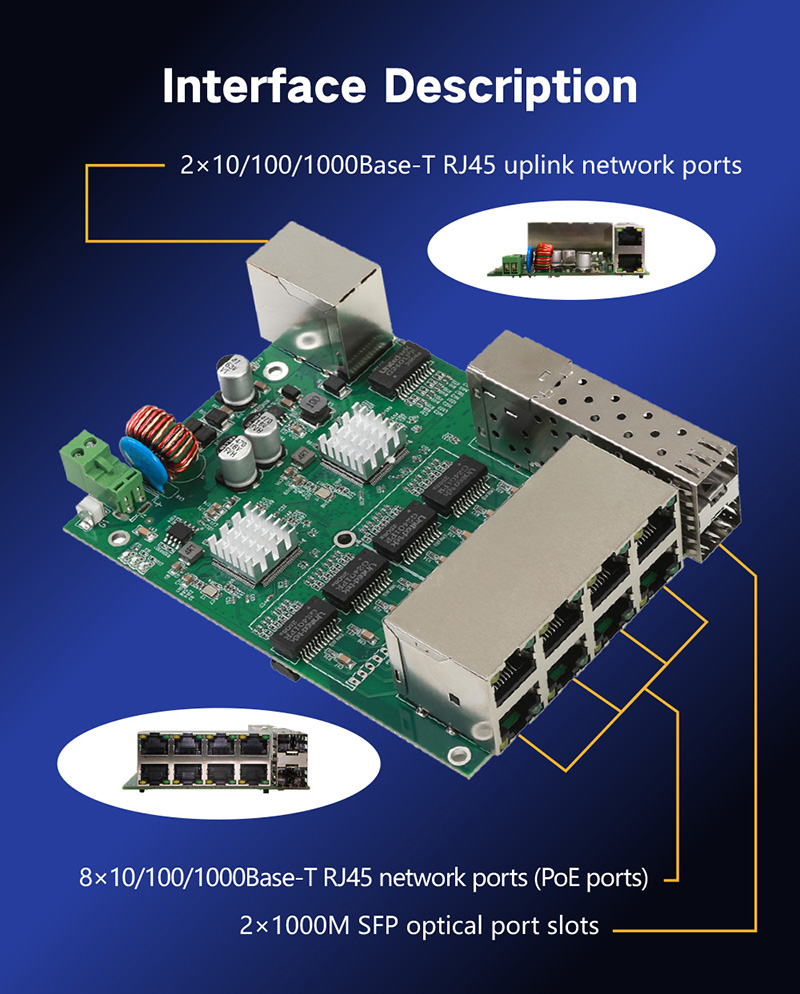

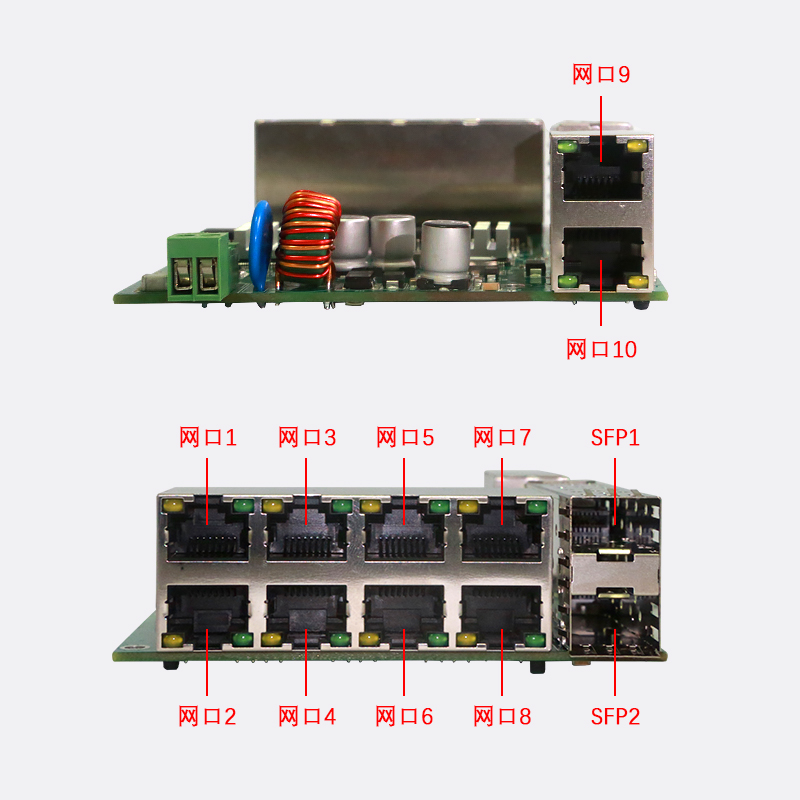

Fixed port	downstream port	8 10/100/1000Base-T RJ45 Ethernet ports
	uplink port	2 10/100/1000Base-T RJ45 Ethernet ports 2 1000M SFP optical port slot
	PoE port	1-8 supports af/at standard PoE power supply, with a transmission distance of 100-250 meters
Network port characteristics		1-10 ports 10/100/1000M adaptive, full/half duplex MDI/MDI-X adaptive
Twisted pair transmission		10BASE-T:Cat3,4,5 UTP(≤250 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or later UTP(≤100 meter)
Optical port characteristics		Gigabit SFP fiber optic interface, default does not come with optical module, needs to be purchased separately (optional order mode/multi-mode, single fiber/dual fiber optical module, LC/SC)
optical cable		Multimode: 850nm 0-550M, 50 μ m/125 μ m&62.5 μ m/125 μ m Single mode: 1310nm 0-40KM, 1550nm 0-120KM. 9.5μm/125μm
feature toggle		1 (extender), switch to Standard (off), Extend (on) -250 meters long distance transmission
Exchange chip parameters
Network management type		Non network management
network protocol		IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x Flow Control; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE 802.3af DTE Power via MDI; IEEE 802.3at DTE Power via MDI;
Forwarding mode		Store and forward (full line speed)
backplane bandwidth		24Gbps (non blocking)
Packet forwarding rate @ 64byte		16.368Mpps	Packet forwarding rate @ 64byte
MAC Address Table		8K
Packet forwarding cache		2Mbits
jumbo frame		9.2Kbytes
indicator light		Power indicator light: PWR (green); Network indicator light: L/A (green), PoE indicator light: PoE (yellow); Light port indicator light: SFP (green)
MTBF		100,000 hours
POE and power characteristics
POE port		Ports 1-8 support IEEE802.3af/at standard POE power supply
Power supply pin		Default 1/2 (+), 3/6 (-) 4-core power supply
Maximum PoE power per port		30W, Standard IEEE802.3af/at
Total power/input voltage		96W/120W (AC100-240V)
Total power consumption		Standby power consumption:<6W; Full load power consumption:<96W/120W
matching power supply		Built in switch power supply AC: 100-240V 50-60Hz 2.0A

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
