Description

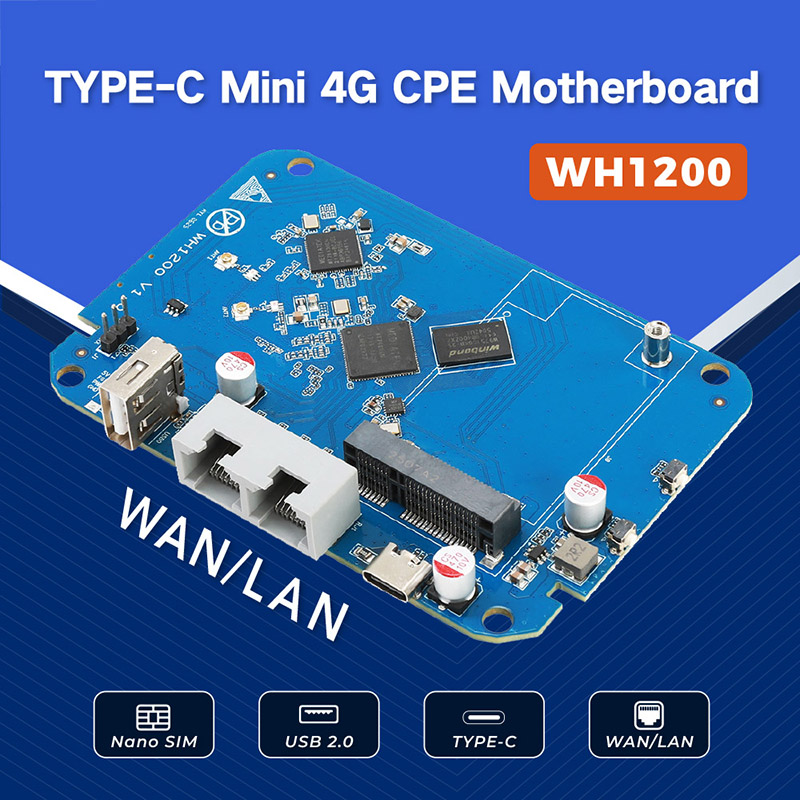

WH1200 is a portable CPE that uses Wi Fi 5 4G. Adopting MT7628AN dual core processor with a main frequency of 580MHz, it supports 160MHz and has excellent improvements in wireless speed and signal strength. It can meet the needs of connecting multiple devices in the home, and its portable and compact design also meets the requirements of optimizing the network for travel.

The core function of 4G CPE (especially the portable version) is to convert 4G LTE cellular mobile network signals into local Wi Fi and wired network signals to provide Internet access for multiple devices. Its “portable” features are mainly reflected in its built-in battery and compact and lightweight design, making it available for use anytime, anywhere

1. Portability reflected:lightweight and compact design

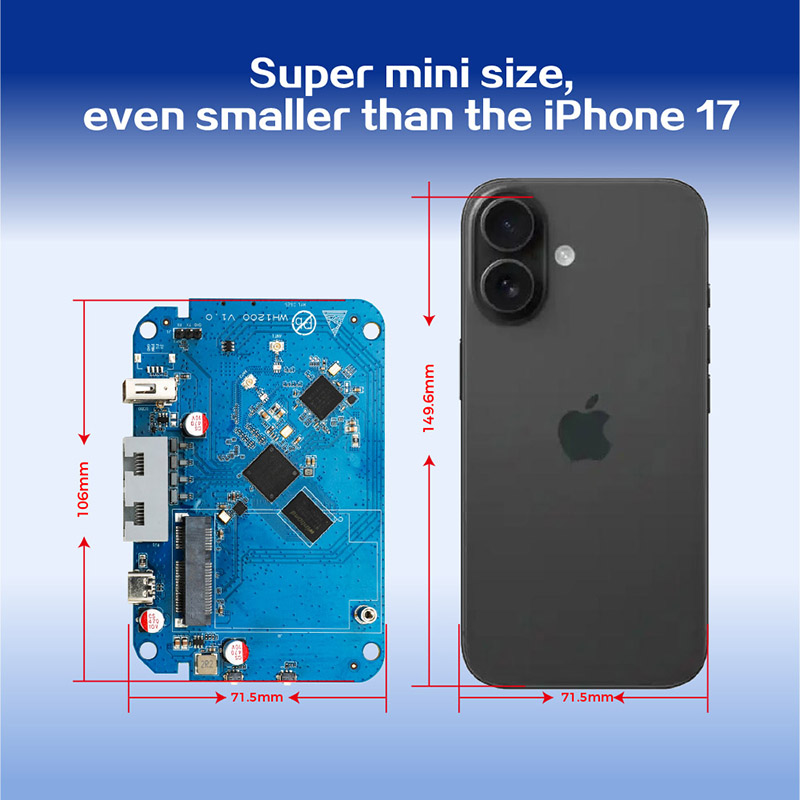

Compact size: Typically smaller in size than home routers, it is easy to fit into backpacks or handbags..
Lightweight: Lightweight and easy to carry.
Concise interface: The design is simple, with interfaces concentrated on the side or back for easy use and storage.

2. Management and Configuration

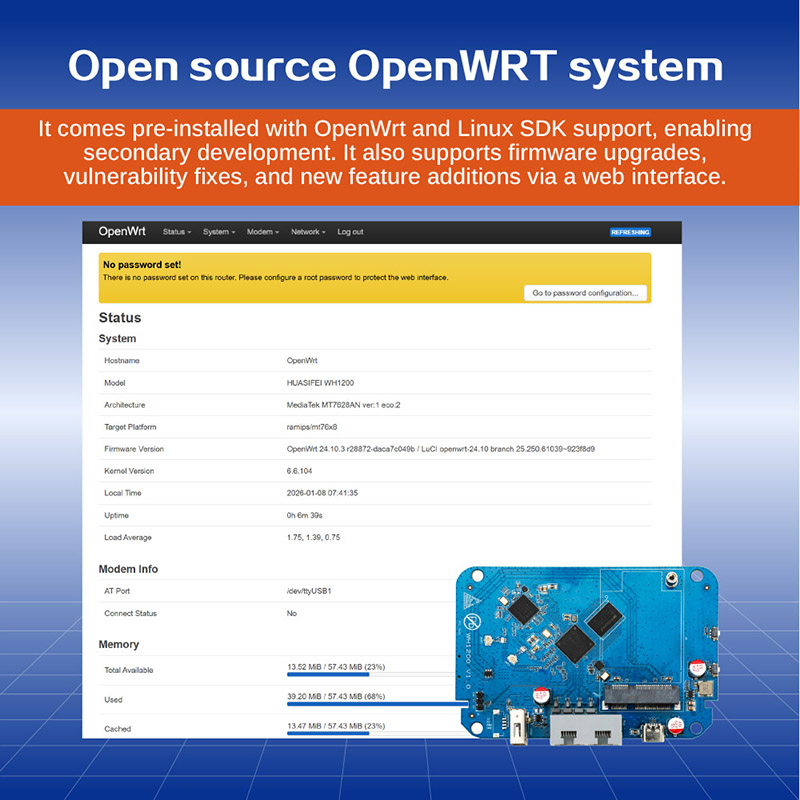

Web management interface: Users can access the built-in web management page through a computer or mobile browser (usually entering an IP address such as 192.168.1.1) to perform detailed network settings (Wi Fi settings, password changes, viewing connected devices, managing parental controls, setting up guest networks, etc.).
LED: There are usually LED indicator lights, 4G signal, Wi Fi status, network connection status and other information on the device.

3. Network Performance and Optimization

signal reception: External 4G/5G antenna to optimize signal reception capability, especially in areas with weak signals.
Wi Fi coverage: When designing, consider small coverage areas (such as in rooms, cars, tents) to provide stable Wi Fi signals.
NAT and Routing: Implement network address translation and basic routing functions, and manage the communication between intranet devices and the Internet.
DHCP server: Automatically assign local IP addresses to connected devices.

4. Other common functions

SMS function: Some models support receiving and even sending text messages (on the web interface), making it convenient to manage SIM card related services.
Traffic statistics: Monitor the total traffic of monitoring devices or the traffic usage of individual connected devices to help users manage data packages.
Guest Network: Create an independent Wi Fi network for visitors to use, isolated from the main network, to enhance security.
Parental control/access control: Restrict the internet usage time of specific devices or access to specific websites (the strength of functionality varies depending on the model).
Firmware Upgrade: Support firmware upgrades, fixing vulnerabilities, or adding new features through a web interface.
In summary, the core value of 4G portable CPE lies in:
Connect anytime, anywhere: Utilize ubiquitous 4G/5G mobile networks to break free from fixed broadband location limitations.
Multi device sharing: Efficiently share a single mobile network connection with multiple Wi Fi or wired devices..
True freedom of movement: The lightweight design allows it to be quickly deployed and used in various scenarios such as in vehicles, outdoors, travel, exhibitions, temporary office locations, emergency backup, etc. without an external power source.
plug and play: Relatively simple setup (card insertion, power on, connection), no need for complex wiring.
It is essentially a mobile, self powered personal/small team network center that solves the internet needs in scenarios where fixed broadband cannot cover or access is inconvenient, as well as providing shared network connections for multiple devices on the move.

Specification

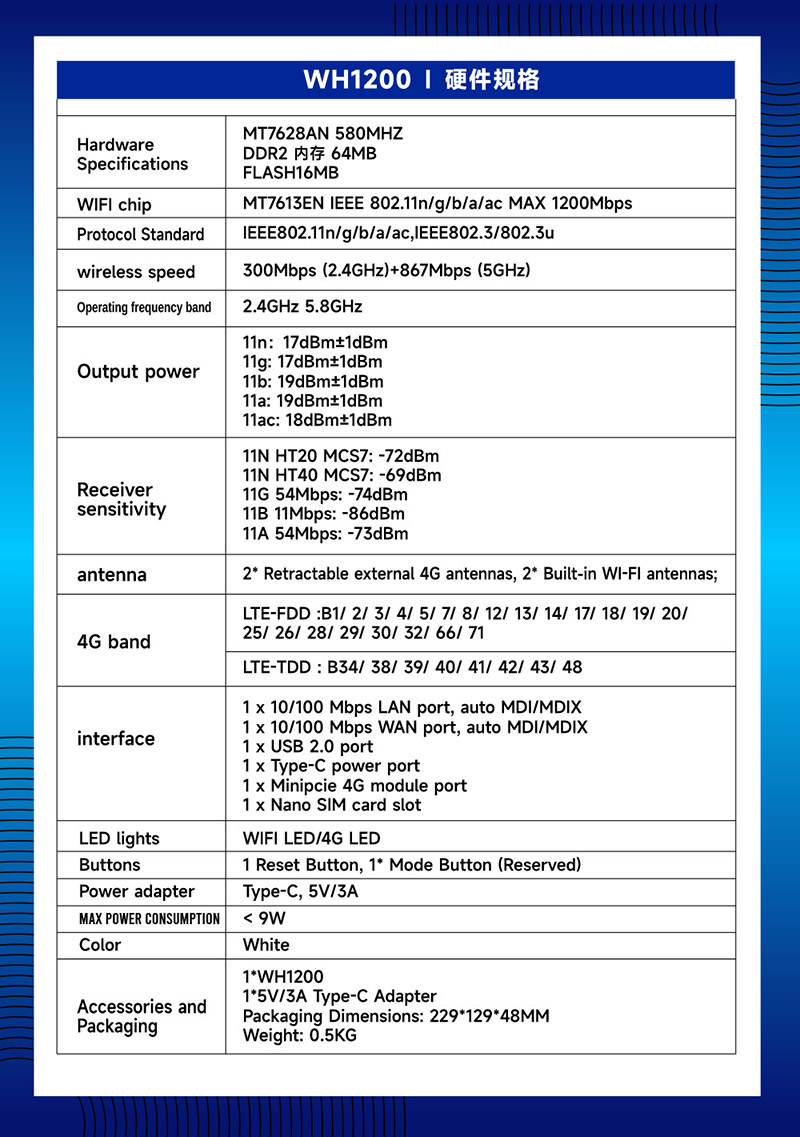

WH1200 Hardware specifications
Hardware specifications	MT7628AN 580MHz DDR2 Memory 64MB FLASH 16MB
WIFI chip	MT7613EN IEEE 802.11n/g/b/a/ac MAX 1200Mbps
Protocol standards	IEEE802.11n/g/b/a/ac,IEEE802.3/802.3u
output power	11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm
receiver sensitivity	11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm
4G frequency band	LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71
4G frequency band	LTE-TDD B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48

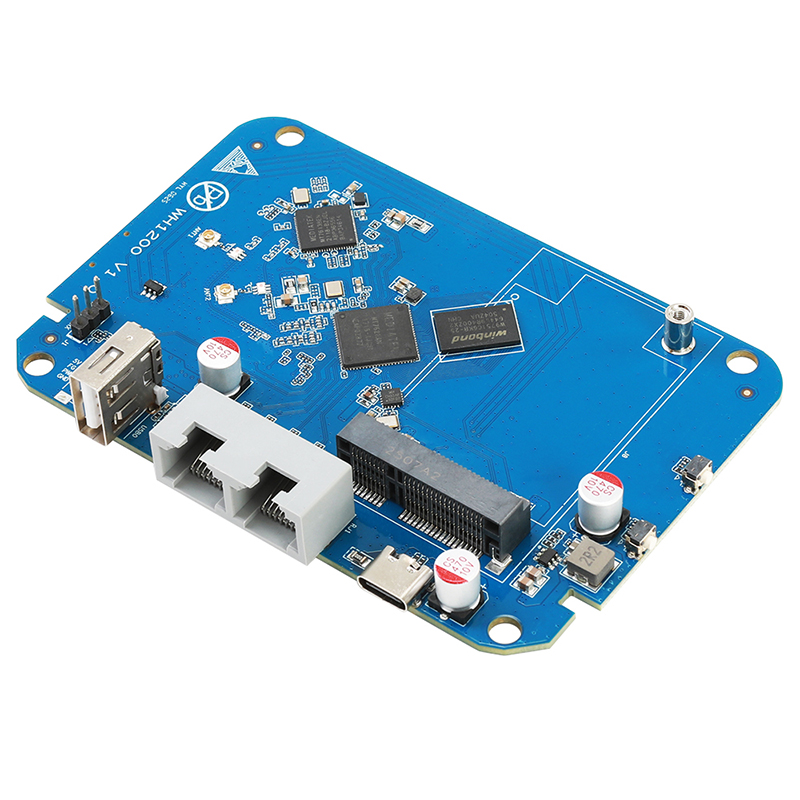

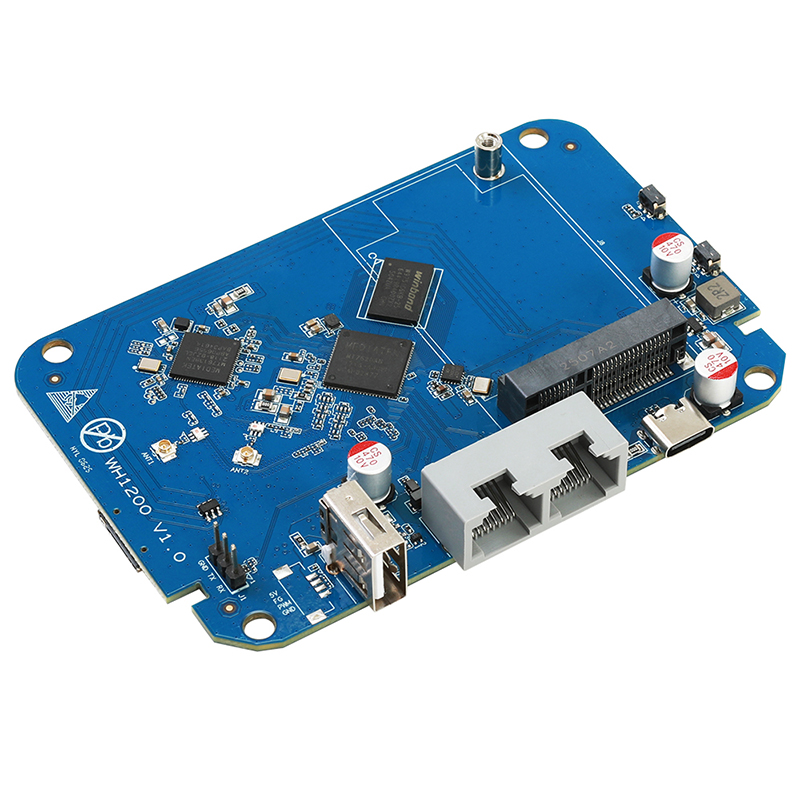

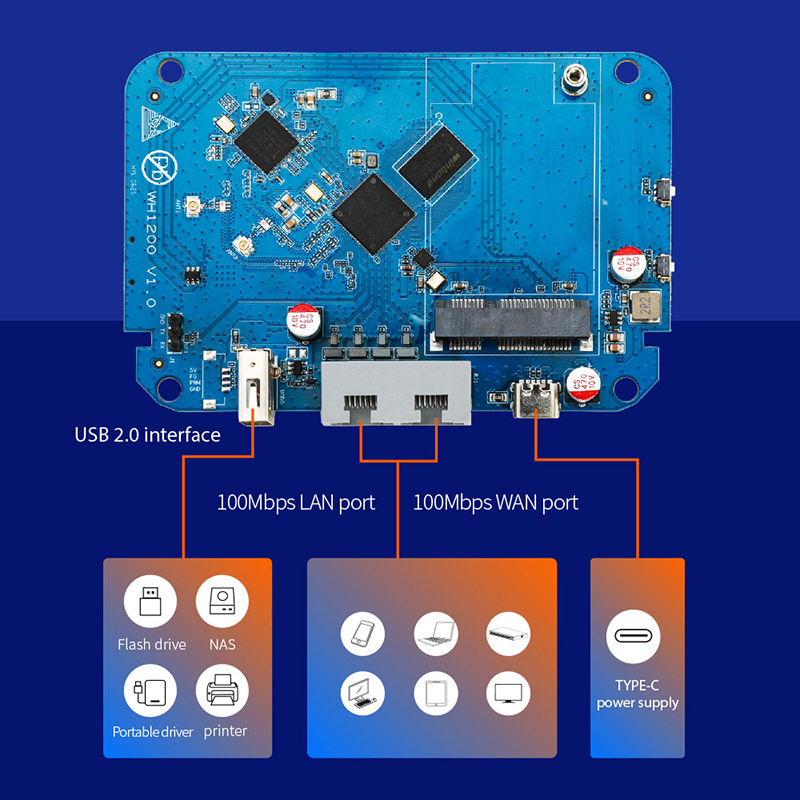

interface	1 * 10/100Mbps LAN port, automatic MDI/MDIX, 1 * 10/100Mbps WAN port, automatic MDI/MDIX, 1 * USB 2.0 interface 1 * Type-C power interface 1 * Minipcie 4G module interface 1 * Nano SIM card slot
LED lamp	WIFI LED/4G LED
key	1reset button, 1 mode button (reserved)
The power adapter	Type-C, 5V/3A
Maximum power consumption	< 9W

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.

Industrial Router

Home Router

Outdoor Wireless

Industrial Switch

HUASIFEI MT7987B WIFI7 BE3600 Parameter Introduction

The 5G Wi-Fi 6 router has remarkable features and is well recognized by the market!

Hotel wireless network construction plan

Scenic area wireless network construction plan

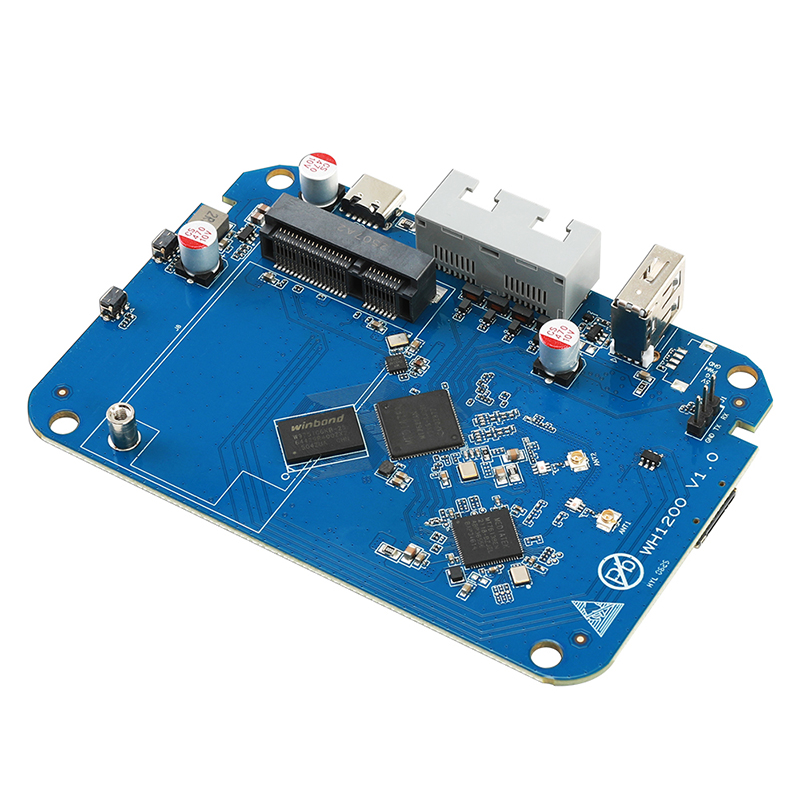

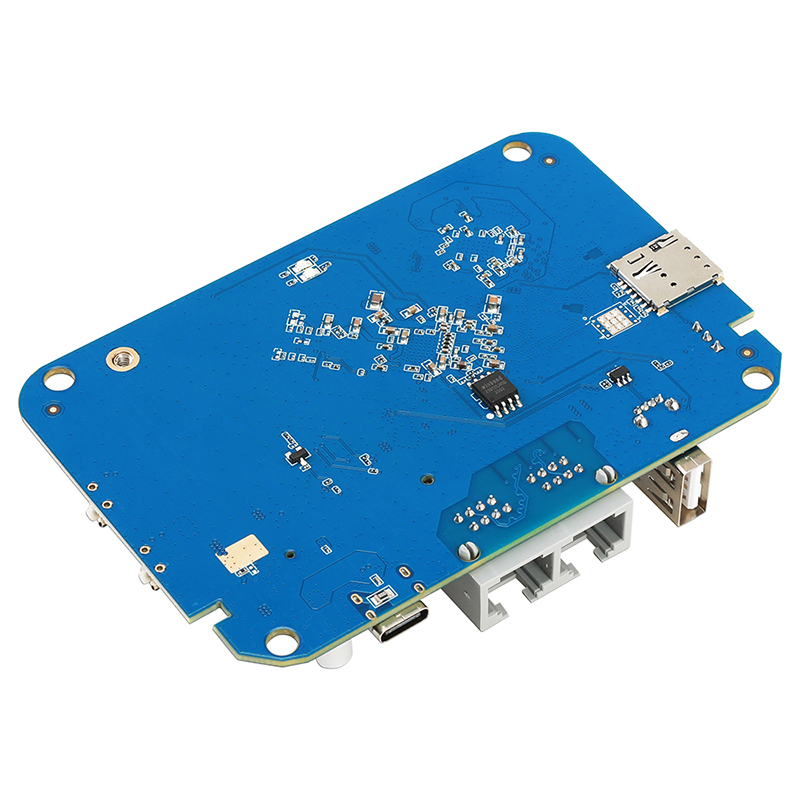

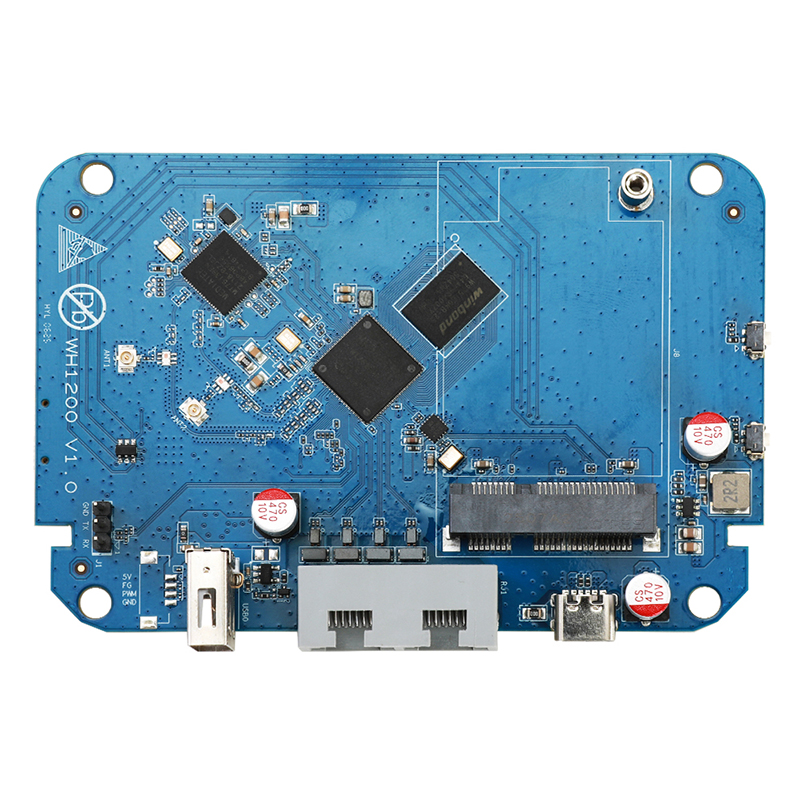

WH1200 4g Router PCBA
