Description

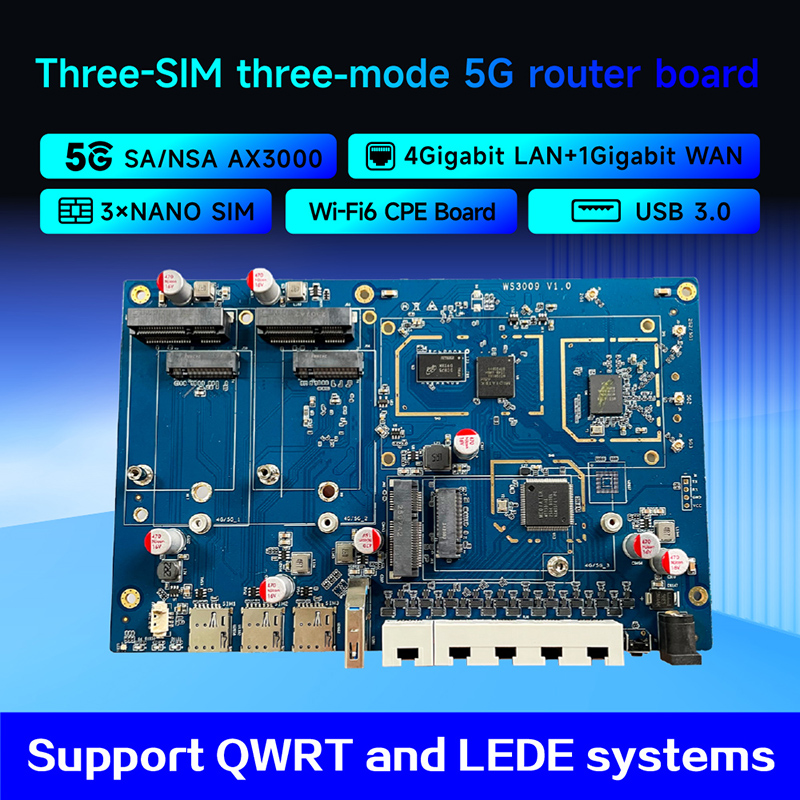

The WS3009 is a 4G/5G router that supports three SIM cards, functioning as a wireless networking device capable of simultaneously supporting three SIM cards—either three 4G modules or three 5G modules. It is specifically designed for high-performance and reliable network connectivity. Below are its key features and functionalities:

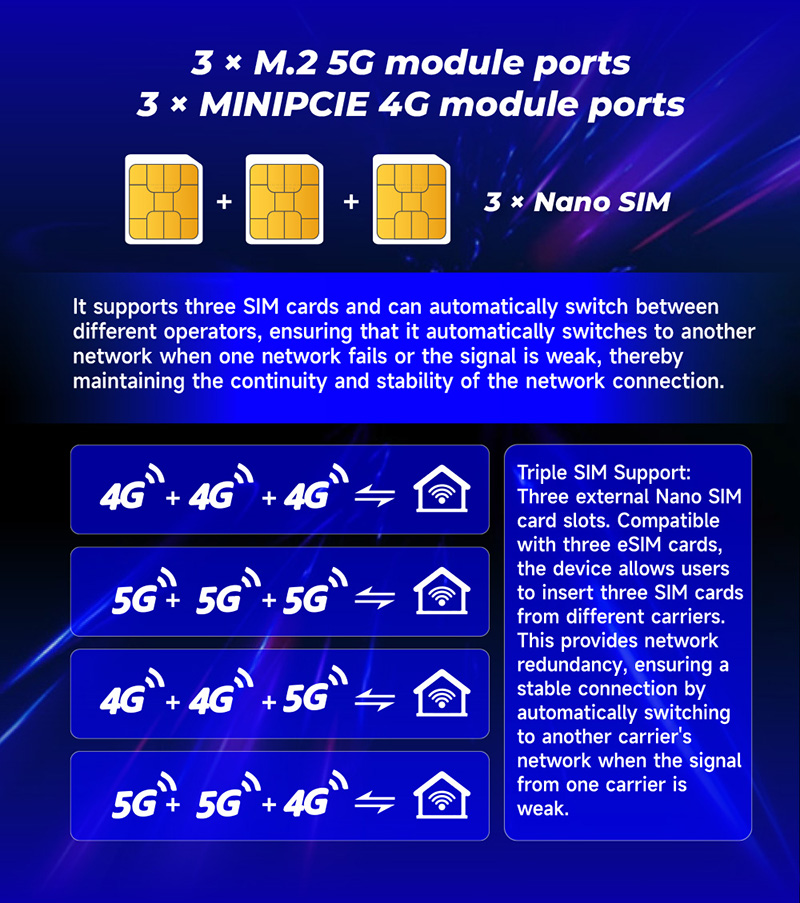

1. Triple SIM Card Support: Features three external Nano SIM card slots. Compatible with three eSIM cards, allowing users to insert SIM cards from three different carriers. This enables network redundancy, ensuring automatic switching to another carrier’s network when the signal from one carrier is weak, providing stable connectivity.

2. 5G Network Support: The router can connect to the latest 5G network, delivering ultra-fast internet speeds. Supporting 5G networks, it provides high-speed data transmission capabilities, ideal for industrial applications requiring low latency and high bandwidth, such as remote monitoring, real-time data transfer, and HD video streaming.

3. Network Redundancy: Supports three SIM cards, enabling automatic switching between different carriers to ensure seamless and stable network connectivity in case of a failure or weak signal.

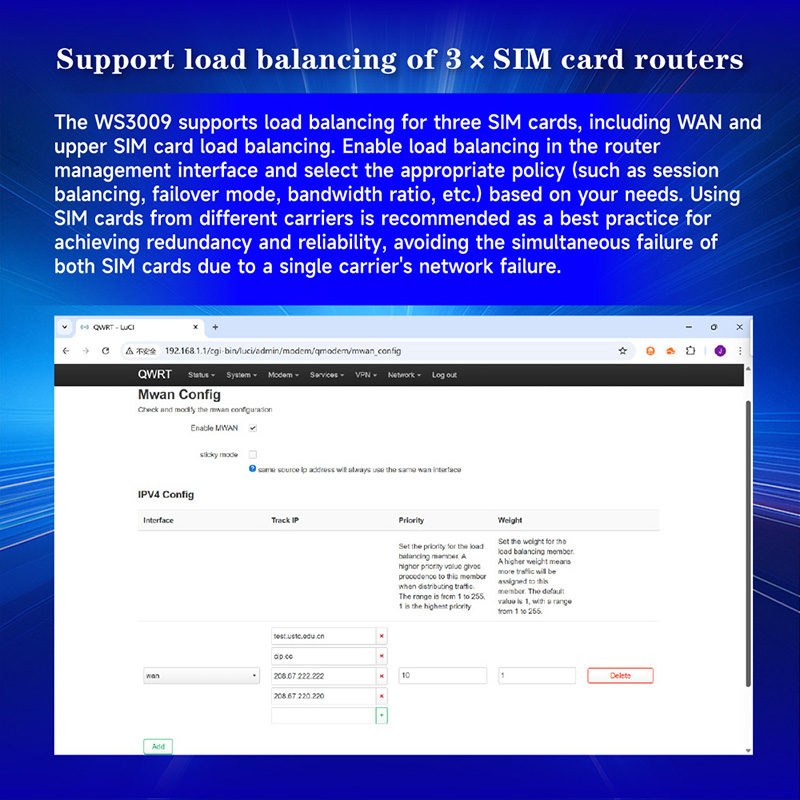

4. Load Balancing: Capable of distributing traffic between two SIM cards, optimizing network resource utilization and improving overall network performance.

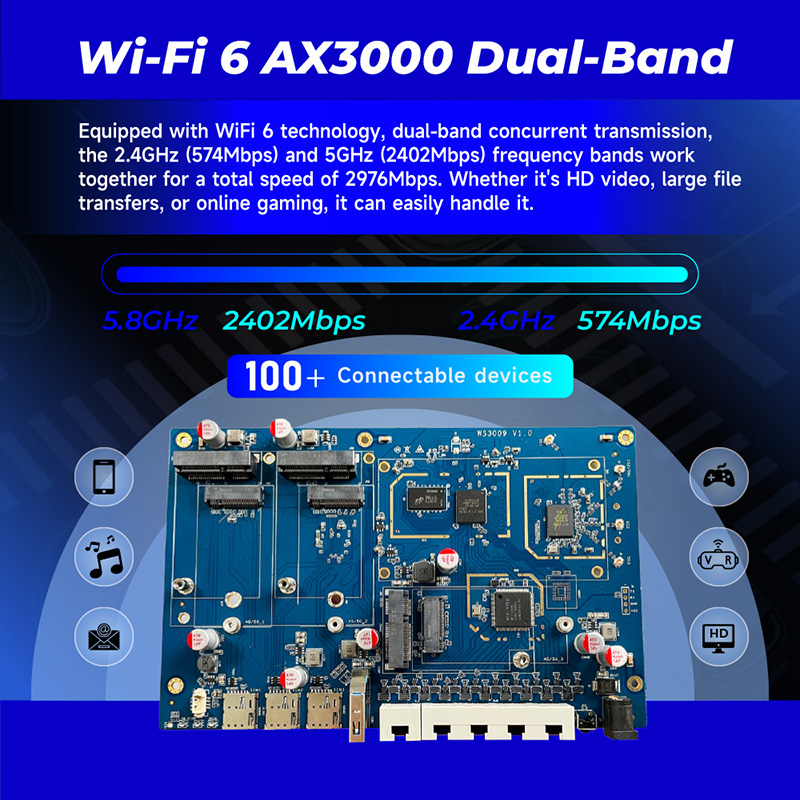

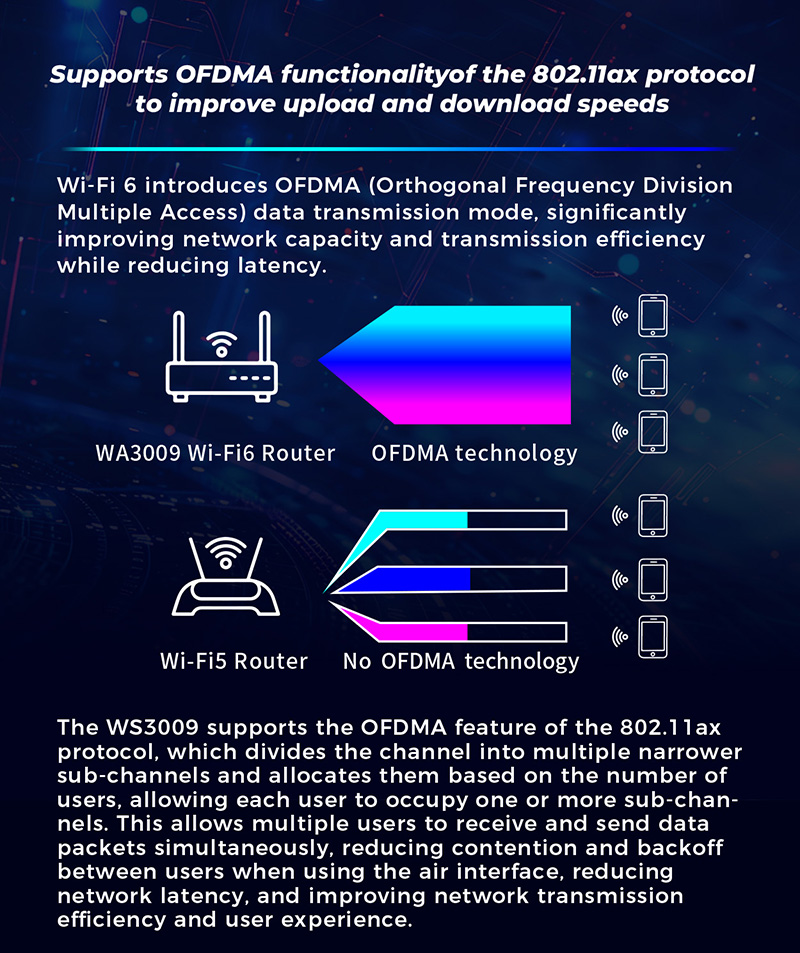

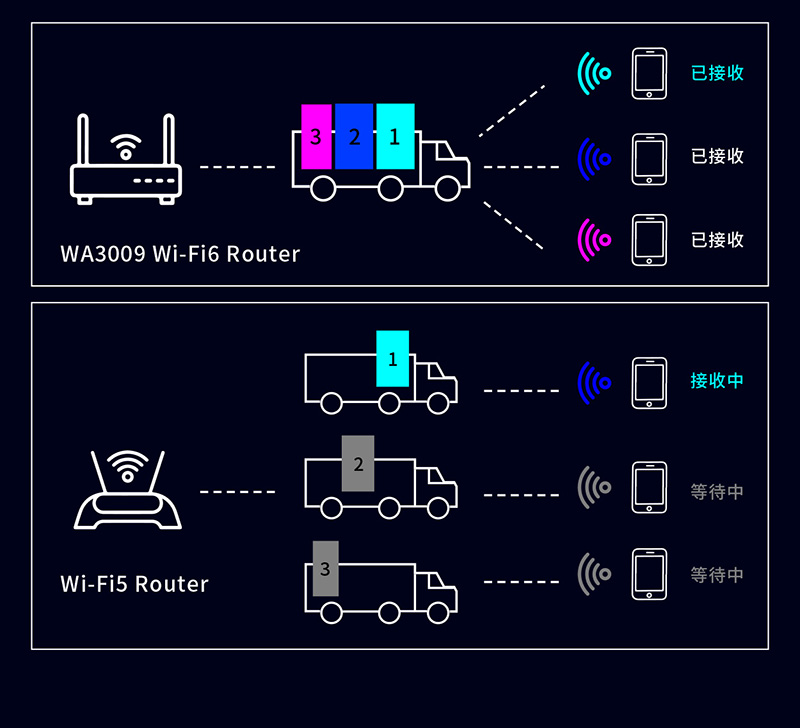

5. High-Speed Wi-Fi Transmission: In addition to 5G networks, the router also supports the latest Wi-Fi standards (such as Wi-Fi 6), providing high-speed wireless network coverage for home or office environments. It can support multiple devices connecting simultaneously without significantly reducing speed.

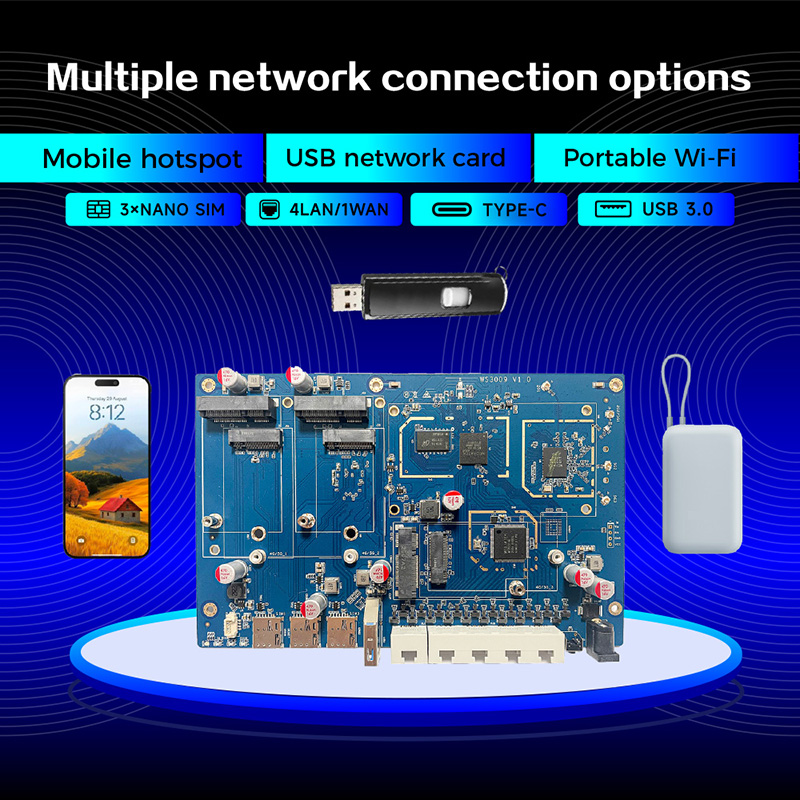

6. Multiple Connection Ports: Typically equipped with multiple Ethernet ports for wired connections, and may also include USB ports for connecting external devices.

7. Enhanced security features: Built-in firewall, VPN support, parental controls, and guest network functionality ensure safe internet usage for users.

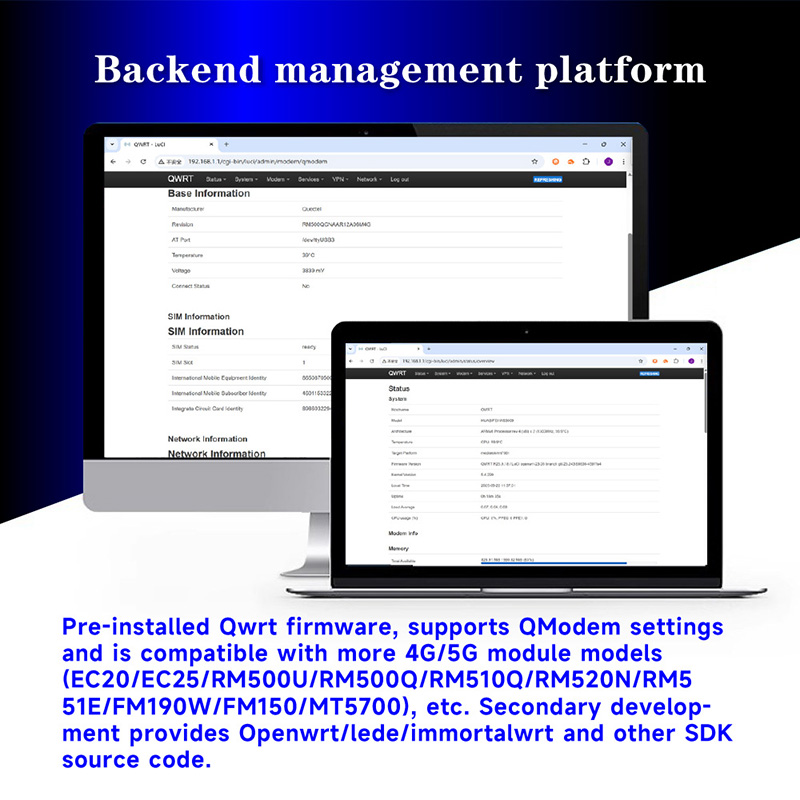

Easy to manage and configure: Most three SIM 5G routers are equipped with user-friendly management interfaces, which can usually be remotely managed through mobile applications or web pages, making it convenient for users to set up and monitor network status.

The three SIM card 5G industrial router is very suitable for scenarios that require high reliability and stability, such as remote monitoring, industrial automation, energy management, intelligent transportation, and security monitoring.

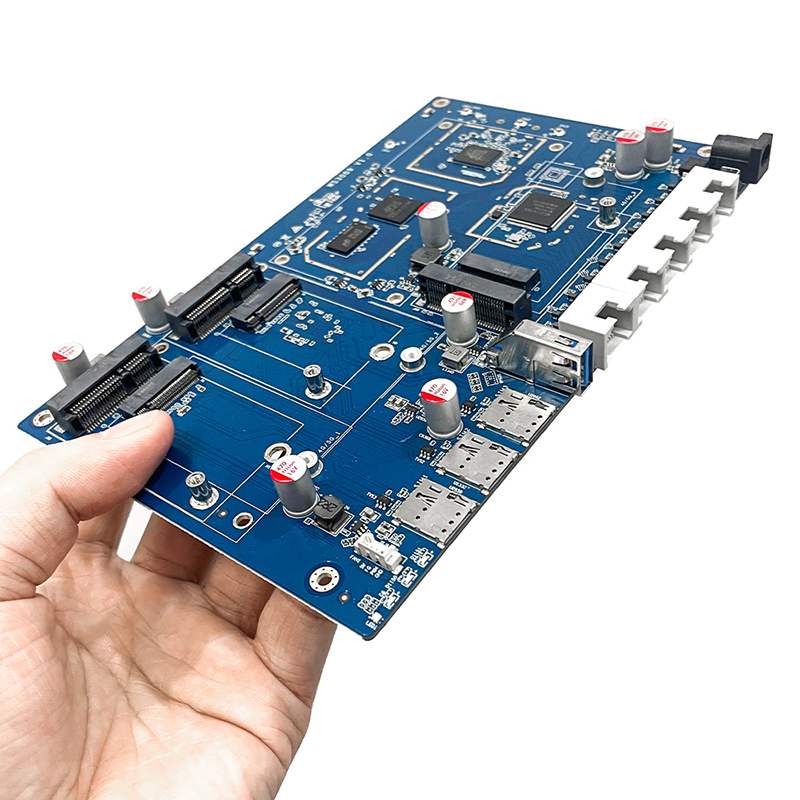

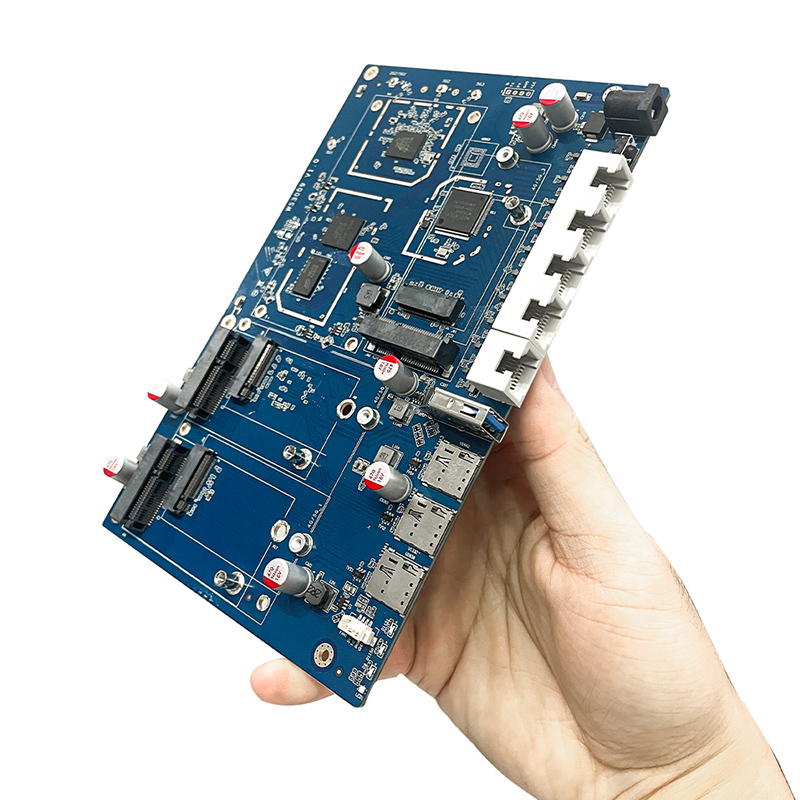

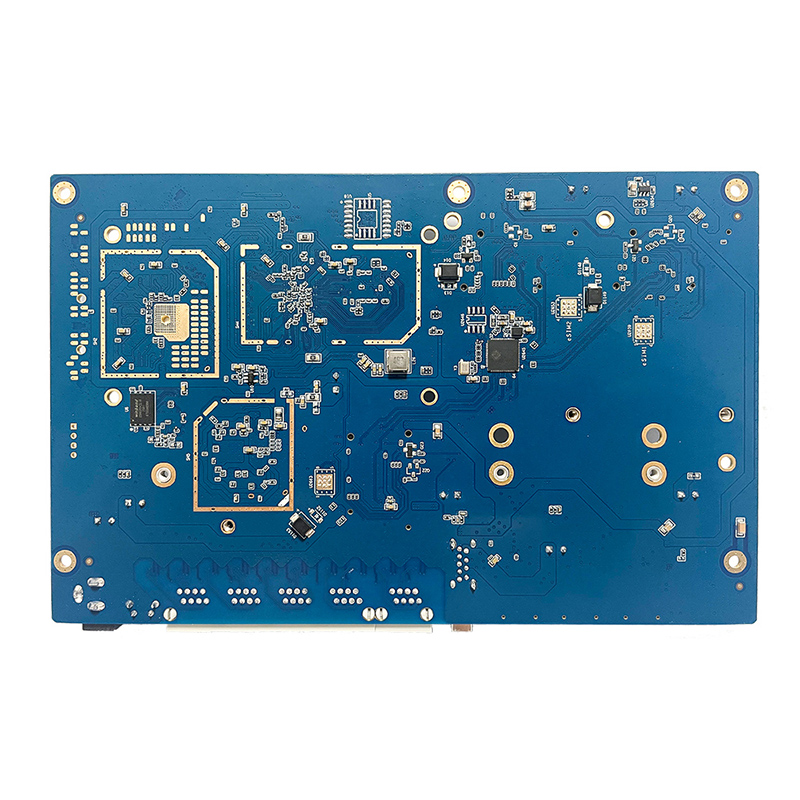

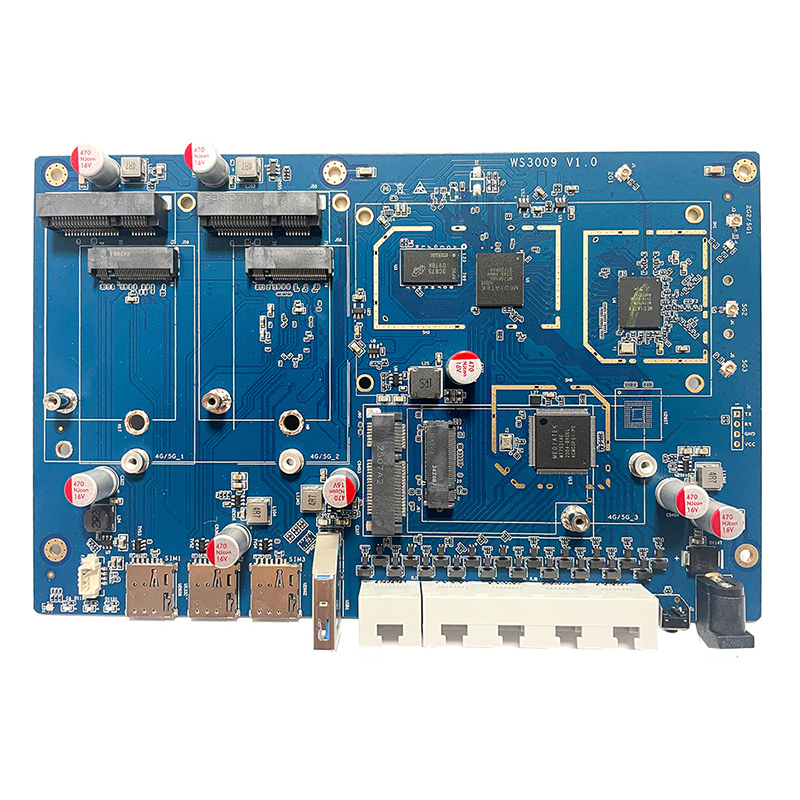

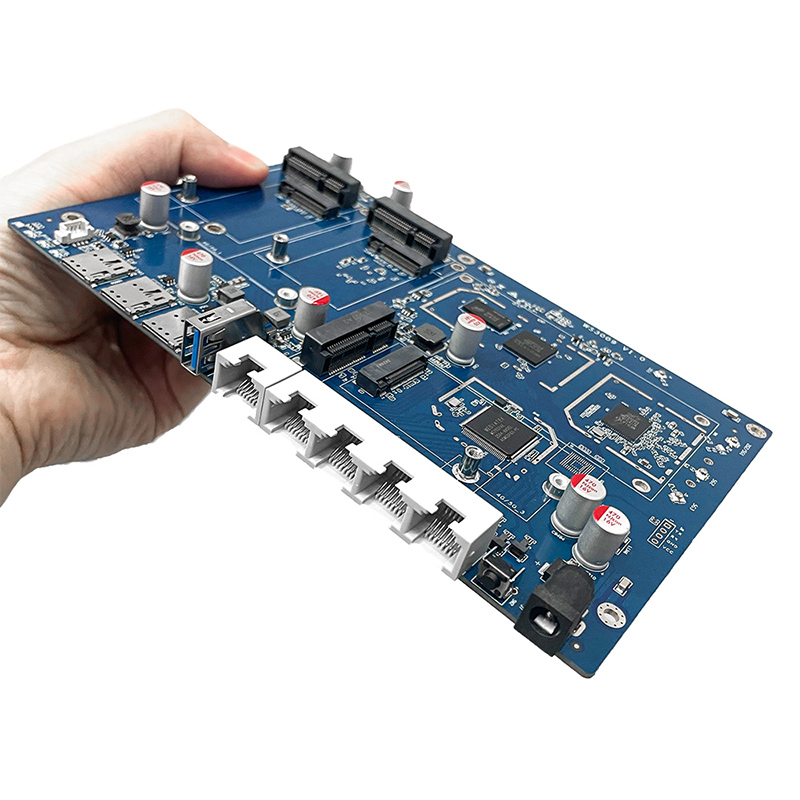

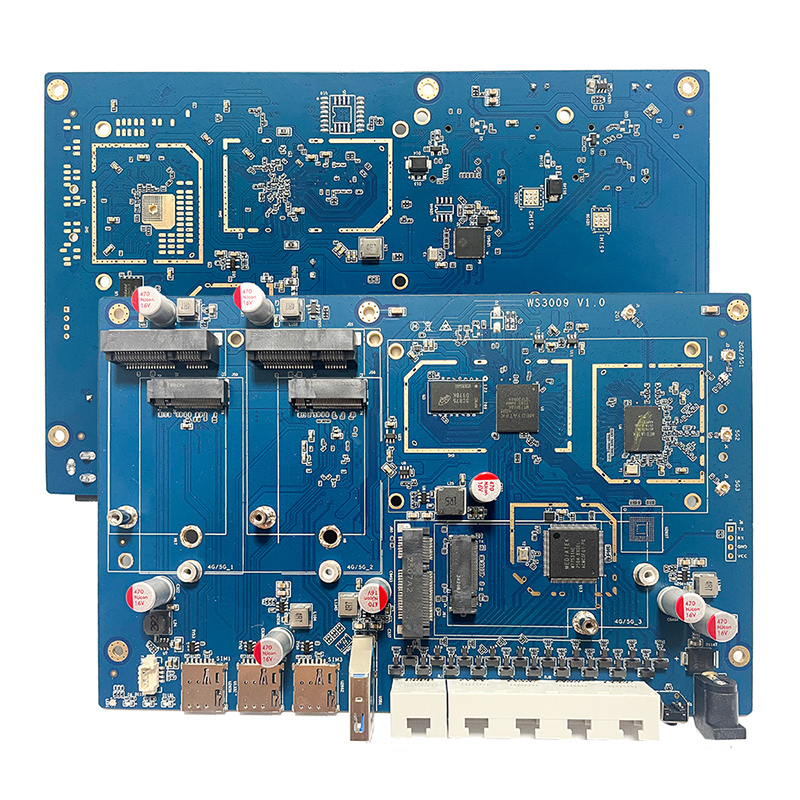

Hardware Description

Using MT7981B main chip, with a main frequency of up to 1.3GHz; Equipped with an independent MT7976CN WIFI6 chip;

High speed 1GB DDR4256MB SPI Nand Flash;

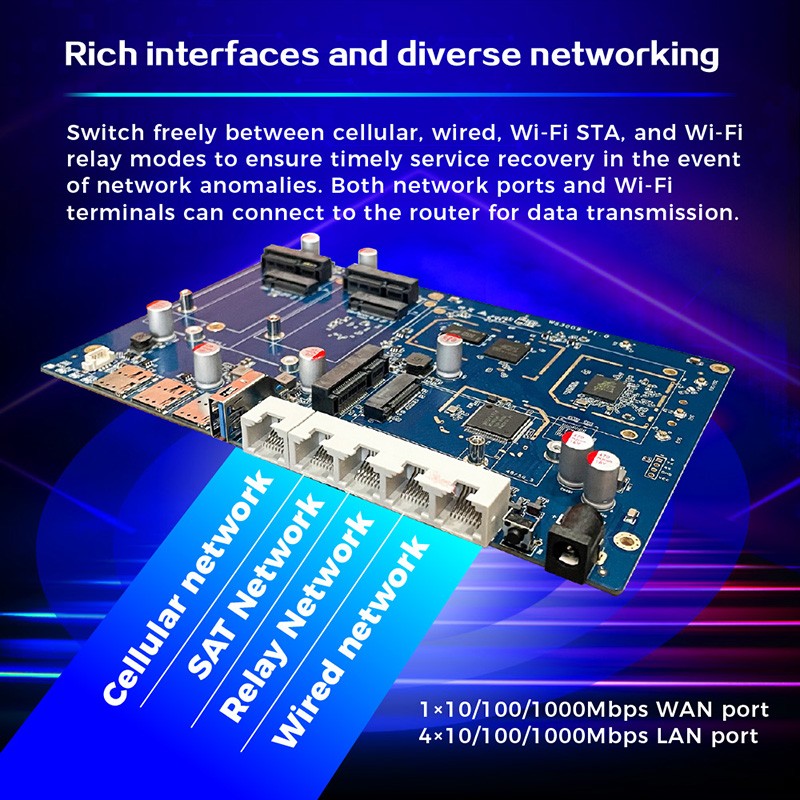

1 WAN 100Mbps/1000Mbps adaptive network port;

4LAN 100/1000 Mbps adaptive network port;

Support “one click flash mode”, long press the reset button to enter recovery mode;

Built in 3 * M.2 5G module interface and 3 * MiniPCIE 4G module interface, used for installing 4G and 5G cellular modules;

External 3 standard Nano SIM card slots, reserved for Esim design, can be customized according to customer needs;

Supports USB 3.0 interface;

Specification

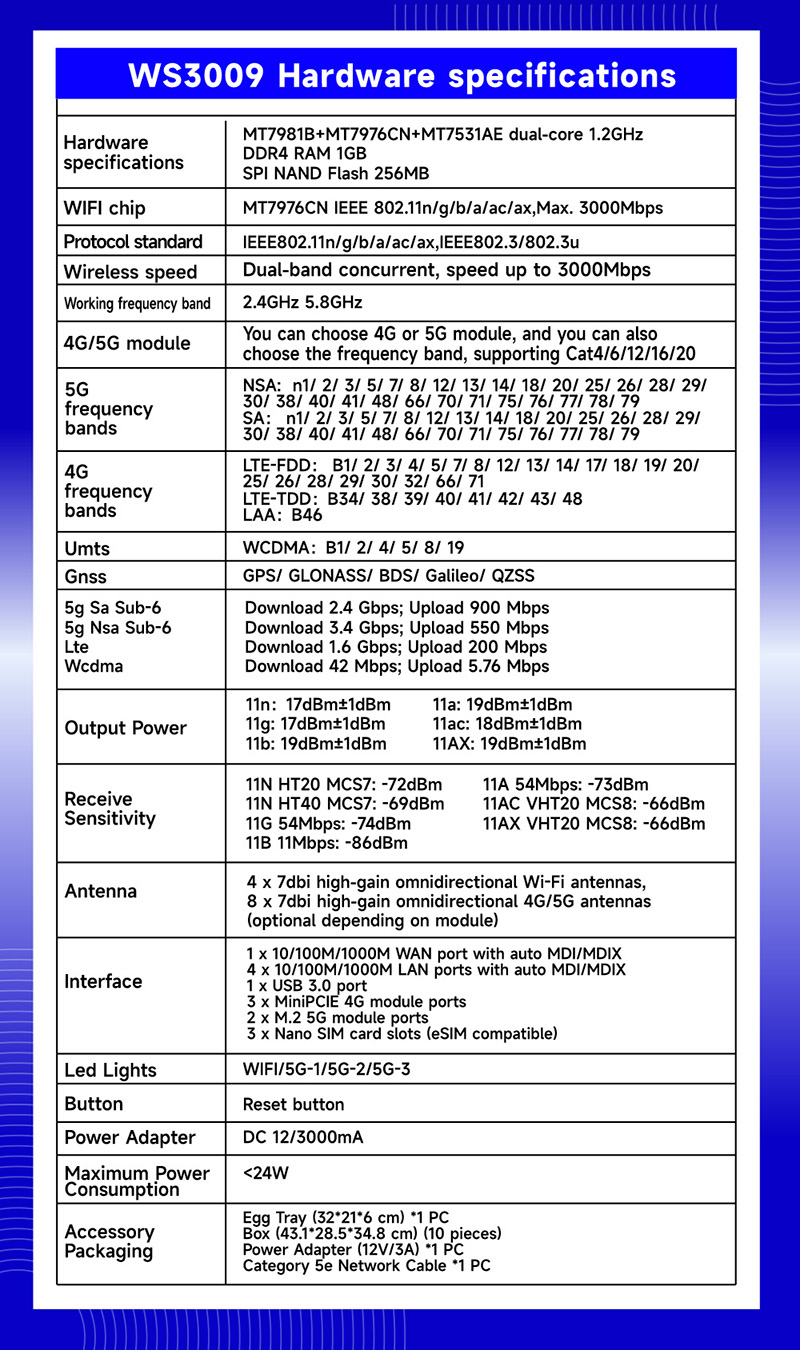

WS3009 Hardware Specifications
Hardware Specifications	MT7981B+MT7976CN+MT7531AE dual core 1.2GHZ DDR4 memory 1GB SPI NAND flash 256MB
WIFI chip	MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps
protocol standard	IEEE802.11n/g/b/a/ac/ax,IEEE802.3/802.3u
wireless speed	Dual band concurrency, with a speed of up to 3000Mbps
operating frequency band	2.4GHz 5.8GHz
4G/5G module	4G or 5G modules can be selected, and frequency bands can also be chosen, supporting Cat4/6/12/16/20
GNSS	GPS/ GLONASS/ BDS/ Galileo/ QZSS
5G SA Sub-6 5G NSA Sub-6 LTE WCDMA	Download 2.4 Gbps; Upload 900 Mbps Download 3.4 Gbps; Upload 550 Mbps Download 1.6 Gbps; Upload 200 Mbps Download at 42 Mbps; Upload 5.76 Mbps
output power	11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm 11AX: 19dBm±1dBm
reception sensitivity	11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm 11AX VHT20 MCS8: -66dBm

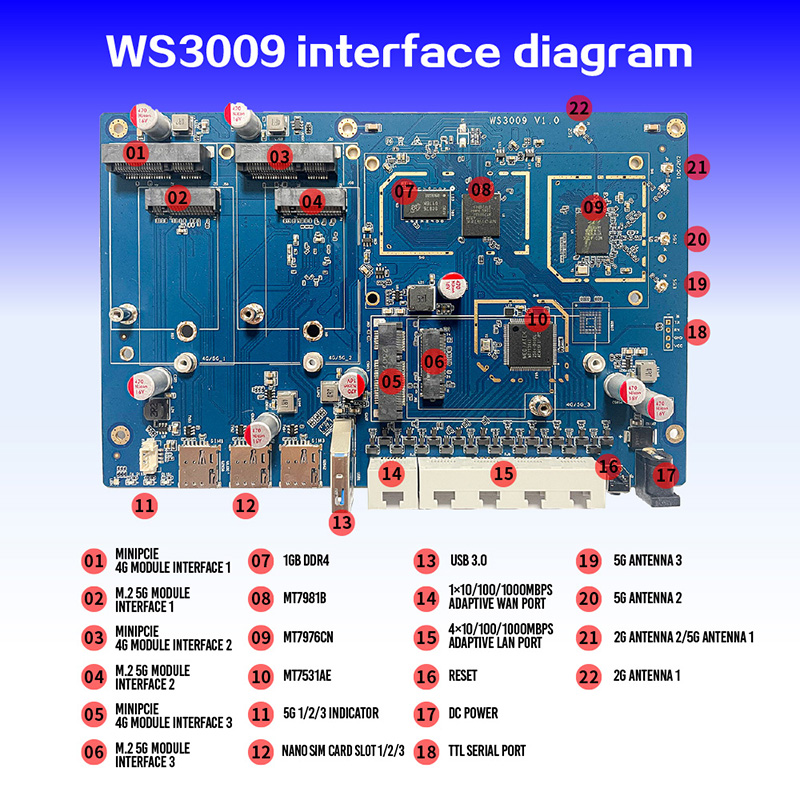

interface	1 * 10/100M/1000M WAN port, automatic MDI/MDIX, 4 * 10/100M/1000M LAN ports, automatic MDI/MDIX, 1 * USB 3.0 interface 3 * MiniPCIE 4G module interface 2 * M.2 5G module interface 3 * Nano SIM card slot (compatible with ESIM)
LED lights	WIFI/5G-1/5G-2/5G-3
button	Reset button
power adapter	DC 12/3000mA
Maximum power consumption	< 24W

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
