Description

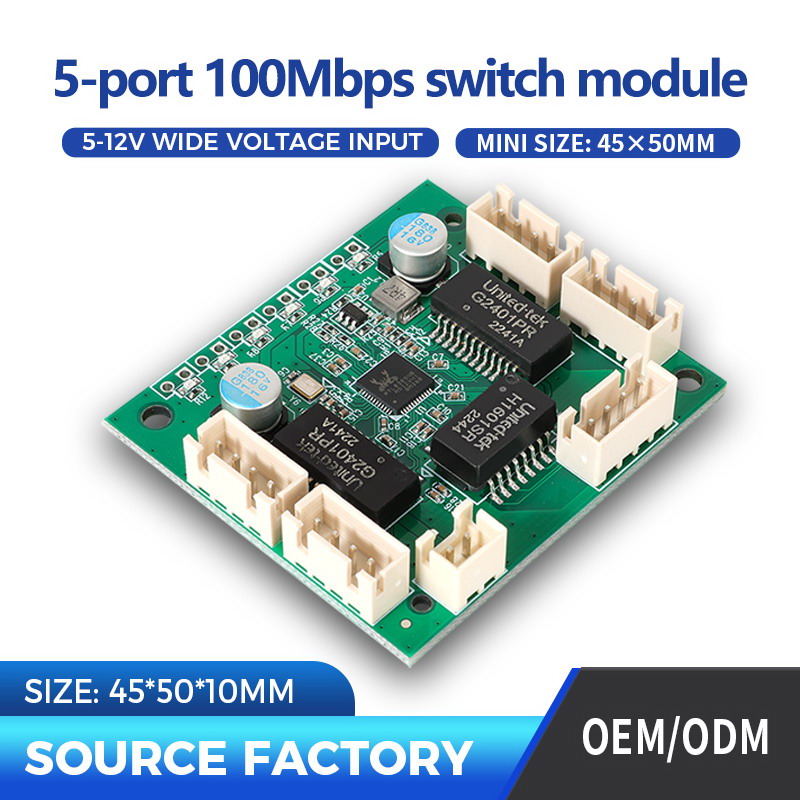

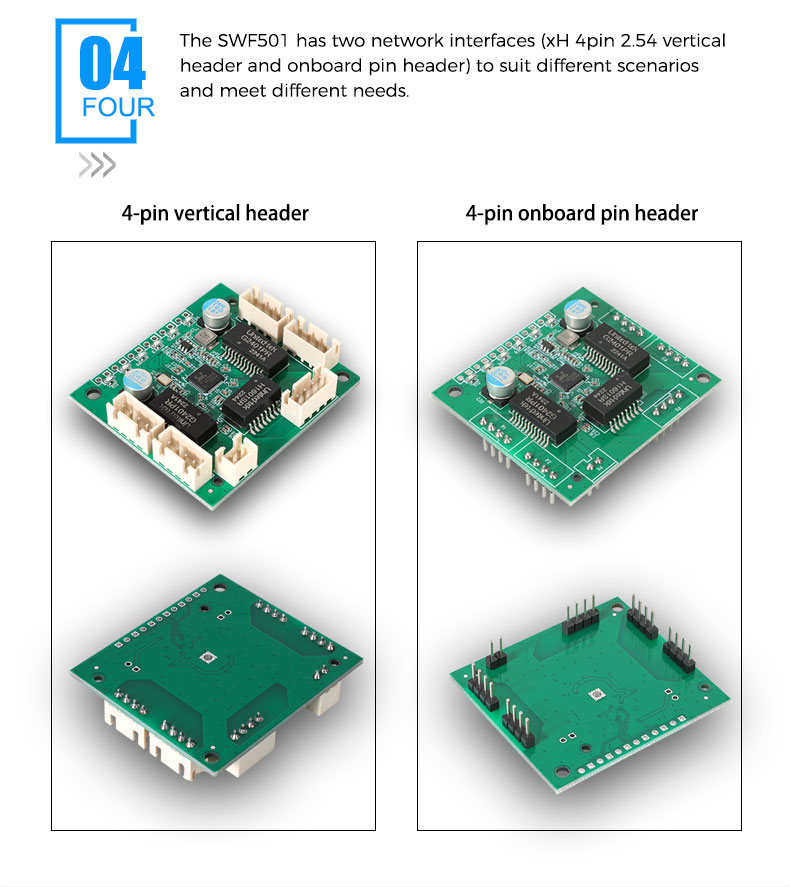

The SWF501-1 series are 5-port Fast Ethernet switch modules. This series offers two product variants for selection: an XH2.54mm 4-pin port version and a board-mounted 4-pin pin header version. They feature high integration, compact size, rich functionality, and simplicity. Utilizing an embedded installation method, users can customize the specifications of the main PCB. The Ethernet interface type can be flexibly selected via the module pins to meet the requirements of different application scenarios.

All ports of this switch support half-duplex flow control and full-duplex backpressure standards, enhancing compatibility with bandwidth servers and network protocols. Additionally, LED indicators facilitate the diagnosis of individual port and overall system operational status. The product is energy-efficient and environmentally friendly.

Key Features

Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x.
5 x 10/100M Base-T XH2.54mm 4-pin female header ports (Data/Power).
2K MAC Address Table with MAC Address Auto-Learning.
1Gbps Non-Blocking Wire-Speed Forwarding Backplane Bandwidth.

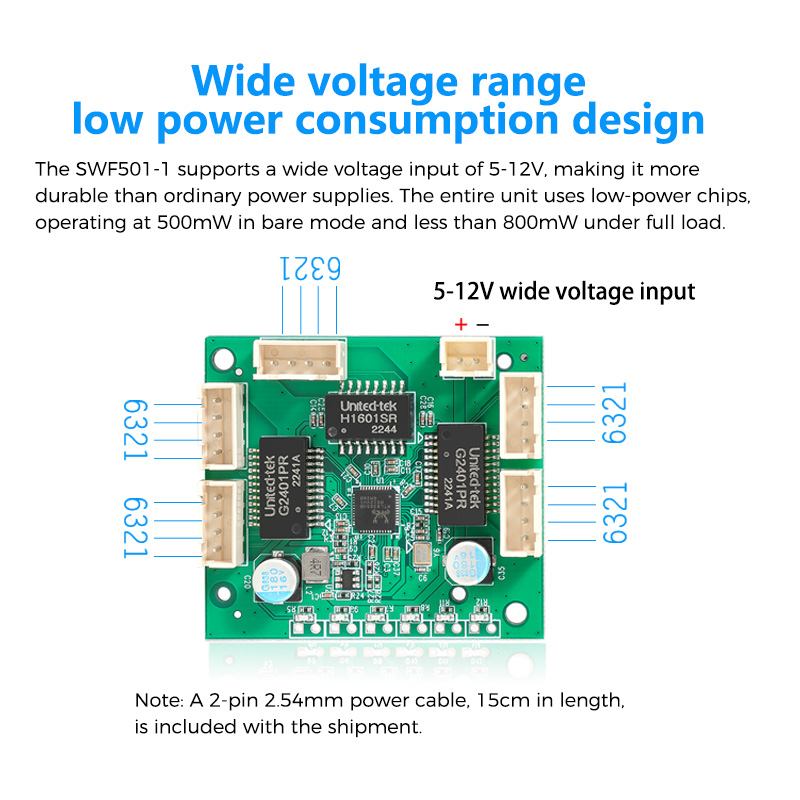

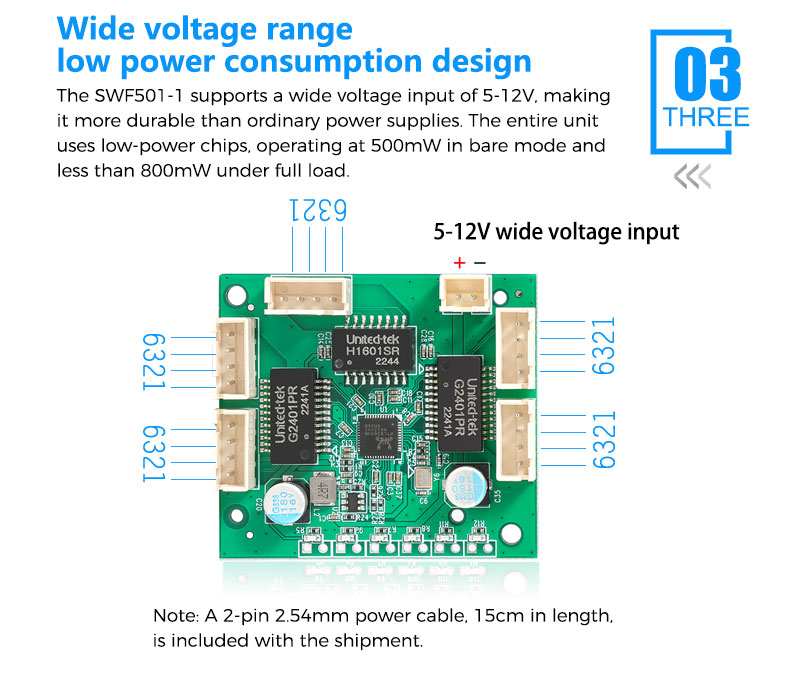

External Power Supply DC 5-12V (XH2.54 2-pin female header).
Module PCB Dimensions: 45*50*10mm (L*W*H).

Product Characteristics

Practical Choice, Superior Performance

Provides 5 auto-negotiating 10/100M Base-T XH2.54mm 4-pin female header ports, offering users flexible networking to meet various scenario requirements. All ports support non-blocking wire-speed forwarding for smoother transmission. Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

Plug-and-Play, No Configuration Required

Supports auto-negotiating 10/100M Base-T XH2.54mm 4-pin female header ports. Each port supports Auto MDI/MDIX and provides full wire-speed Fast Ethernet switching capability. Plug-and-play, requiring no management, ensures all ports forward data without blocking. Users can easily understand the device status via the Power indicator (PWR) and port status indicators (Link, L/A).

Modular Design, Compact and Refined

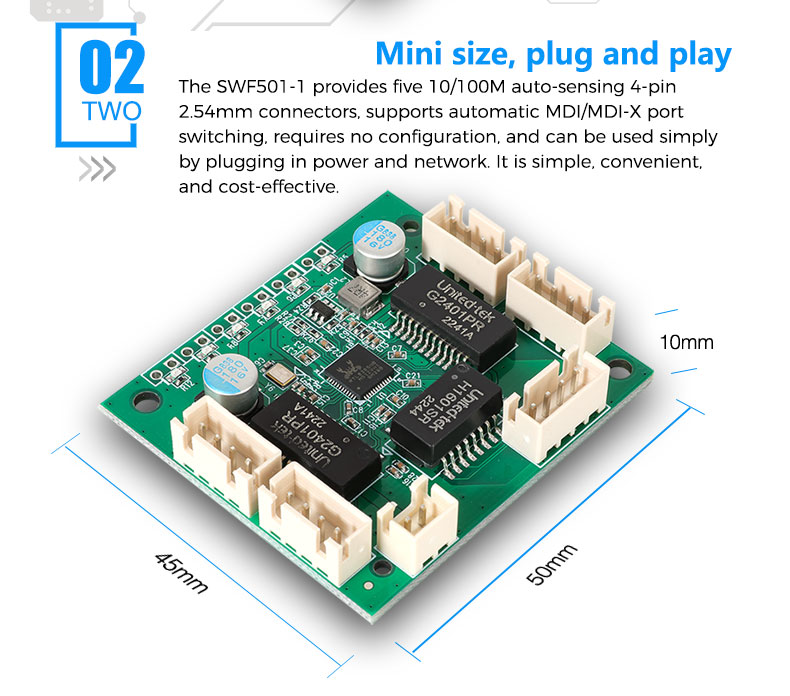

Utilizes store-High integration and compact size, dimensions only 45*50*10mm. Uses embedded installation; users can customize the main PCB specifications and flexibly select the Ethernet interface type via module pins to meet the needs of different application sites.

Industrial Design, Wide Application

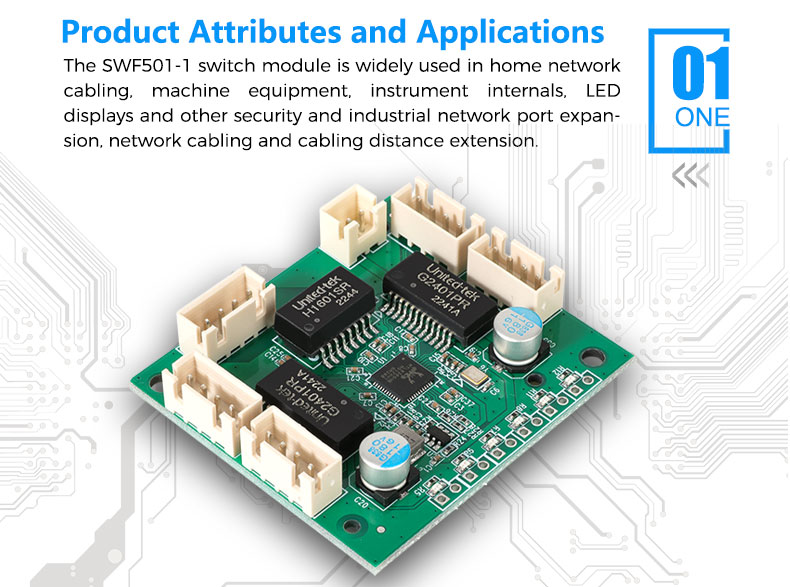

Hardware features fanless, low-power, wide-temperature, and wide-voltage design. Having passed rigorous industry-standard tests, it can adapt to harsh industrial site environments with strict EMC requirements. Widely applicable in industrial fields such as smart grids, rail transit, smart cities, safe cities, new energy, and smart manufacturing.

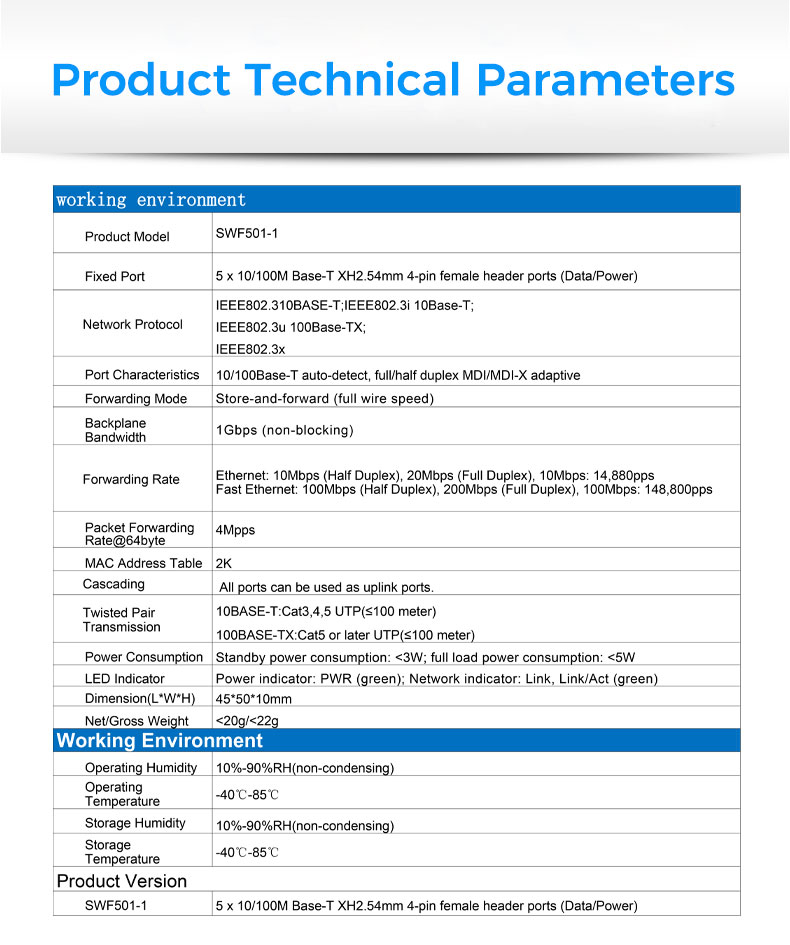

Specifications

working environment
Product Model	SWF501-1
Fixed Port	5 x 10/100M Base-T XH2.54mm 4-pin female header ports (Data/Power)
Network Protocol	IEEE802.310BASE-T;IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x
Port Characteristics	10/100Base-T auto-detect, full/half duplex MDI/MDI-X adaptive
Forwarding Mode	Store-and-forward (full wire speed)
Backplane Bandwidth	1Gbps (non-blocking)
Forwarding Rate	Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex), 10Mbps: 14,880pps Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex), 100Mbps: 148,800pps
Packet Forwarding Rate@64byte	4Mpps
MAC Address Table	2K
Cascading	All ports can be used as uplink ports.
Twisted Pair Transmission	10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter)
Power Consumption	Standby power consumption: <3W; full load power consumption: <5W
LED Indicator	Power indicator: PWR (green); Network indicator: Link, Link/Act (green)
Dimension(LWH)	455010mm
Net/Gross Weight	<20g/<22g
Working Environment
Operating Humidity	10%-90%RH(non-condensing)
Operating Temperature	-40℃-85℃
Storage Humidity	10%-90%RH(non-condensing)
Storage Temperature	-40℃-85℃
Product Version
SWF501-1	5 x 10/100M Base-T XH2.54mm 4-pin female header ports (Data/Power)

FAQ

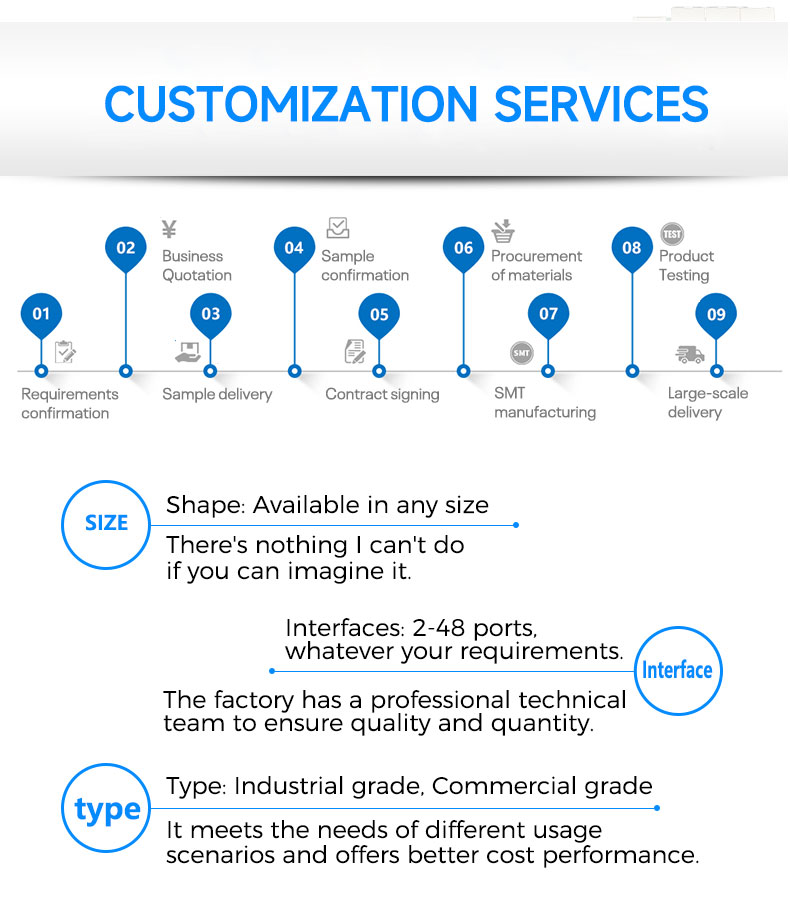

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
