Description

The 5G WiFi6 router is based on a new embedded platform to meet the growing demand for mobile devices.
The CPE is NSA/SA dual-mode compatible for all network types worldwide, which means you can enjoy ultra-fast broadband

connectivity wherever you are by simply plug-and-playing.
Enjoy an ultra-fast broadband connection anywhere.

CPE brings new ways to experience VR/AR/4K/8K streaming freely and easily. Built-in 802.11ax (Wi-Fi 6) Technology,

Single CPEWith built-in 802.11ax (Wi-Fi 6) technology, a single CPE delivers more wireless coverage and more bandwidth. At the same time, CPE also brings higher security, better network

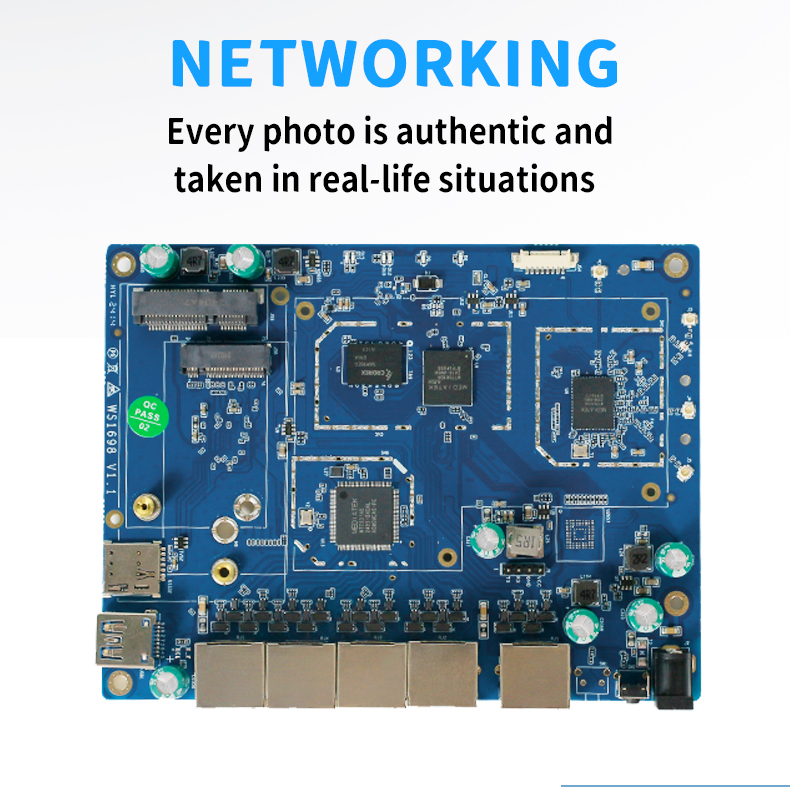

Hardware Description

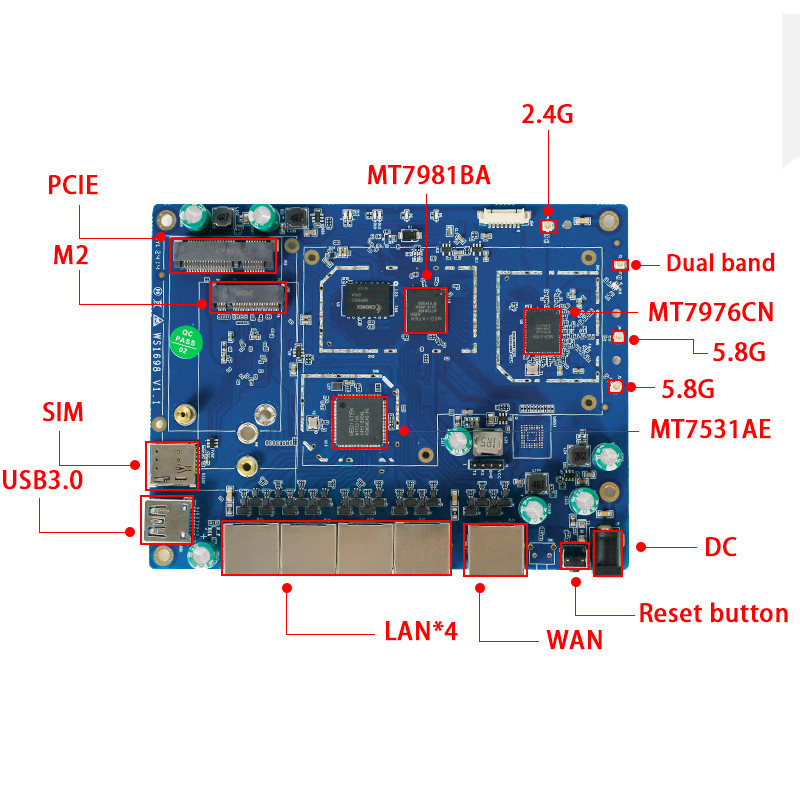

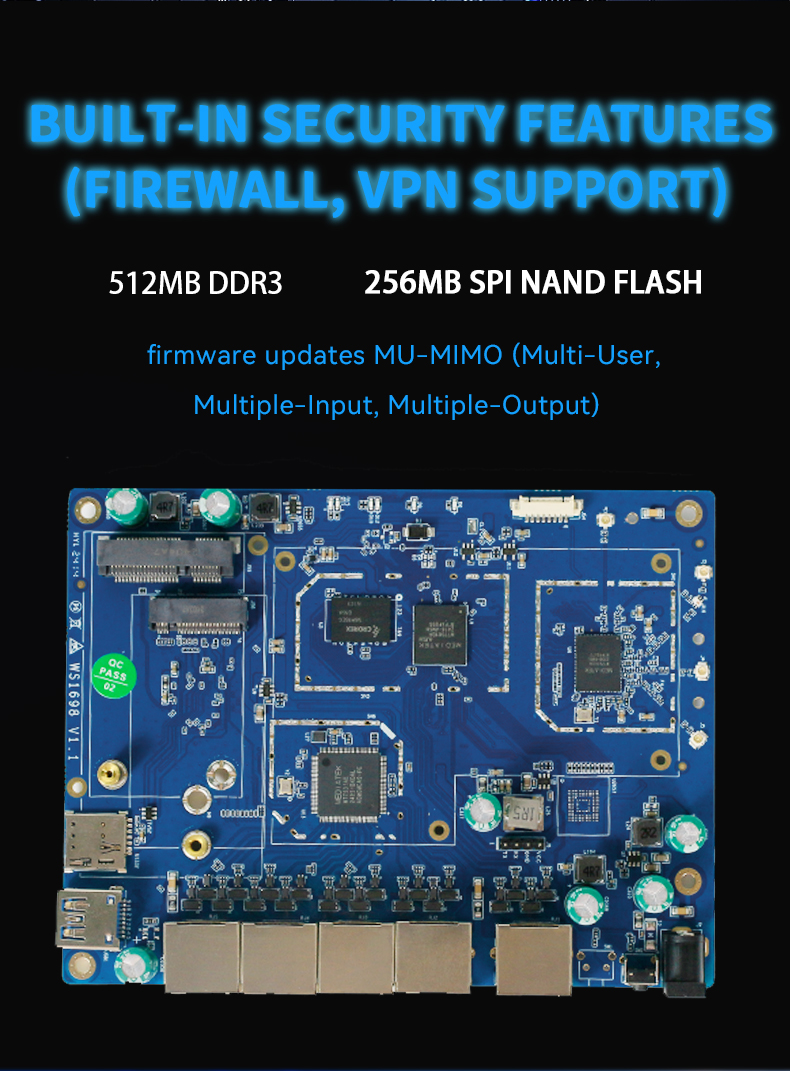

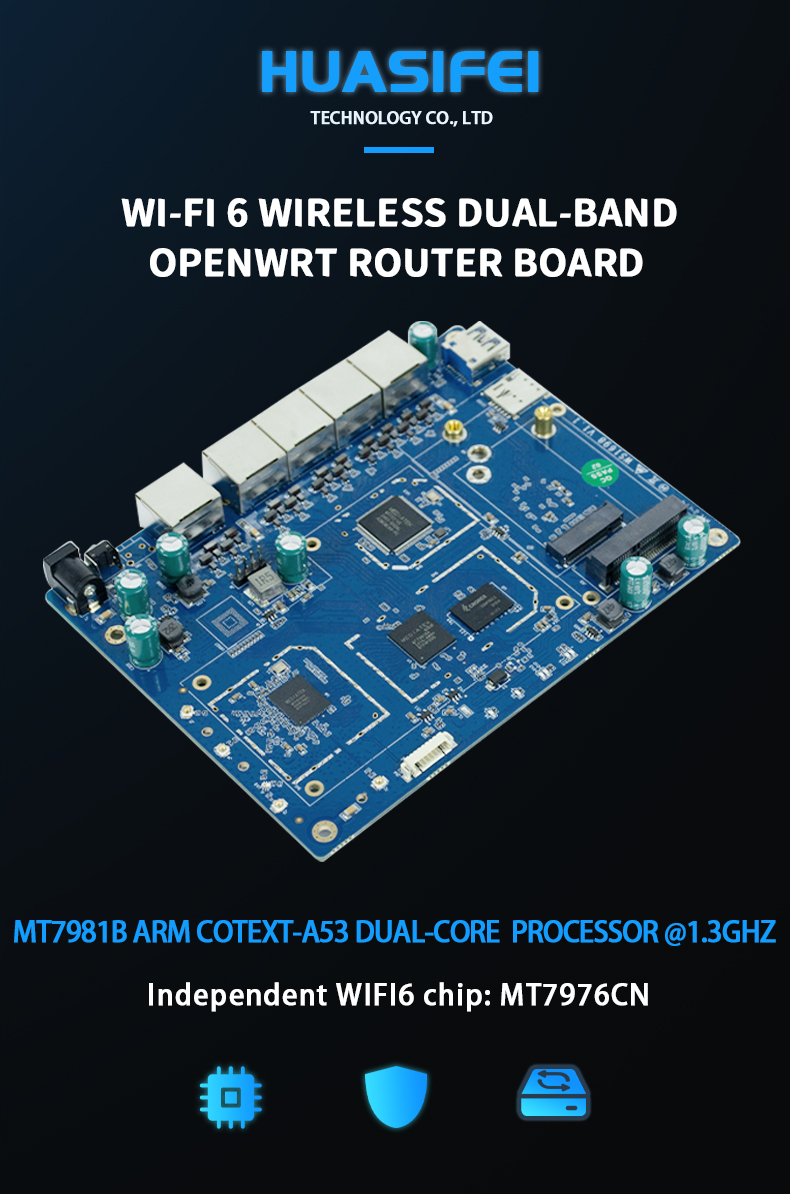

Adopt MT7981B main chip, main frequency up to 1.3GHZ; With independent MT7976CN WIFI6 chip,total speed up to 3000Mbps; High-speed 512 DDR3, with 256MB SPI Nand Flash(16GB EMMC optional)

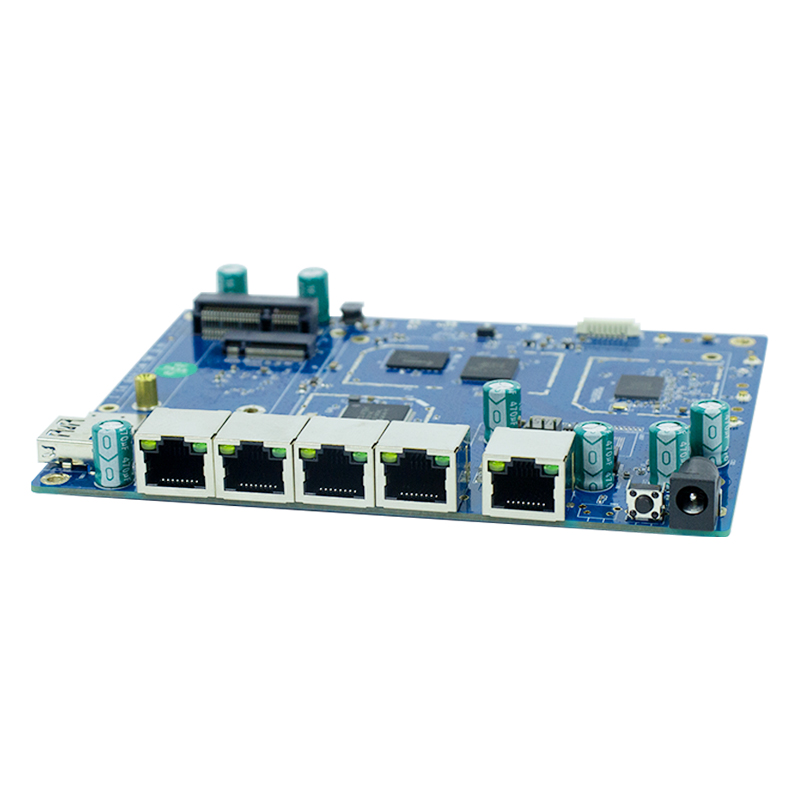

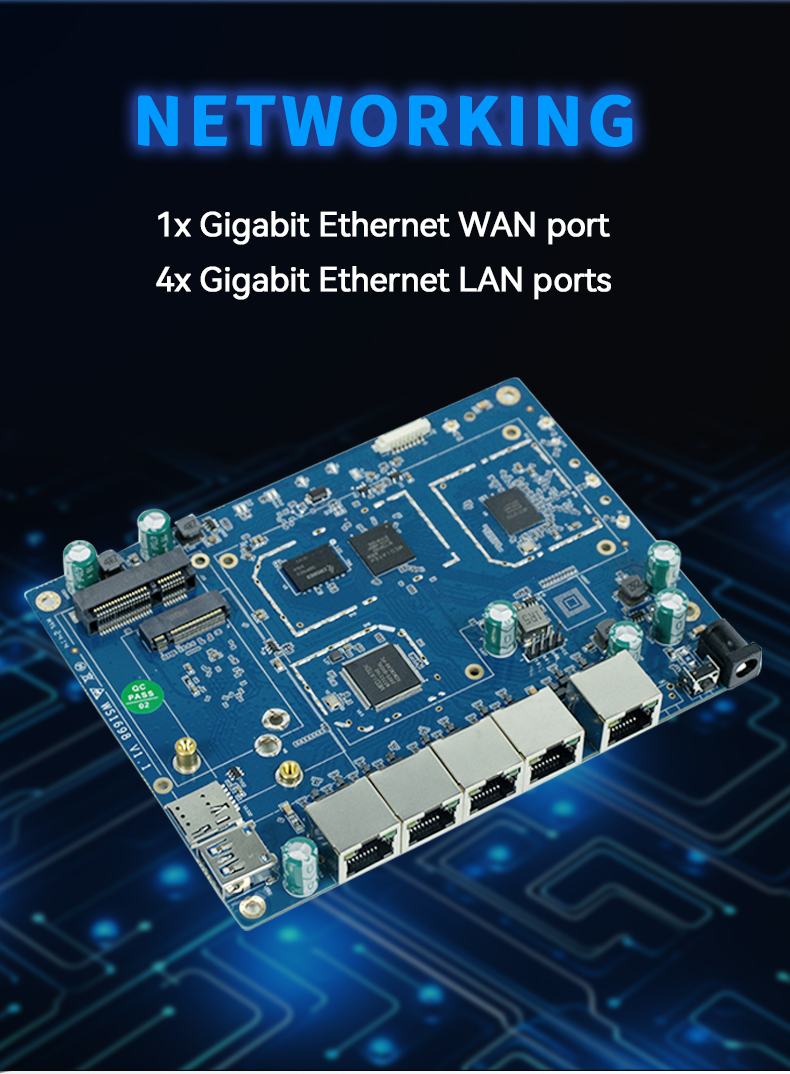

1WAN+4LAN 1000Madaptive network port ;

Support “one-key flashing mode”, long press the reset button to enter the recovery mode;
Support “one key ” MESH network;
Built-in M.2 interface and PCIE interface for installing 5G cellular modules;
External standard Nano SIM card slot ,also built-in eSIM card slot;

specification

WS1698 Hardware Specifications
Hardware Specifications	MT7981B+MT7976CN+MT7531AE Dual Core 1.2GHZ DDR3 memory 512MB SPI NAND FLASH 256MB(16GB EMMC optional)
WIFI Chip	MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps
Protocol Standards	IEEE802.11n/g/b/a/ac/ax,IEEE802.3/802.3u
Wireless Rate	Dual-band concurrent up to 3000Mbps
Operating band	2.4GHz 5.8GHz
4G 5G Modem	4G or 5G modules can be selected, and the frequency band can be selected,Support Cat4/6/12/16/20
Output Power	11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm 11AX: 19dBm±1dBm
Receiving sensitivity	11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm 11AX VHT20 MCS8: -66dBm
Antenna	4 x 7dbi high gain omni-directional wifi antennas, 4 x 5dbi high gain omni-directional 4G5G antennas
Interface	110/100M/1000M WAN port with automatic MDI/MDIX with LED 410/100M/1000M LAN ports, auto MDI/MDIX with LED 1USB 3.0 port 1PCI-E 1M.2 1SIM card 1*SD card(SMD SD memory card)
LED	Power/WIFI/4G/5G
Button	1 Reset button,1 MESH button
Power adapter	DC 12/3000mA
Maximum power consumption	< 24W
Color scheme	Black
Accessories and Packaging	Egg separator paper tray 32216cm 1PCS Whole box: 43.128.534.8 10PCS Power adapter 12V/2A 1PCS Super Category 5 network cable *1PCS

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.

Industrial Router

Home Router

Outdoor Wireless

Industrial Switch

The 5G Wi-Fi 6 router has remarkable features and is well recognized by the market!

Hotel wireless network construction plan

Scenic area wireless network construction plan

Rural wireless network coverage solution

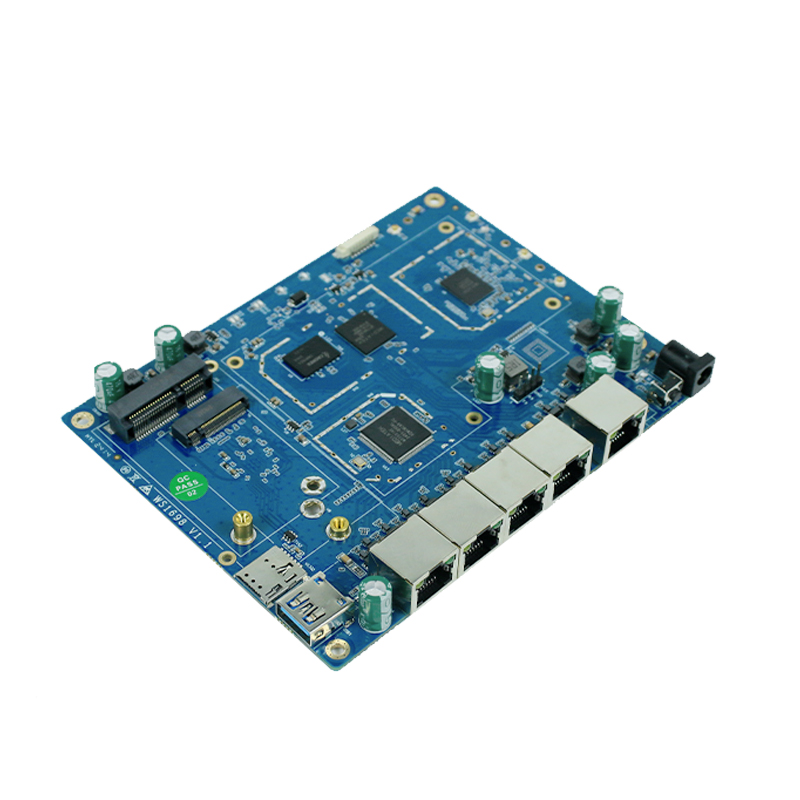

WS1698 Wifi6 5g Wireless Router PCBA

HUASIFEI Dual Band Gigabit Wifi6 5g Wireless Router PCBA Chip MT7981B+MT7976 5g Router Sim Card

Description

specification

FAQ

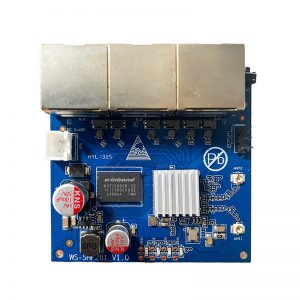

SHF285 2.54 Pitch 4Pin Interface 4G router PCBA
