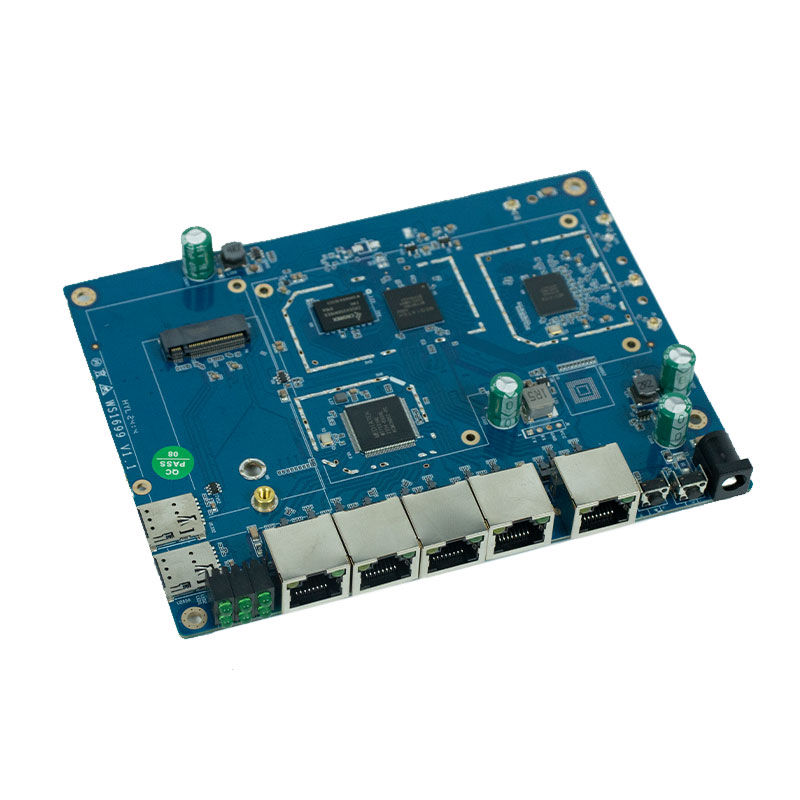

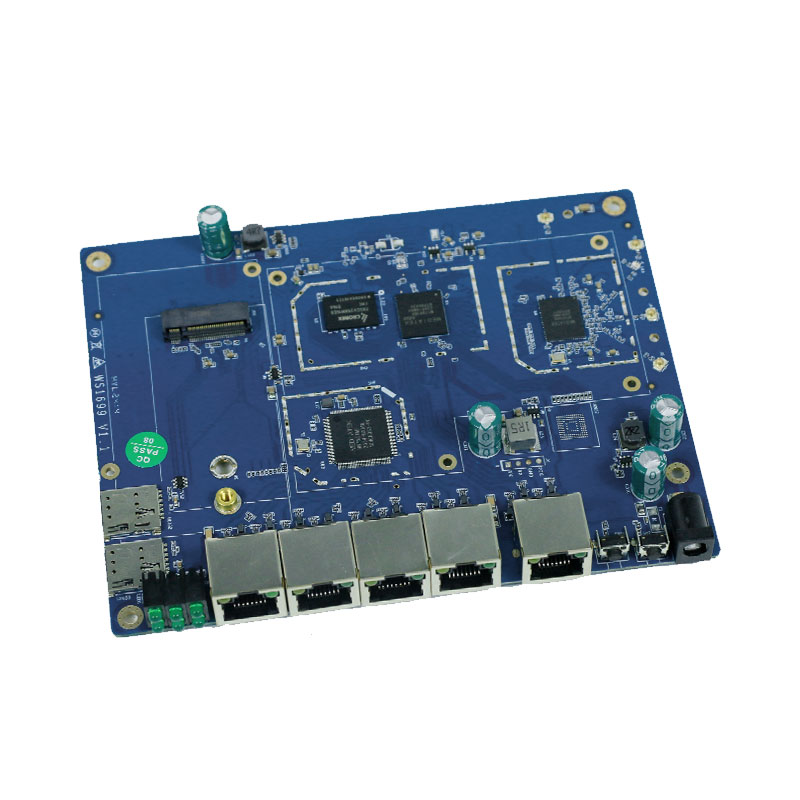

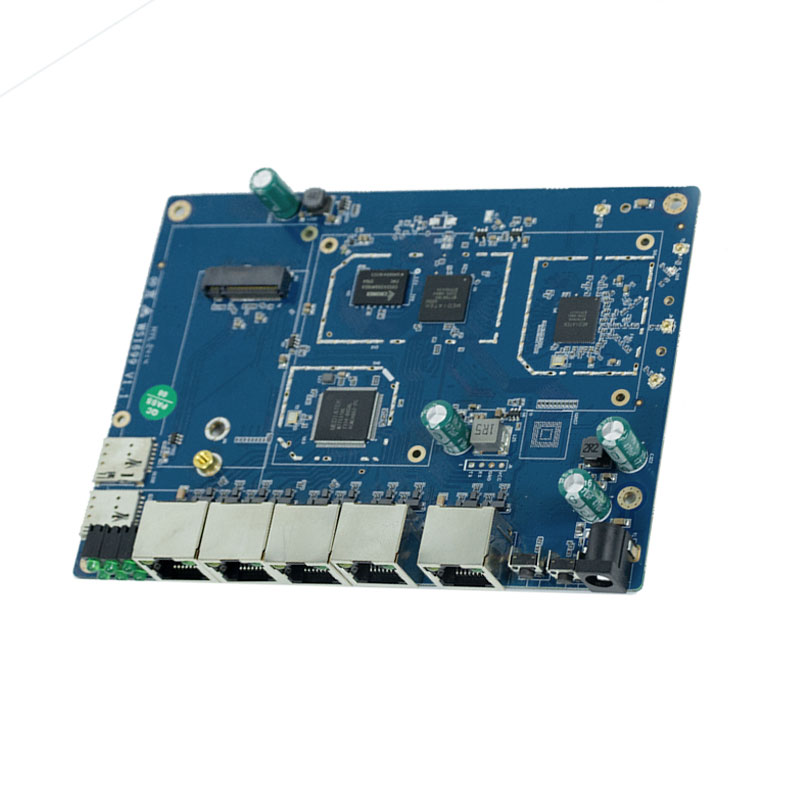

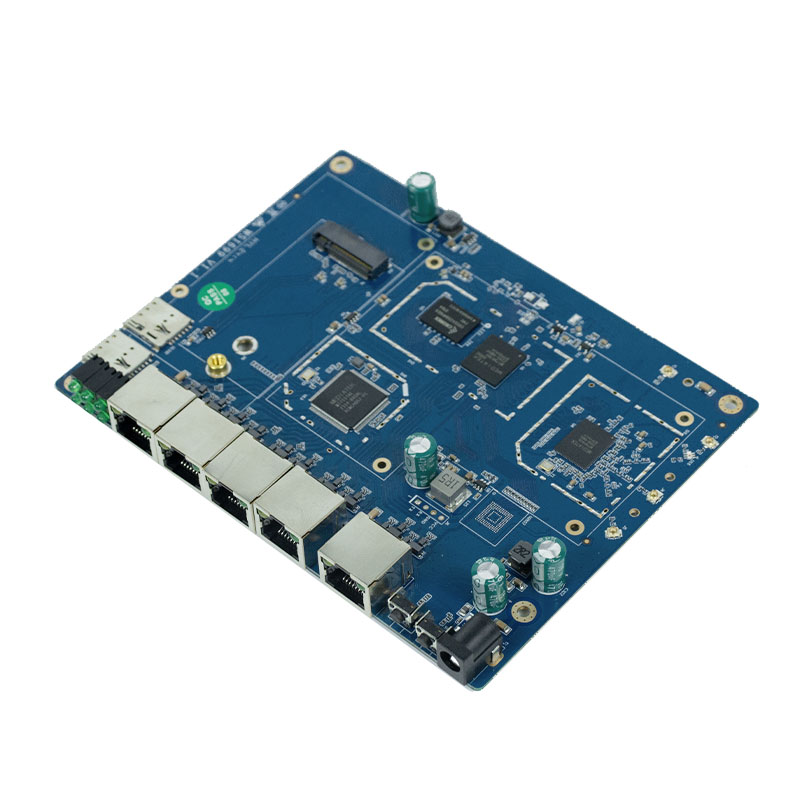

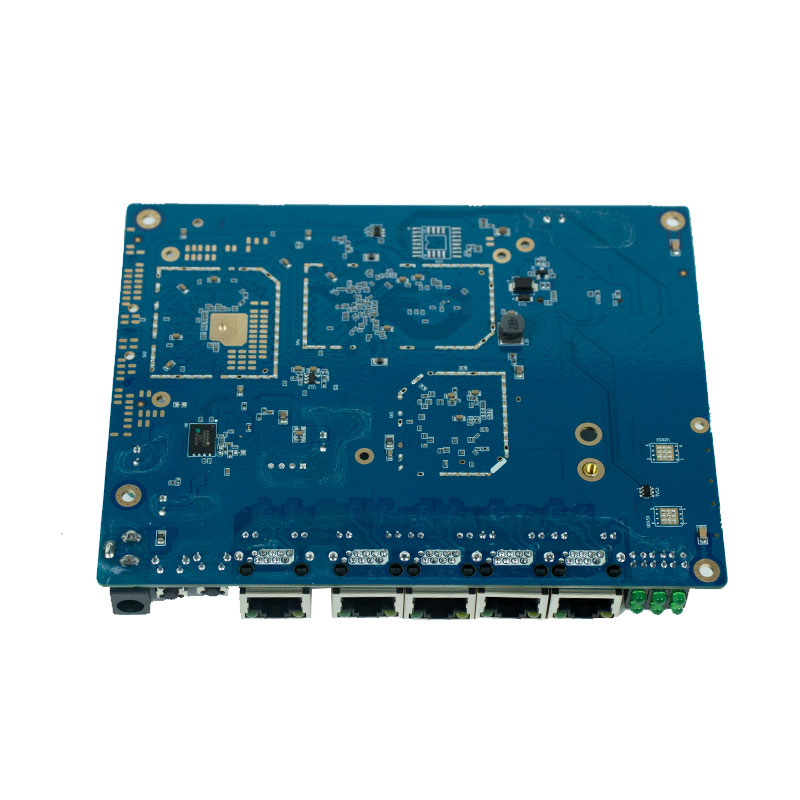

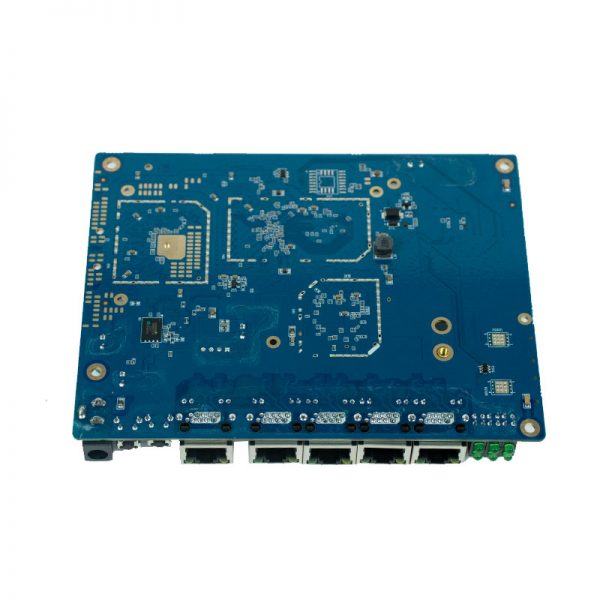

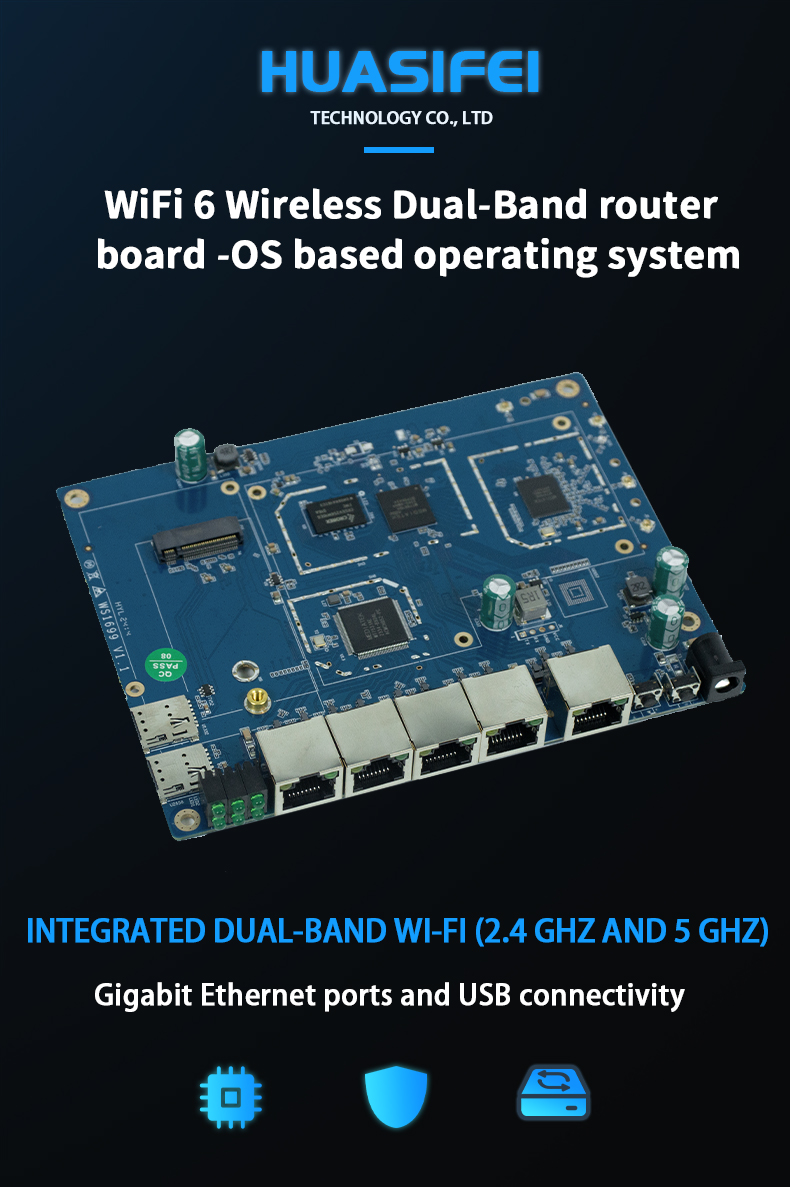

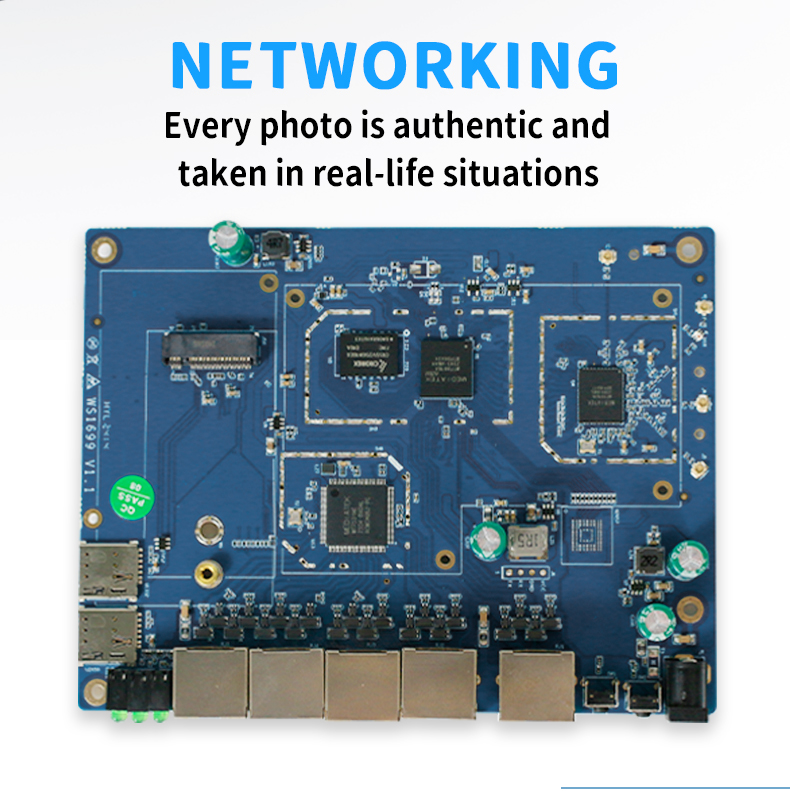

WS1699 5g Wireless Router PCBA

Unlocked Dual Band 5g Wireless Router PCBA Chip MT7981B 3000Mbps 5g Cpe Router with Dual SIM Slot

Facebook Twitter Youtube

Description

The 5G WiFi6 router is based on a new embedded platform to meet the growing demand for mobile devices.
  The CPE is NSA/SA dual-mode compatible for all network types worldwide, which means you can enjoy ultra-fast broadband connectivity wherever you are by simply plug-and-playing.Enjoy an ultra-fast broadband connection anywhere.
  CPE brings new ways to experience VR/AR/4K/8K streaming freely and easily. Built-in 802.11ax (Wi-Fi 6) Technology, Single CPE With built-in 802.11ax (Wi-Fi 6) technology, a single CPE delivers more wireless coverage and more bandwidth. At the same time, CPE also brings higher security, better network
Hardware Description

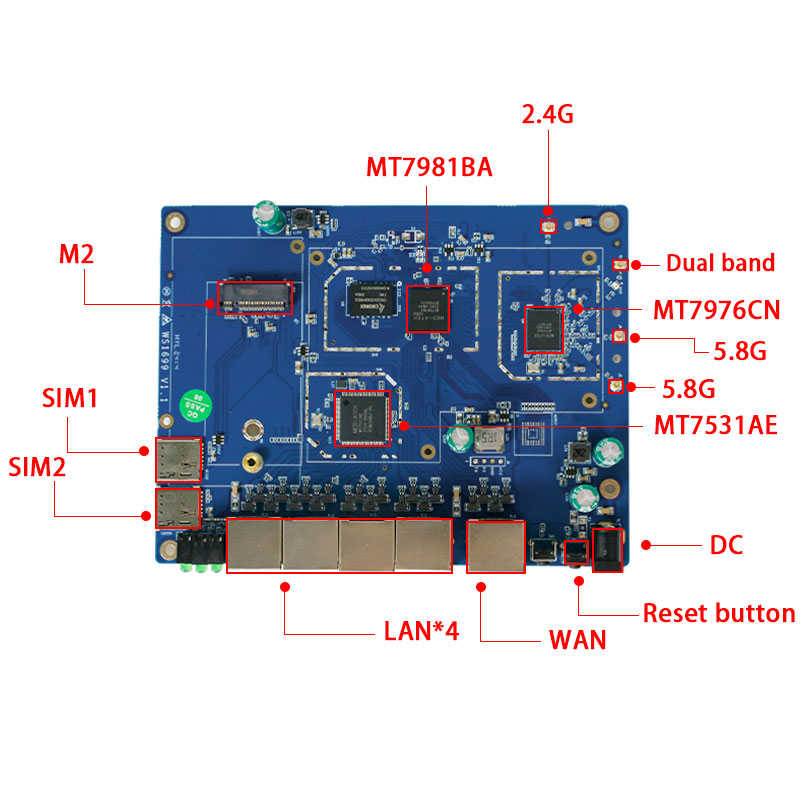

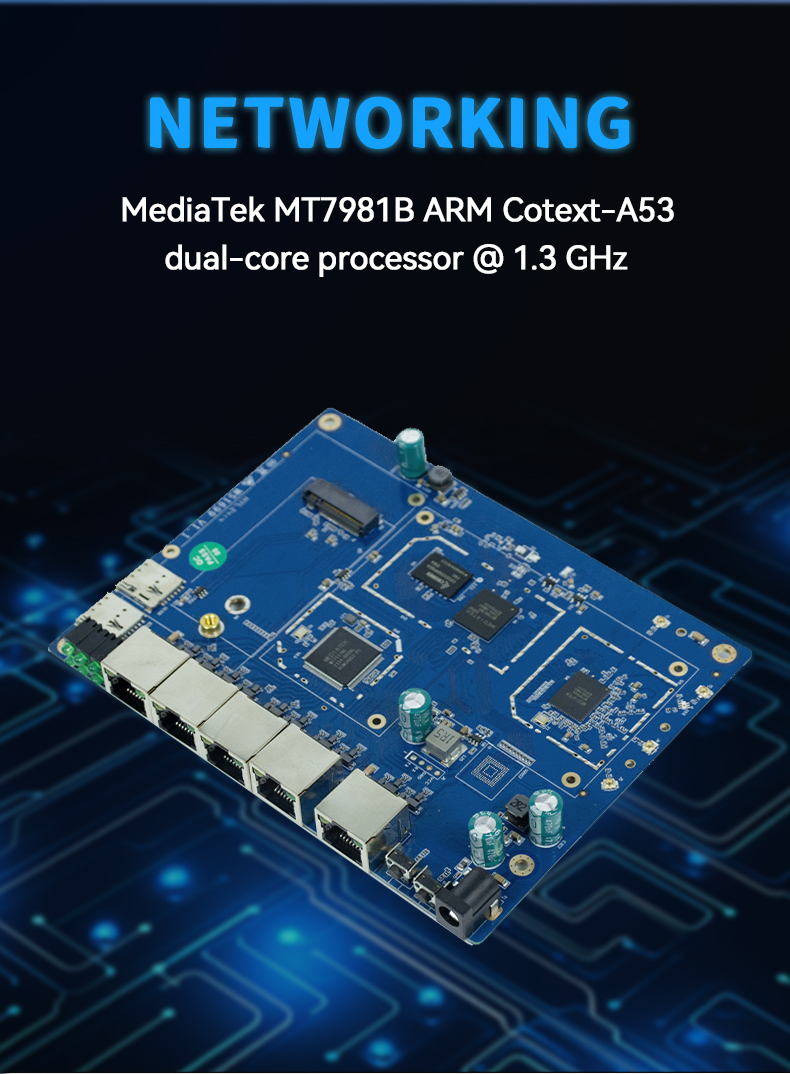

Adopt MT7981B main chip, main frequency up to 1.3GHZ; With independent MT7976CN WIFI6 chip,total speed up to 3000Mbps; High-speed 512 DDR3, with 256MB SPI Nand Flash
1WAN+4LAN 1000Madaptive network port ;
Support “one-key flashing mode”, long press the reset button to enter the recovery mode;
Built-in M.2 interface for installing 5G cellular modules;;
External standard Nano SIM card slot ,Reserve Esim design and customize according to customer needs

specification

WS1699 Hardware Specifications
Hardware Specifications MT7981B+MT7976CN+MT7531AE Dual Core 1.2GHZ

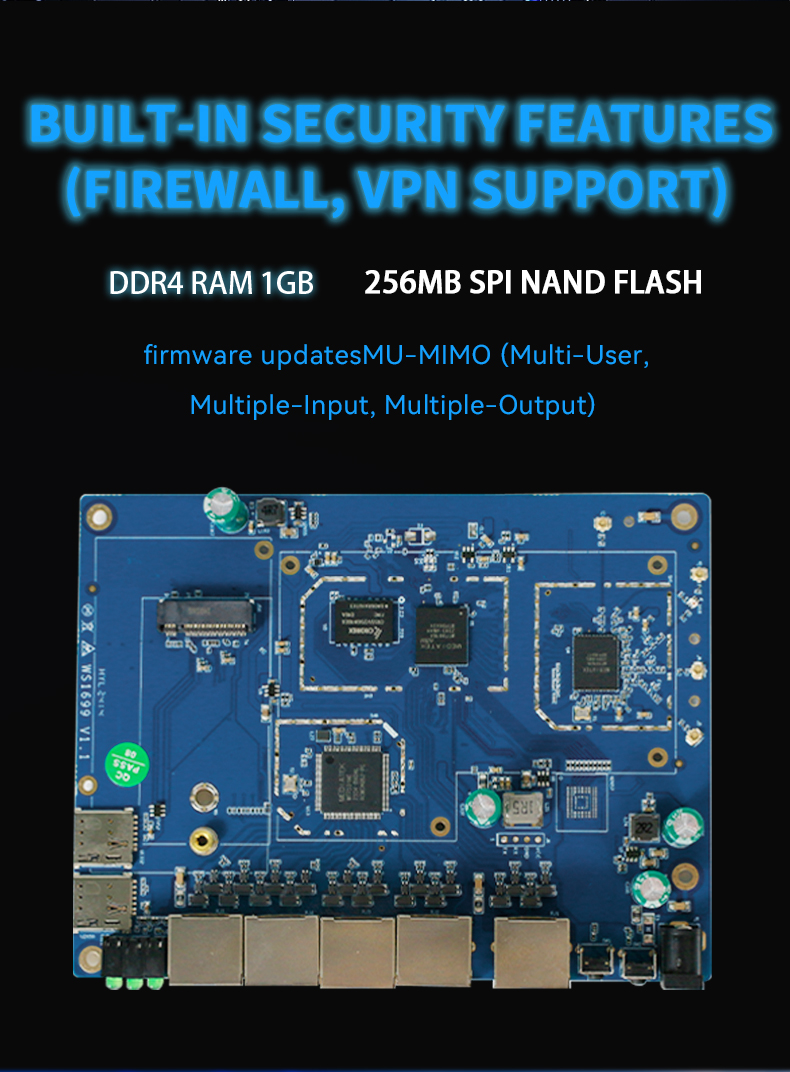

DDR3 memory 512MB

SPI NAND FLASH 256MB
WIFI Chip MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps
Protocol Standards IEEE802.11n/g/b/a/ac/ax,IEEE802.3/802.3u
Wireless Rate Dual-band concurrent up to 3000Mbps
Operating band 2.4GHz 5.8GHz
4G 5G Modem 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)

5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)

LTE : Down 1.0 Gbps;UP 200 Mbps
5G SA Sub-6

5G NSA Sub-6

LTE

WCDMA

 DL 2 Gbps; UL 1000 Mbps

DL 2.6 Gbps; UL 650 Mbps

DL 600 Gbps; UL 150 Mbps

DL 42 Mbps; UL 11 Mbps
Output Power 11n:17dBm±1dBm

11g: 17dBm±1dBm

11b: 19dBm±1dBm

11a: 19dBm±1dBm

11ac: 18dBm±1dBm

11AX: 19dBm±1dBm
Receiving sensitivity 11N HT20 MCS7: -72dBm

11N HT40 MCS7: -69dBm

11G 54Mbps: -74dBm

11B 11Mbps: -86dBm

11A 54Mbps: -73dBm

11AC VHT20 MCS8: -66dBm

11AX VHT20 MCS8: -66dBm
Interface 1*10/100M/1000M WAN port with automatic MDI/MDIX with LED

4*10/100M/1000M LAN ports, auto MDI/MDIX with LED

1*M.2

2*SIM card
LED Power/WIFI/4G/5G
Button 1 Reset button,
Power adapter DC 12/3000mA
Maximum power consumption < 24W

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
